Air Lift LoadLifter 7500 XL Ultimate Rear Air Spring Kit | 2023-2026 Ford F-250/F-350 Super Duty SRW 2WD/4WD | 7,500 lb Load Support | 57554
Sale price
$762.99
Regular price $841.99
Skip to product information
Air Lift LoadLifter 7500 XL Ultimate Rear Air Spring Kit | 2023-2026 Ford F-250/F-350 Super Duty SRW 2WD/4WD | 7,500 lb Load Support | 57554
Sale price
$762.99
Regular price $841.99
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2023-2026 Ford F-250/F-350 Super Duty 2WD/4WD
Does not fit: Tremor, Factory lift packages
Single rear wheel (SRW) trucks only
Why the LoadLifter 7500 XL Ultimate

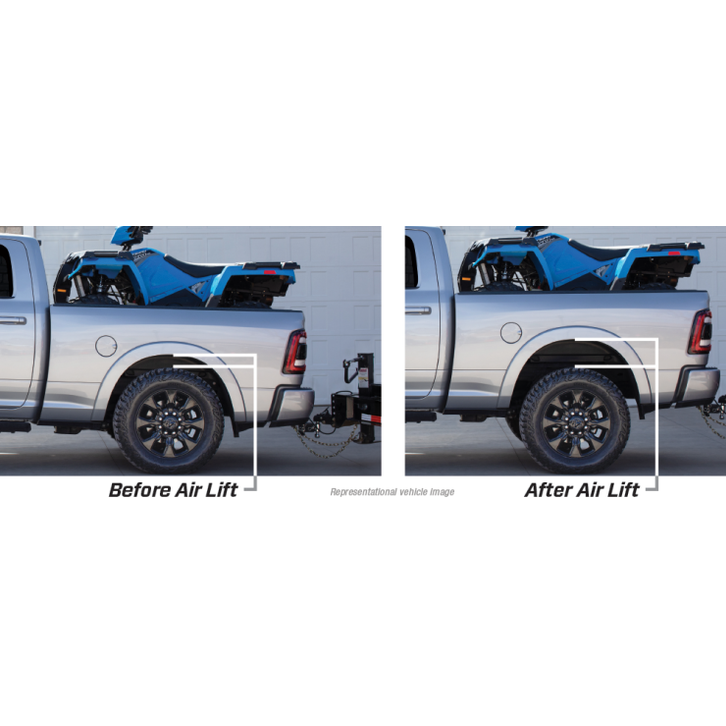

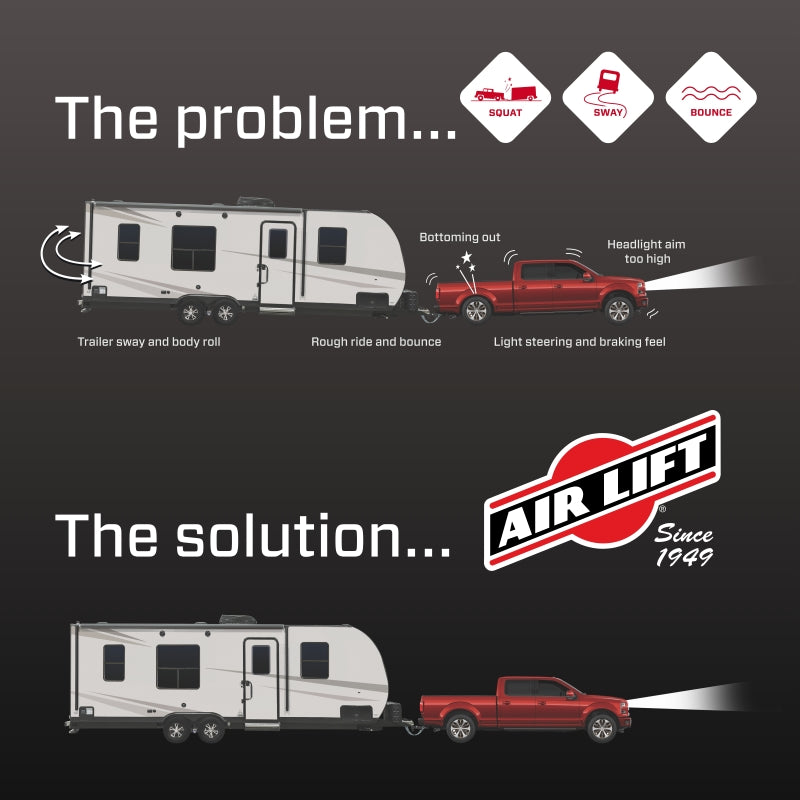

3/4-ton and 1-ton trucks carrying slide-in campers, fifth-wheel or gooseneck trailers, or heavy tongue weight where a 5,000 lb kit runs out of headroom. The Air Lift LoadLifter 7500 XL Ultimate bolts between the frame and the rear axle on your 2023-2026 Ford F-250/F-350 Super Duty SRW and adds up to 7,500 lb of adjustable load-leveling support. Add air when you hook up the trailer or load the bed to stop rear squat, trailer sway, headlight aim drift and bottoming out; bleed it off when you are empty for a stock ride. An internal jounce bumper inside each air spring cushions the axle and lets the kit run safely at 0 PSI when the truck is unloaded.
At a glance
| Load-leveling capacity | Up to 7,500 lb (never exceed the truck's GVWR) |
|---|---|
| Pressure range | 5 to 100 PSI |

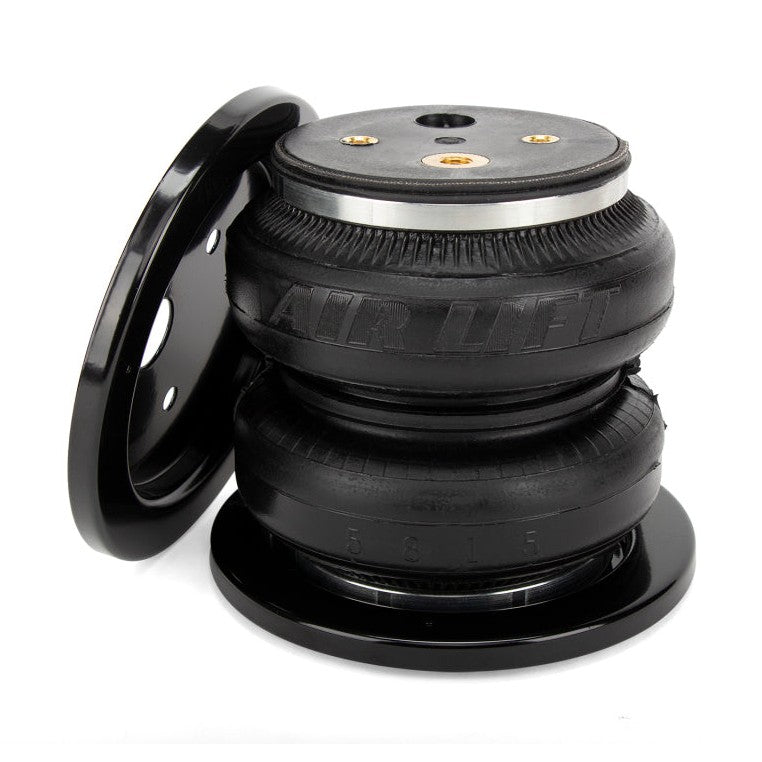

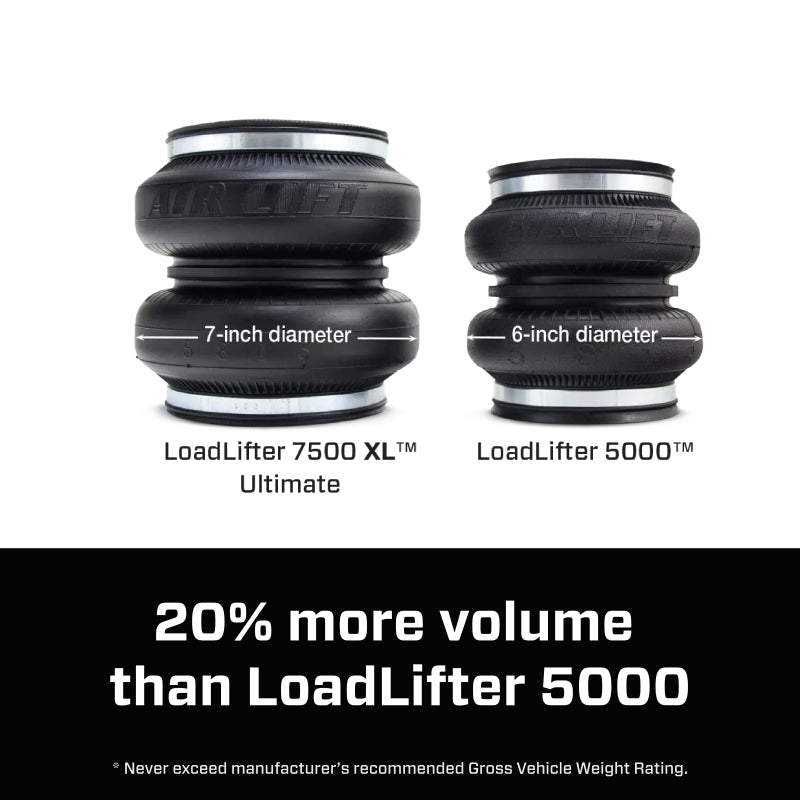

| Air spring | Double-bellows, up to 20% more air volume than LoadLifter 5000 |
| Position | Rear |
| Works with | Factory rear suspension (helper spring, keeps the OE springs) |

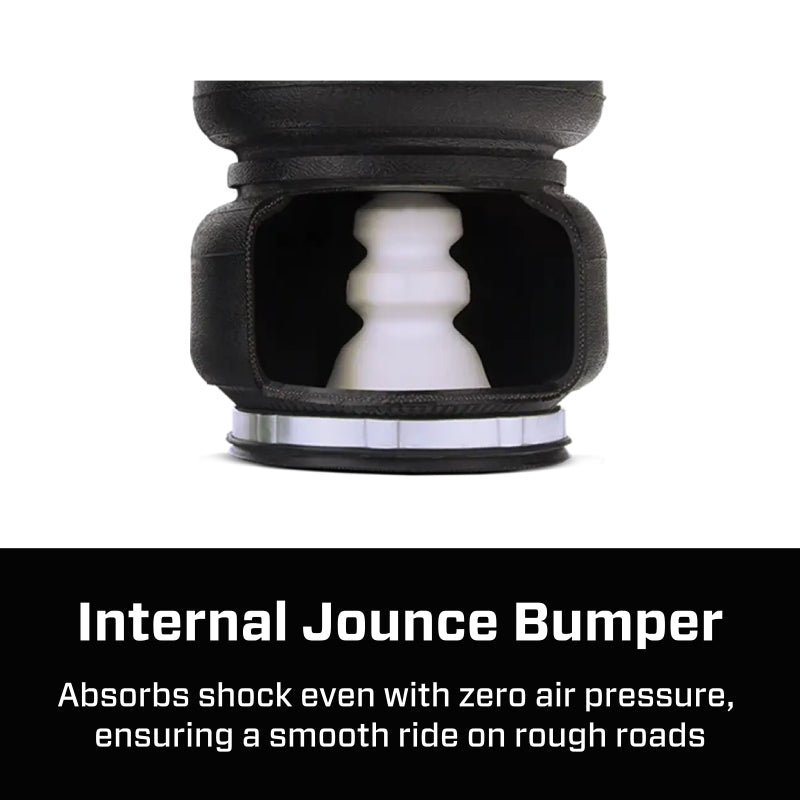

| Internal jounce bumper | Yes, safe at 0 PSI unloaded |
| Frame drilling | Some drilling may be required, see instructions |
| In-bed hitch | Compatible with in-bed fifth-wheel and gooseneck hitches |
| Warranty | Lifetime warranty on the air springs plus a 60-day ride satisfaction guarantee |

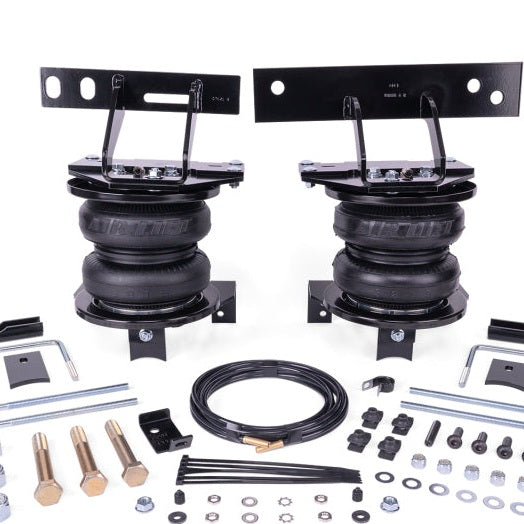

What is in the box

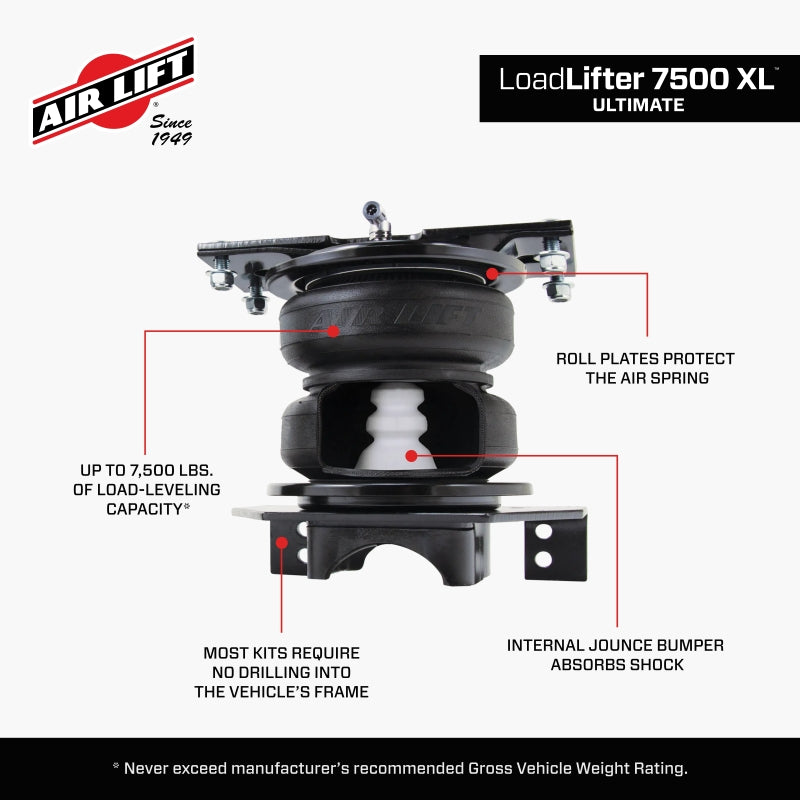

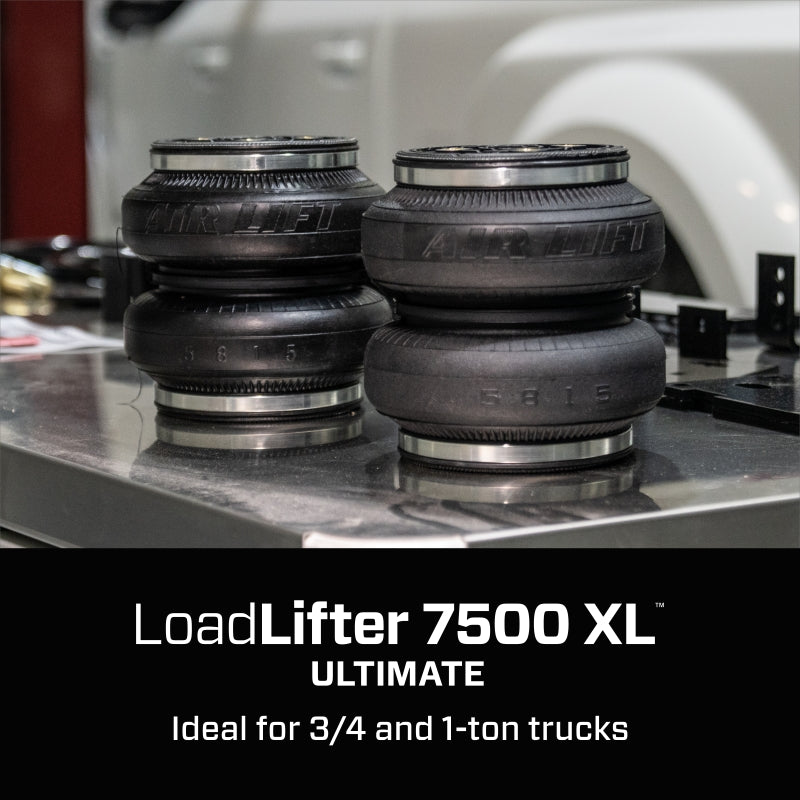

- Two Air Lift air springs with roll plates

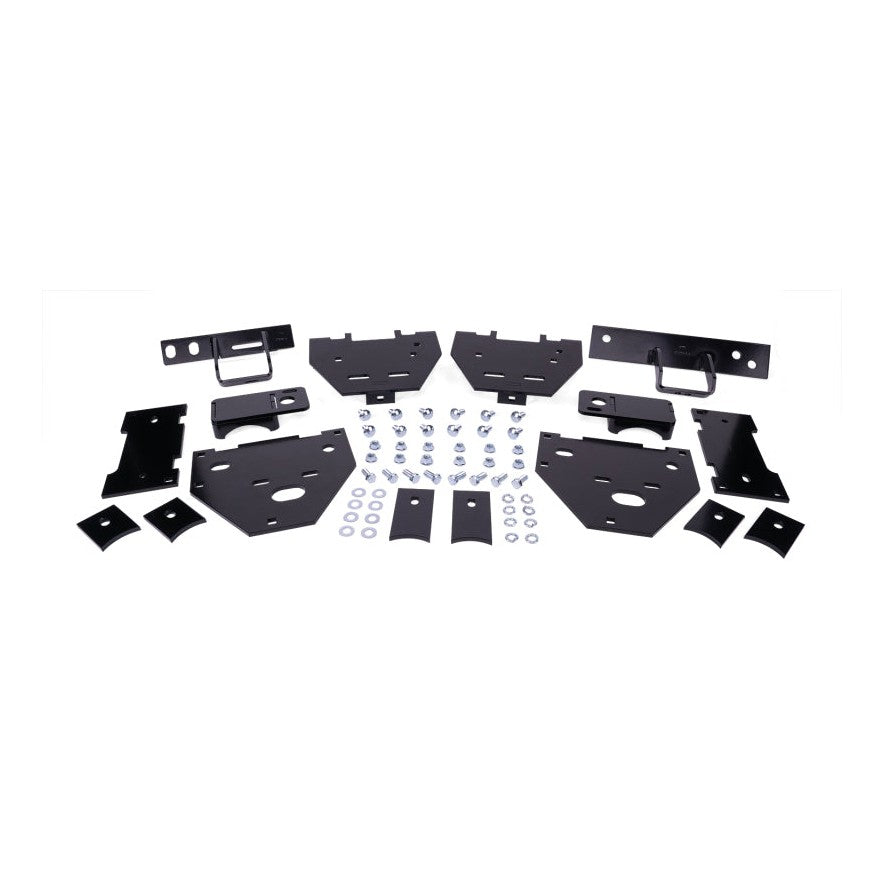

- Upper and lower mounting brackets and hardware for this application
- Air line, Schrader inflation valves and fittings
- Fully illustrated installation manual
Manufacturer part number 57554. Designed, engineered and assembled by Air Lift in Lansing, Michigan.
Questions
Does this kit increase my payload or towing rating?
No. Air springs level the truck and stop squat within the weight the manufacturer already rates it for. GVWR, axle, tire and hitch ratings do not change.
Do I need an onboard compressor?
No. The kit includes Schrader valves so you can air up at any gas station or with a portable compressor. An Air Lift LoadController or WirelessAir system lets you adjust from the cab and is the most common add-on.
Can I run the springs empty when the truck is unloaded?
An internal jounce bumper inside each air spring cushions the axle and lets the kit run safely at 0 PSI when the truck is unloaded. Onboard compressor systems hold a 5 PSI minimum regardless.
Will it lift my truck?

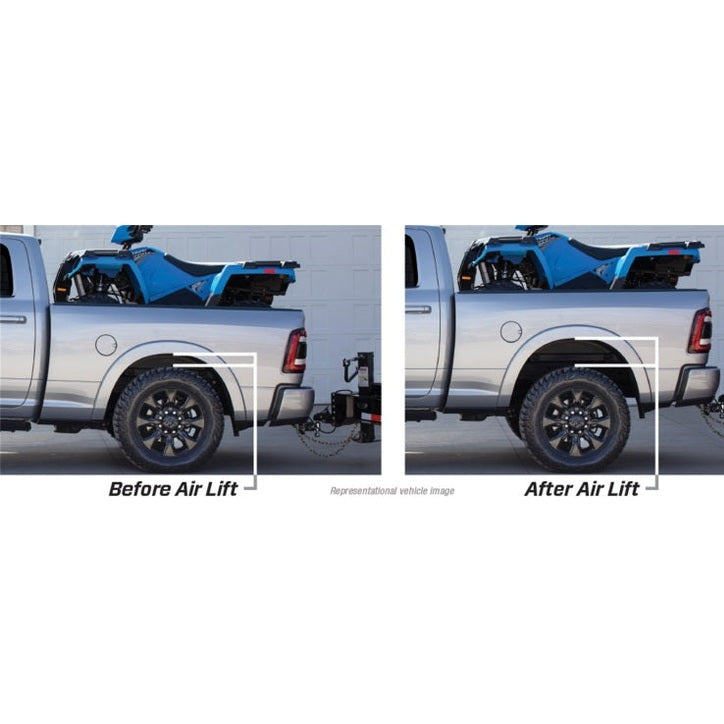

It is not a lift kit. At low pressure ride height is essentially stock; more pressure raises the loaded rear end back to level. Running high pressure unloaded will sit the rear up and stiffen the ride.
Does it work with a fifth-wheel or gooseneck hitch?
Compatible with in-bed fifth-wheel and gooseneck hitches.
How long does installation take?
Most owners finish in one to two hours with common hand tools. Check the included instructions for the bracket that applies to your truck. Detailed illustrated instructions are in the box.
Air Lift load support lines
| Kit | Suspension | Capacity | Jounce bumper |
|---|---|---|---|
| Air Lift 1000 / 1000HD | Coil-sprung trucks | 1,000 / 2,100 lb | No |
| RideControl | Leaf spring, light duty | 2,000 lb | No |
| LoadLifter 5000 | Leaf spring, heavy duty | 5,000 lb | No |
| LoadLifter 5000 Ultimate | Leaf spring, heavy duty | 5,000 lb | Yes |
| LoadLifter 5000 Ultimate Plus | Leaf spring, stainless hardware | 5,000 lb | Yes |
| LoadLifter 7500 XL Ultimate | 3/4-ton and 1-ton, heaviest loads | 7,500 lb | Yes |
About Air Lift
Air Lift has built air spring load support since 1949 and backs every air spring with a lifetime warranty and a 60-day ride satisfaction guarantee. Hannah Suspension ships genuine Air Lift kits with full factory warranty.
