Air Lift LoadLifter 5000 Ultimate + LoadController Tow Kit | 2023-2026 Ford F-250/F-350 Super Duty SRW 2WD/4WD | 5,000 lb
$1,051.98
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2023-2026 Ford F-250/F-350 Super Duty 2WD/4WD, single rear wheel (SRW), stock rear suspension
Does not fit: Dual rear wheel (DRW) trucks, Tremor, factory lift packages, 2022 and older trucks
Why this kit
Air Lift sells the springs and the compressor as separate part numbers, so most buyers end up ordering twice or installing bags with a Schrader valve and a gas station hose. This kit puts the two halves together at the value price point: the LoadLifter 5000 Ultimate rear air springs for the 2023-2026 single-rear-wheel Super Duty, rated to level up to 5,000 lb of pin weight or payload, and the LoadController single-path heavy duty compressor with a dash-mounted gauge and switch. Both springs inflate together from the cab, which is all a centered trailer or camper load needs. The Ultimate springs carry an internal jounce bumper so they can run at zero pressure when the truck is empty without damage.
At a glance
| Kit contents | Rear air spring kit + single-path onboard compressor system |
|---|---|

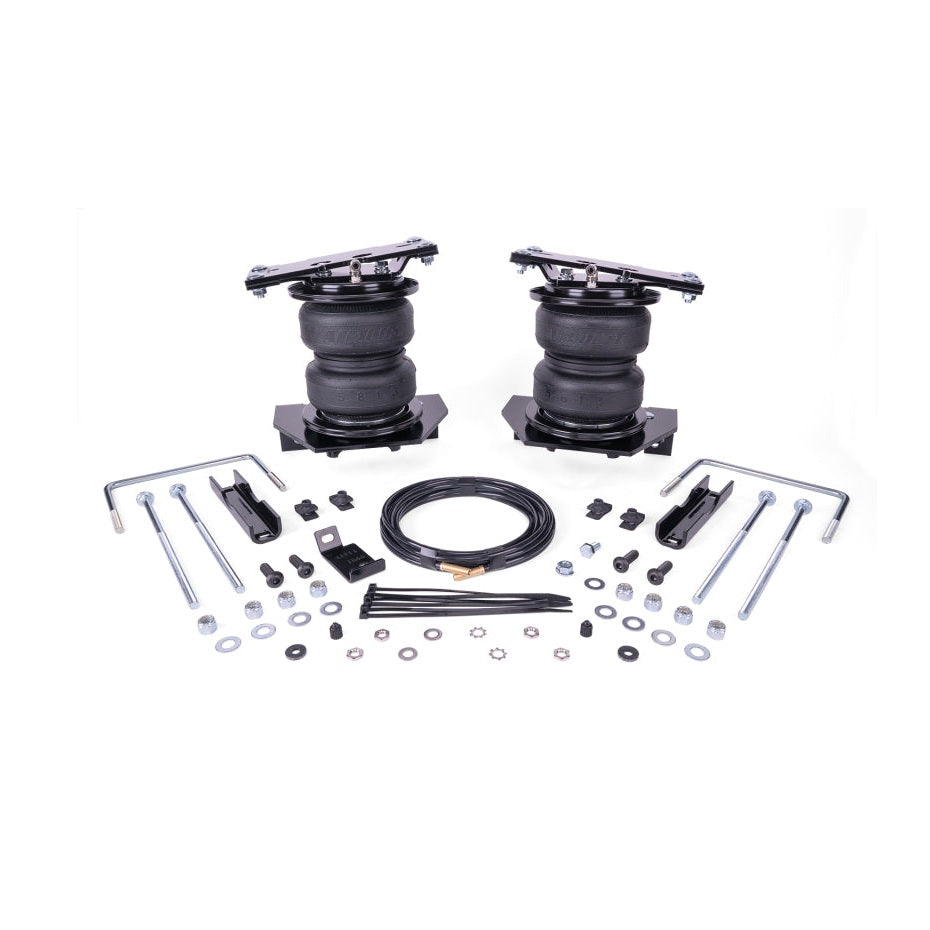

| Air springs | Air Lift LoadLifter 5000 Ultimate 88354, 5,000 lb leveling capacity, 5 to 100 psi |

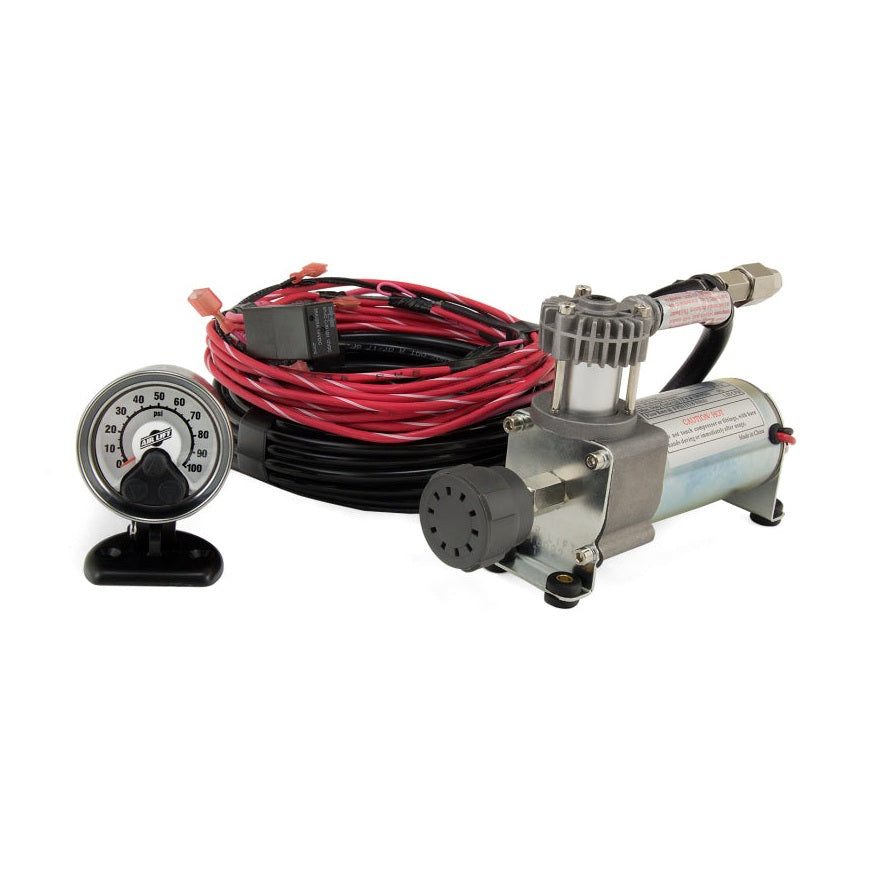

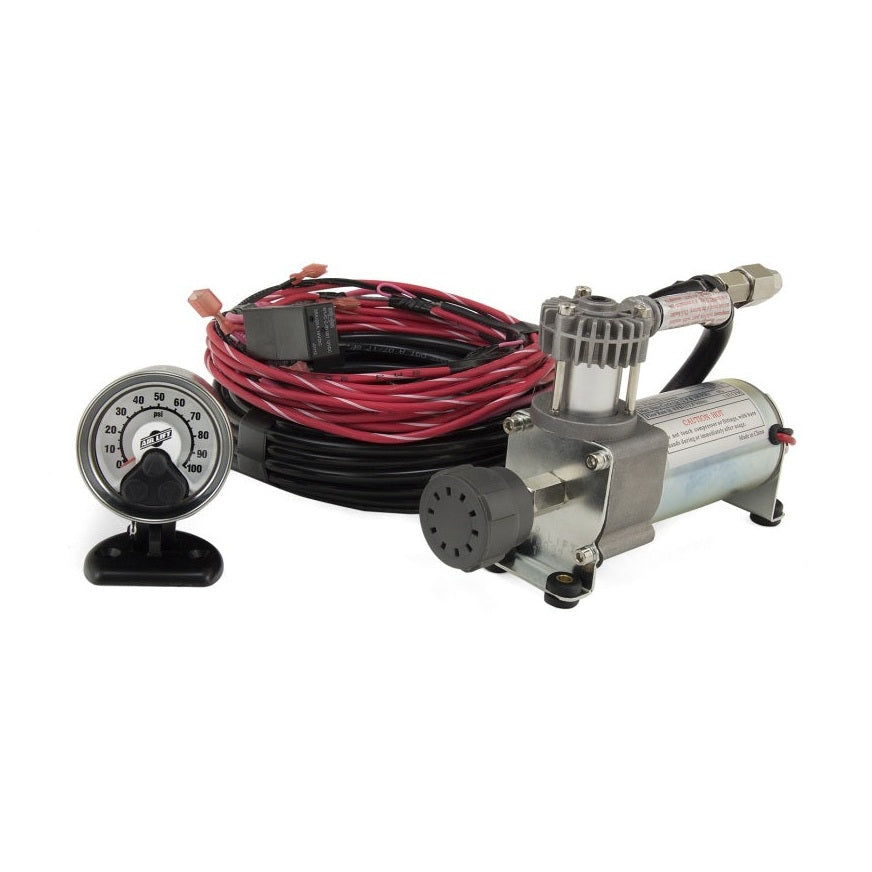

| Compressor | Air Lift LoadController Single Path Heavy Duty 25854, in-cab analog gauge and switch |
| Position | Rear |
| Drivetrain | 2WD and 4WD, SRW only |
| Warranty | Air springs: limited lifetime. Compressor system: 2 years (Air Lift) |
What is in the box
- 1 x Air Lift LoadLifter 5000 Ultimate kit 88354: two air springs with internal jounce bumpers, brackets, air line, fittings, hardware
- 1 x Air Lift LoadController Single Path HD 25854: heavy duty compressor, dash gauge with inflate/deflate switch, wiring harness, air line and fittings
- Instructions for both
Each part ships in its own Air Lift box. Kit price equals the sum of the two parts.
Questions
Single path or dual path?
Single path inflates both springs together to the same pressure, which is right for a centered load like a gooseneck or fifth wheel. If your load sits off to one side, the WirelessAir V2 version of this kit runs each side independently.
I have a dually. Which kit?
The 2020-2026 F-350 DRW uses the 88380 spring kit, sold individually. This kit is SRW only.
Does this raise my towing capacity?
No. Air springs level the truck and restore ride height and headlight aim under load. Your GVWR and tow ratings do not change.
How long does installation take?
The springs are a 1 to 2 hour bolt-in on the Super Duty leaf pack. The compressor and gauge are another 1 to 2 hours for mounting, wiring to a fused 12V source and routing air line to the dash.
What is the warranty?
Air Lift covers the air springs with a limited lifetime warranty and the compressor system for 2 years. Warranties are processed through the original place of purchase, so keep your Hannah Suspension order confirmation.
About Air Lift
Air Lift Company has built air helper springs in Lansing, Michigan since 1949 and is the original equipment supplier behind many factory load-leveling systems. The LoadLifter 5000 line is the most widely installed heavy-duty air helper spring in North America. Hannah Suspension ships genuine Air Lift parts with full factory warranty.
