Air Lift LoadLifter 5000 Ultimate + WirelessAir V2 Tow Kit | 2019-2026 Ram 1500 4WD | 5,000 lb
$1,580.98
Skip to product information
Air Lift LoadLifter 5000 Ultimate + WirelessAir V2 Tow Kit | 2019-2026 Ram 1500 4WD | 5,000 lb
$1,580.98
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2019-2026 Ram 1500 4WD (DT body), coil-spring rear, without factory air suspension
Does not fit: Trucks with the factory 4-corner air suspension option, Ram 1500 Classic (DS body), 2WD, TRX
Why this kit
The fifth-generation Ram 1500 rides beautifully empty because of its coil-spring rear, and that same coil rear squats hard the moment a trailer or camper goes on. Air Lift sells the springs and the compressor as separate part numbers; this kit puts them together: the LoadLifter 5000 Ultimate rear air springs built for the DT coil rear, rated to level up to 5,000 lb, and the WirelessAir V2 dual-path compressor that inflates each side independently from the wireless remote or the Air Lift app. The Ultimate springs have an internal jounce bumper so they can run at zero pressure when the truck is empty and keep that soft Ram ride.
At a glance
| Kit contents | Rear air spring kit + dual-path onboard compressor system |
|---|---|
| Air springs | Air Lift LoadLifter 5000 Ultimate 88375, 5,000 lb leveling capacity, 5 to 100 psi |
| Compressor | Air Lift WirelessAir V2 74000EZ, dual path, EZ Mount pre-assembled, wireless remote + app |
| Position | Rear |
| Drivetrain | 4WD |
| Warranty | Air springs: limited lifetime. Compressor system: 2 years (Air Lift) |
What is in the box
- 1 x Air Lift LoadLifter 5000 Ultimate kit 88375: two air springs with internal jounce bumpers, brackets, air line, fittings, hardware

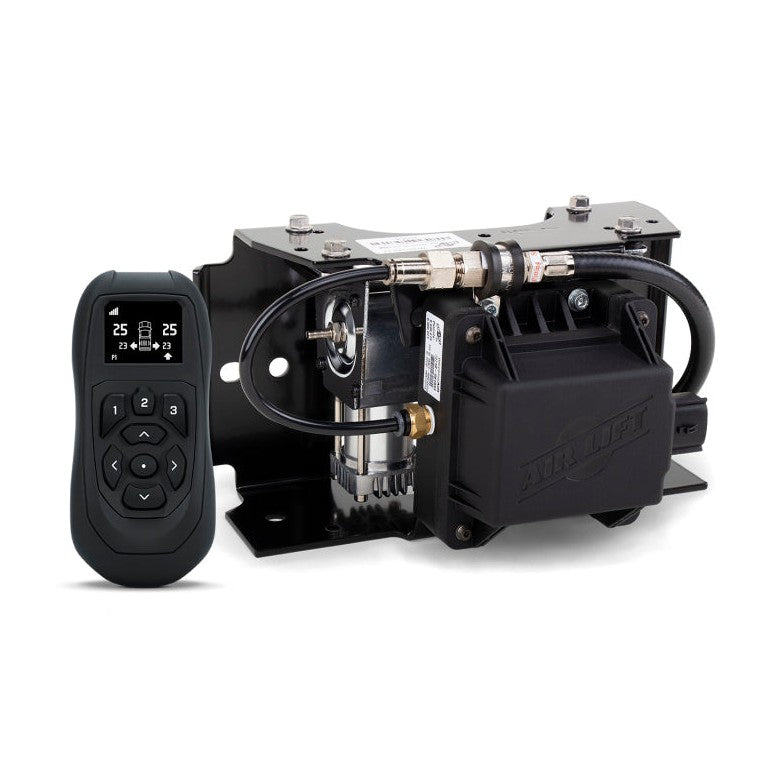

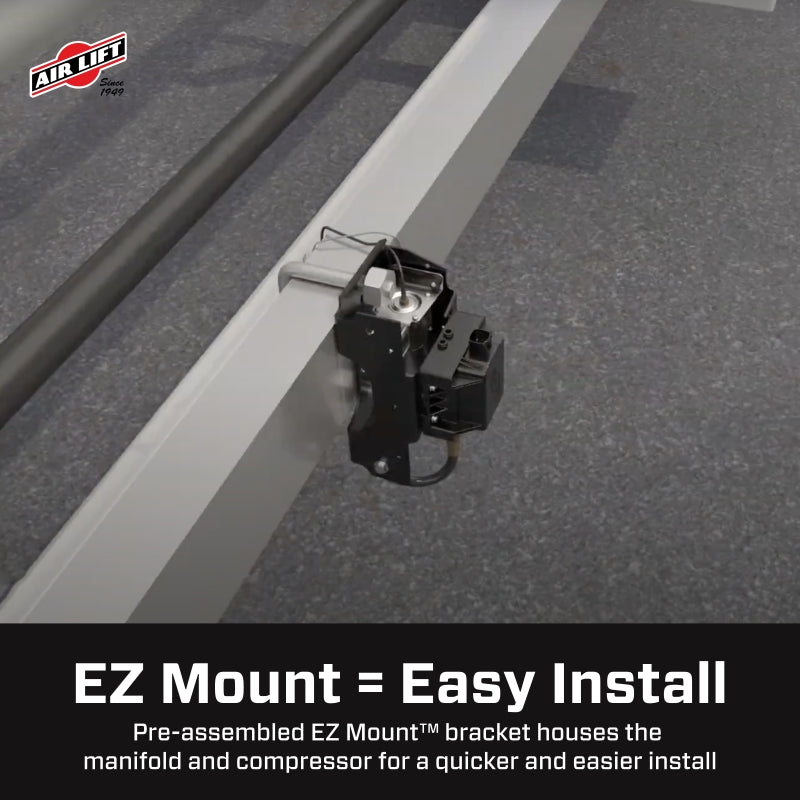

- 1 x Air Lift WirelessAir V2 with EZ Mount 74000EZ: compressor, manifold and controller pre-assembled on one bracket, wireless remote, wiring harness, air line and fittings
- Instructions for both
Questions
My Ram has the factory air suspension. Will this fit?
No. The factory 4-corner air ride uses its own bags and this kit is not listed for it.
Is this the same as the 88377 kit?
No. The 88377 adds an air spring cradle for 2021 and newer trucks and is sold separately. The 88375 in this kit is Air Lift's standard listing for the 2019-2026 Ram 1500 4WD.
Dual path or single path?
Dual path means the left and right springs are on separate circuits and can hold different pressures, which matters with an off-center load. For a centered load a single-path LoadController does the job for less.
Does this raise my payload or tow rating?
No. Air springs level the truck and restore ride height and headlight aim under load. Your GVWR and tow ratings do not change.
What is the warranty?
Air Lift covers the air springs with a limited lifetime warranty and the compressor system for 2 years. Warranties are processed through the original place of purchase, so keep your Hannah Suspension order confirmation.
About Air Lift
Air Lift Company has built air helper springs in Lansing, Michigan since 1949 and is the original equipment supplier behind many factory load-leveling systems. The LoadLifter 5000 line is the most widely installed heavy-duty air helper spring in North America. Hannah Suspension ships genuine Air Lift parts with full factory warranty.
