Bilstein 6112 Front Coilover Kit | 2007-2013 Chevy Silverado 1500 / GMC Sierra 1500 2WD/4WD | 0-1.85 in Lift | 47-310858
Sale price
$923.00
Regular price $1,006.85
Skip to product information
Bilstein 6112 Front Coilover Kit | 2007-2013 Chevy Silverado 1500 / GMC Sierra 1500 2WD/4WD | 0-1.85 in Lift | 47-310858
Sale price
$923.00
Regular price $1,006.85
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2007-2013 Chevy Silverado 1500 2WD/4WD
- 2007-2014 Chevy Tahoe/Suburban 2WD/4WD
- 2007-2013 GMC Sierra 1500 2WD/4WD
- 2007-2014 GMC Yukon 2WD/4WD
Does not fit: Trail Boss, ZR2, AT4, AT4X
Also fits 2007-2014 Chevy Tahoe/Suburban / GMC Yukon
Also listed by the manufacturer for: 2007-2013 Chevrolet Avalanche
Why the Bilstein 6112

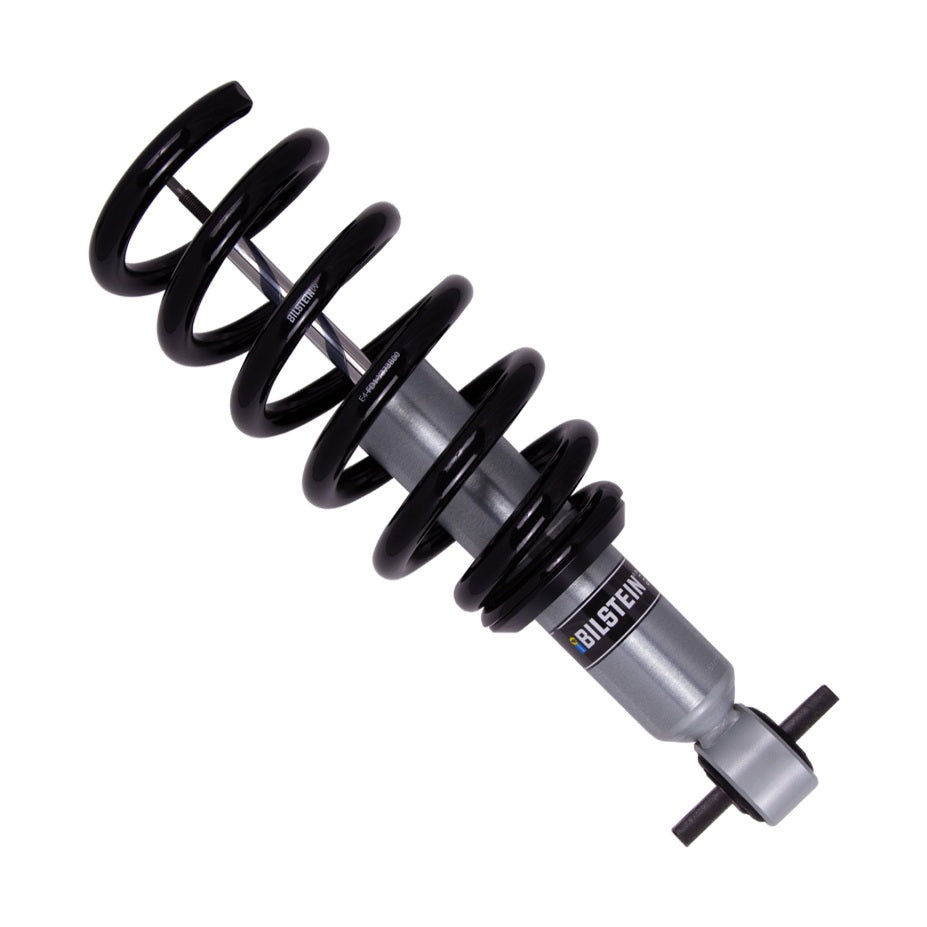

Half-ton trucks that want a real front coilover upgrade with a matched spring and up to about 2.5 in of adjustable lift, without spacers. The Bilstein 6112 kit for your 2007-2013 Chevy Silverado 1500 / GMC Sierra 1500 2WD/4WD is a pair of 60mm monotube coilovers with cold-wound matched coil springs, billet aluminum spring seats and snap-ring ride height adjustment. The 60mm piston moves more oil than a 46mm 5100, which means more control at speed and more heat capacity, and the matched spring is rated for the truck instead of relying on a tired factory coil.
At a glance
| Design | Monotube, 60mm piston |
|---|---|
| Valving | Velocity-sensitive digressive, tuned for this application |
| Position | Front |
| Ride height | 0 to 1.85 in adjustable |
| Collapsed / extended length | 13.15 in / 18.47 in |
| Coil spring rate | 750 lb/in |
| Quantity | Two coilover assemblies (one axle pair) |
| Finish | Zinc plated |
| Warranty | Limited lifetime warranty (Bilstein North America) |
6112 lift settings
Bilstein publishes typical lift per circlip groove for this application (Chevy Silverado 1500 / GMC Sierra 1500 (4x4 V8 Crew Cab)). Measure hub-to-fender front and rear before you start and pick the groove that closes the gap; heights vary with engine, cab, options and tire size.
| Circlip groove | Typical front lift |
|---|---|
| #4 | 1.85 in |
| #3 | 1.25 in |
| #2 | 0.6 in |
| #1 | Stock |
Chart is for Silverado/Sierra 1500 4x4 V8 Crew Cab. Tahoe 2015-2020 (47-310834): circlip #1 only, 1.6 in. Tahoe 2007-2014 (47-310858): #4 2.75, #3 2.2, #2 1.65, #1 1.1. Avalanche 2007-2013 (47-310858): #4 2.65, #3 2.1, #2 1.5, #1 0.9.

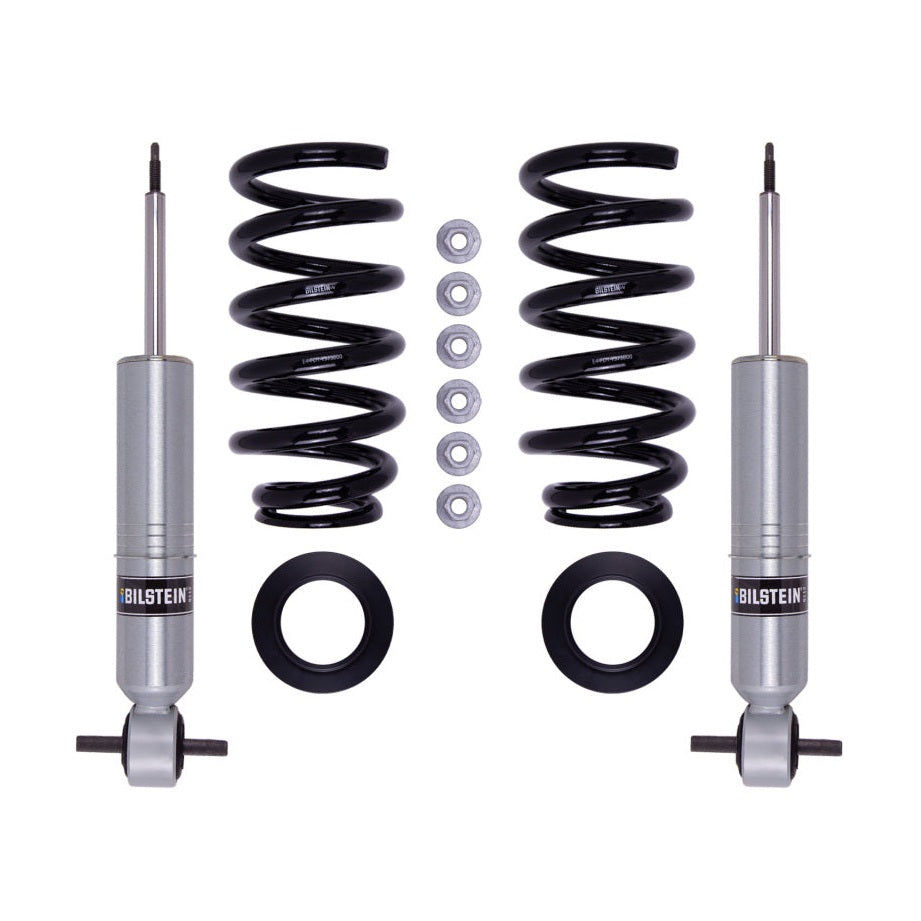

What is in the box

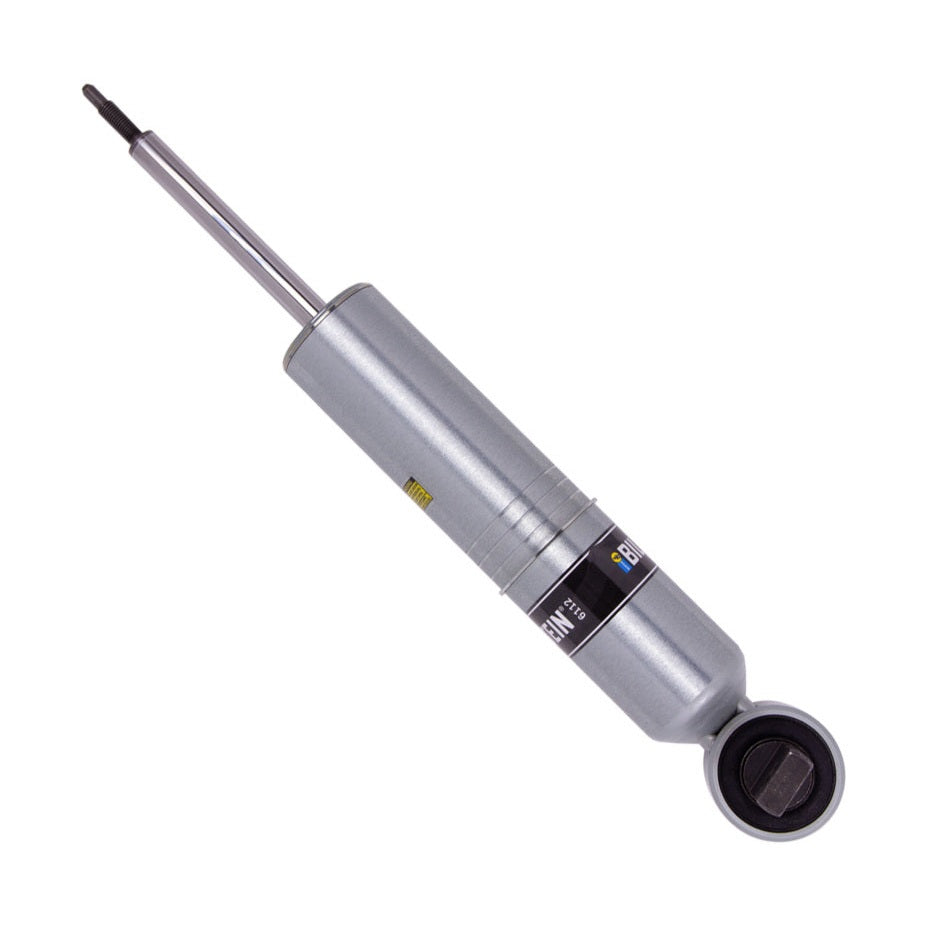

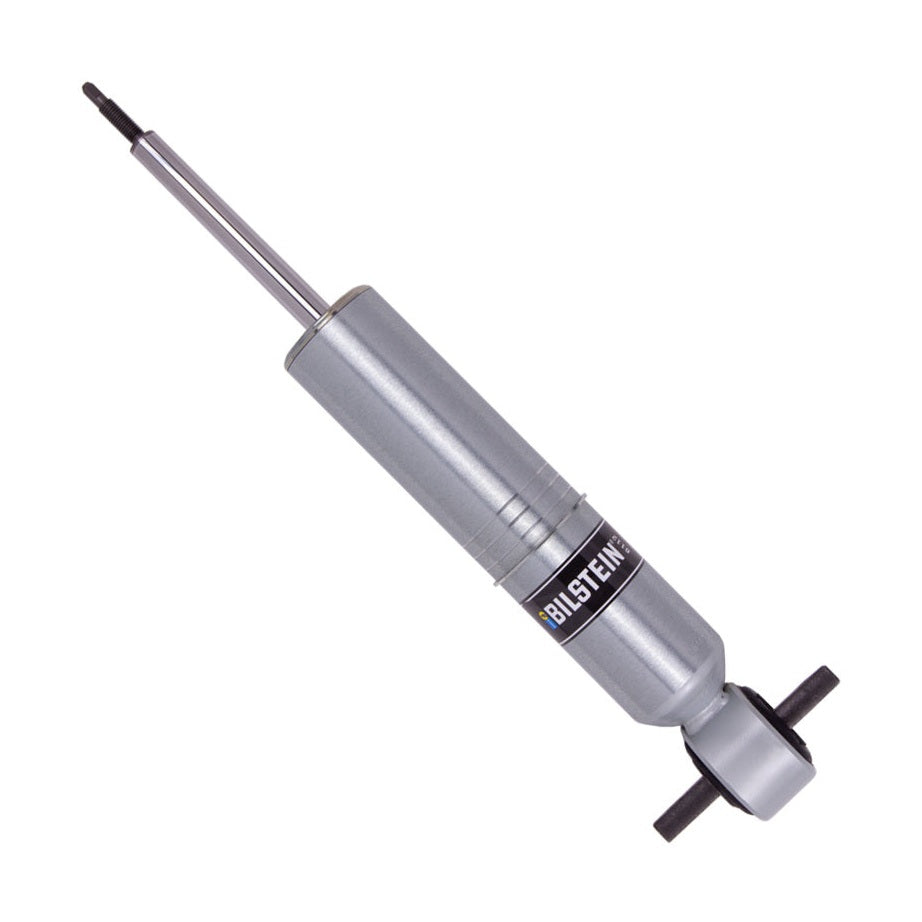

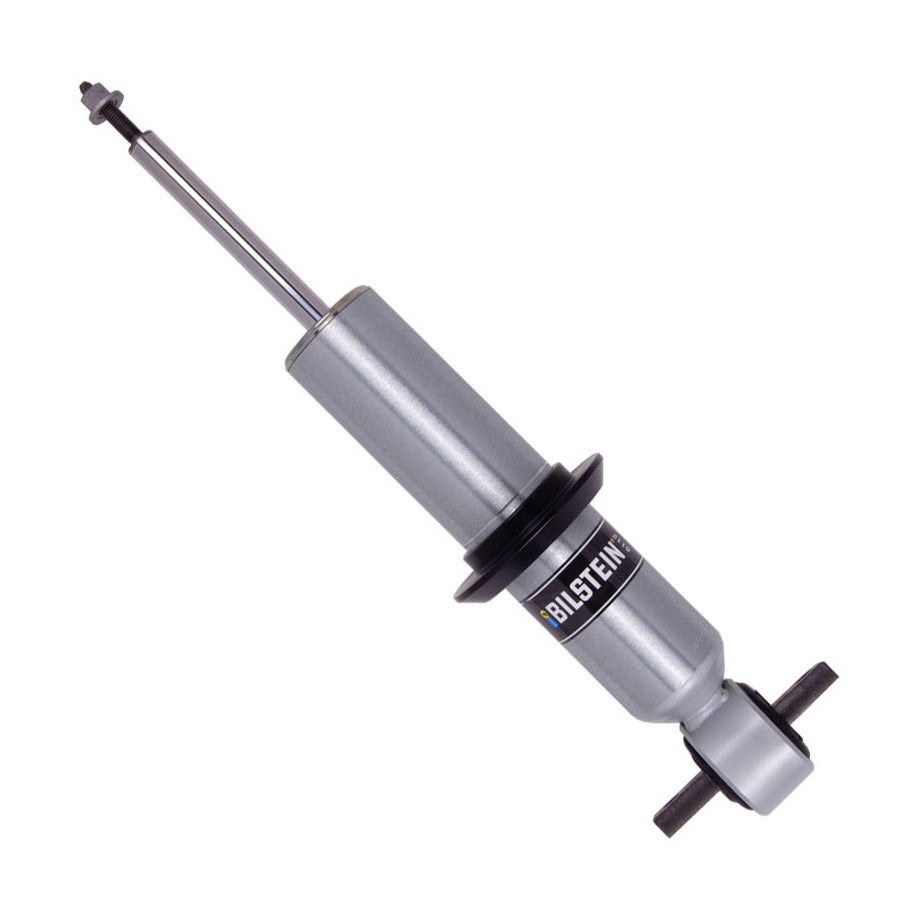

- Two Bilstein 6112 60mm monotube coilover shocks

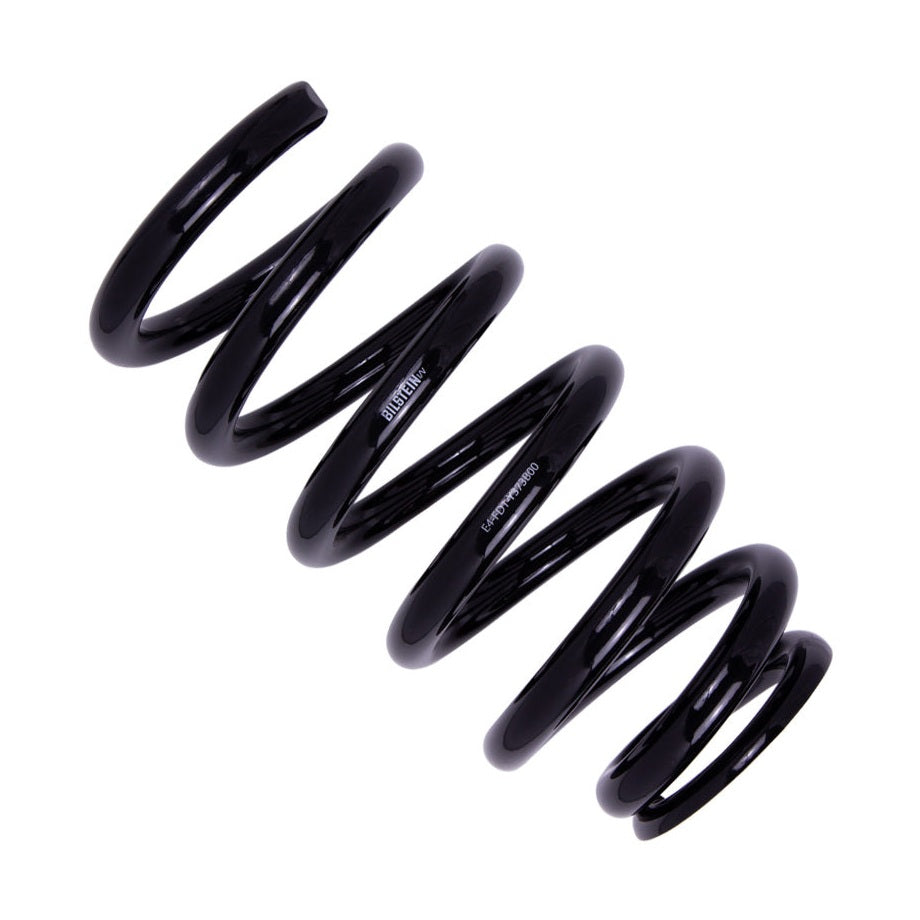

- Two cold-wound Bilstein coil springs

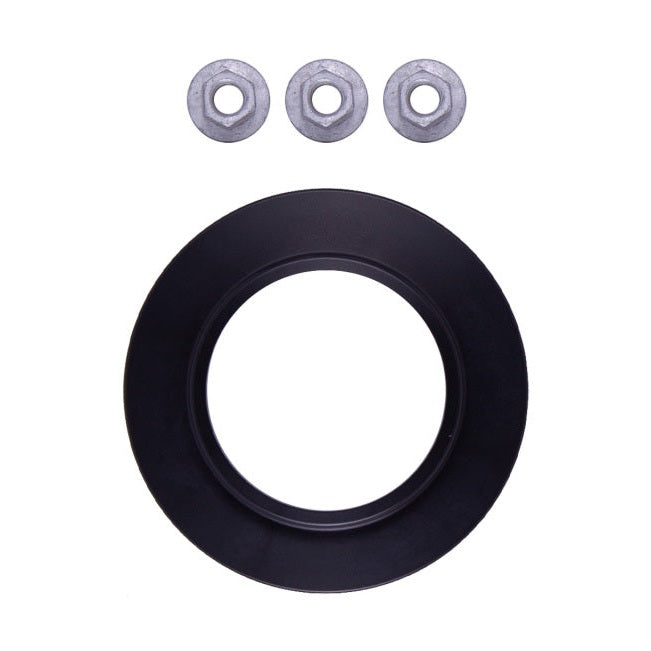

- Two billet aluminum spring seats with circlips pre-installed
- Jounce bumpers, lock nuts and hardware
- Mounting instructions with the lift height chart
Manufacturer part number 47-310858.
Questions
Which circlip groove should I use?
Use the lift chart above for your engine and cab, and measure hub-to-fender front and rear first. The circlips are set at the factory; move them before you assemble the spring.
Do I need upper control arms?
Bilstein does not require them, but above roughly 2 in of lift aftermarket UCAs restore caster and keep the upper ball joint out of the end of its travel. An alignment is required either way.
What is the difference between 6112 and 5100 Ride Height Adjustable?
The 5100 RHA reuses your factory spring on a 46mm shock. The 6112 is a 60mm shock with its own matched spring, so it carries more oil, handles heat and heavy front ends better, and does not depend on the condition of your original coil.
Do I need a spring compressor?
Yes. The kit ships unassembled; the coil must be compressed to install the top mount. Bilstein specifies professional installation.
How long does installation take?
Two to three hours for the pair, plus an alignment. A spring compressor is required.
What is the warranty?
Limited lifetime warranty (Bilstein North America). Bilstein warranties are non-transferable and processed through the original place of purchase, so keep your Hannah Suspension order confirmation.
Bilstein truck lines
| Line | Best for | Piston | Reservoir | Adjustable lift | Warranty |
|---|---|---|---|---|---|
| 4600 | Stock height, daily driving and towing | 46mm | No | No | Lifetime |
| 5100 | Leveled or lifted trucks, direct fit | 46mm | No | No | Lifetime |
| 5100 Ride Height Adjustable | Level the front on the factory coil | 46mm | No | 0 to 2.5 in typical | Lifetime |
| 5160 | Lifted trucks, heat and long off-road miles | 46mm | Yes | No | 2 years |
| 6112 | Front coilover upgrade with matched spring | 60mm | No | 0 to 2.75 in typical | Lifetime |
| 8100 | Serious off-road, external adjusters (DSA) | 60mm | Yes | No | 2 years |
| 8112 | Position-sensitive coilover, top of the line | 60mm | Yes | Yes | 2 years |
About Bilstein
Bilstein has built monotube gas-pressure shocks since 1954 and supplies them as original equipment to Ford, GM, Ram and most European makers. Bilstein of America engineers, tests and builds its truck lines in Hamilton, Ohio and Poway, California, and backs the 6112 with a limited lifetime warranty. Hannah Suspension ships genuine Bilstein parts with full factory warranty.
