Bilstein 8112 ZoneControl CR Front Right Coilover | 2019-2026 Ram 1500 4WD | 0.6-2.6 in Lift | 41-325230
Sale price
$1,328.00
Regular price $1,447.60
Skip to product information
Bilstein 8112 ZoneControl CR Front Right Coilover | 2019-2026 Ram 1500 4WD | 0.6-2.6 in Lift | 41-325230
Sale price
$1,328.00
Regular price $1,447.60
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2019-2026 Ram 1500 4WD
Does not fit: TRX, Factory air ride
Why the Bilstein 8112 ZoneControl CR

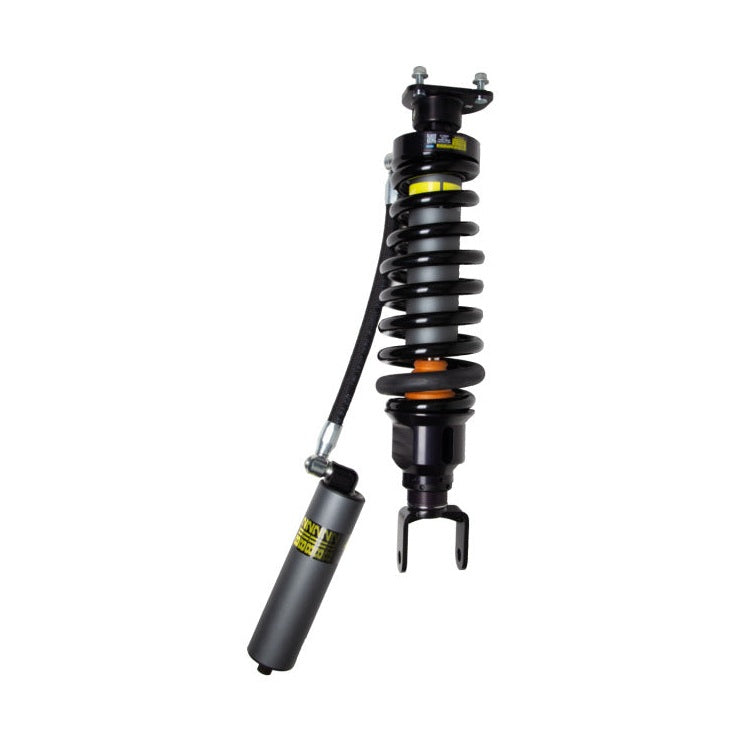

Trucks that see real high-speed off-road use and want position-sensitive damping with a remote reservoir, in a bolt-in coilover. The Bilstein 8112 ZoneControl CR for your 2019-2026 Ram 1500 4WD is a zoneControl CR position-sensitive damping (three compression zones, two rebound zones) in a 60mm monotube coilover with remote reservoir, ride-height adjustable spring seat. Position-sensitive zones let the shock stay soft in the middle of the stroke and ramp up hard near full compression.
At a glance
| Design | Monotube, 60mm piston |
|---|---|
| Valving | Velocity-sensitive digressive, tuned for this application |
| Remote reservoir | Yes, extra oil volume for cooling and travel |
| Position | Front Right |
| Ride height | 0.6 to 2.6 in adjustable |
| Quantity | One shock, right side only |
| Finish | Zinc plated |
| Warranty | Two-year limited warranty (Bilstein North America) |

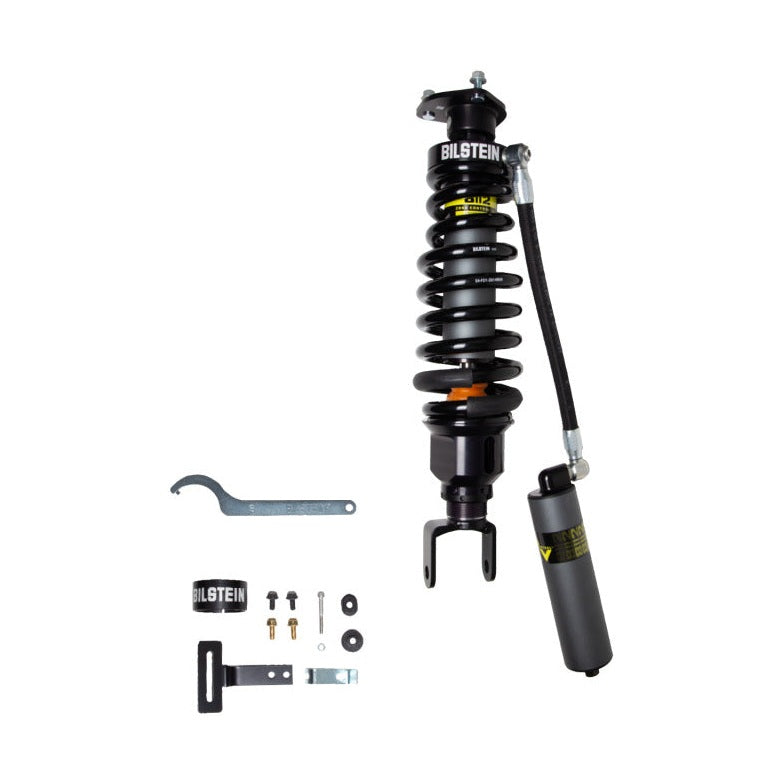

What is in the box
- One Bilstein 8112 ZoneControl CR coilover, right side
- Remote reservoir, hose and billet reservoir mount
- Hardware and instructions
Manufacturer part number 41-325230.
Questions
Is this the left or the right side?
This part number is the right (passenger) side. The opposite side is a separate part number; order both for one axle.
How long does installation take?
One to two hours per side plus reservoir routing, plus an alignment.
What is the warranty?
Two-year limited warranty (Bilstein North America). Bilstein warranties are non-transferable and processed through the original place of purchase, so keep your Hannah Suspension order confirmation.
Bilstein truck lines
| Line | Best for | Piston | Reservoir | Adjustable lift | Warranty |
|---|---|---|---|---|---|
| 4600 | Stock height, daily driving and towing | 46mm | No | No | Lifetime |
| 5100 | Leveled or lifted trucks, direct fit | 46mm | No | No | Lifetime |
| 5100 Ride Height Adjustable | Level the front on the factory coil | 46mm | No | 0 to 2.5 in typical | Lifetime |
| 5160 | Lifted trucks, heat and long off-road miles | 46mm | Yes | No | 2 years |
| 6112 | Front coilover upgrade with matched spring | 60mm | No | 0 to 2.75 in typical | Lifetime |
| 8100 | Serious off-road, external adjusters (DSA) | 60mm | Yes | No | 2 years |
| 8112 | Position-sensitive coilover, top of the line | 60mm | Yes | Yes | 2 years |
About Bilstein
Bilstein has built monotube gas-pressure shocks since 1954 and supplies them as original equipment to Ford, GM, Ram and most European makers. Bilstein of America engineers, tests and builds its truck lines in Hamilton, Ohio and Poway, California, and backs the 8112 ZoneControl CR with a two-year limited warranty. Hannah Suspension ships genuine Bilstein parts with full factory warranty.
