Good to know before you buy
Fits
- 1994-2013 Ram 2500 4WD and 1994-2012 Ram 3500 4WD, stock height through 2.5 in of front leveling lift, 0 to 1 in rear lift
Does not fit: 2WD, Power Wagon, 2013 Ram 3500 (new chassis, see the 2013-2026 Ram 3500 kit), trucks lifted more than 2.5 in front
Why this kit
The four-shock Bilstein 5100 set for the solid-axle Ram HD with the leaf-spring rear, covering the second, third and fourth generation 4WD trucks. The 24-185776 front covers stock height through 2.5 in of front lift, so it works on a stock truck as well as the common leveling kit, and the 24-191203 rear covers 0 to 1 in of rear lift. Both are 46mm Bilstein monotubes with velocity-sensitive digressive valving and a limited lifetime warranty. These are the same two part numbers that Ram HD owners have been running for years, in one order.
At a glance
| Kit contents | 2 front shocks + 2 rear shocks (one complete truck) |
|---|---|
| Front | Bilstein 5100 24-185776, for 0 to 2.5 in front lift |

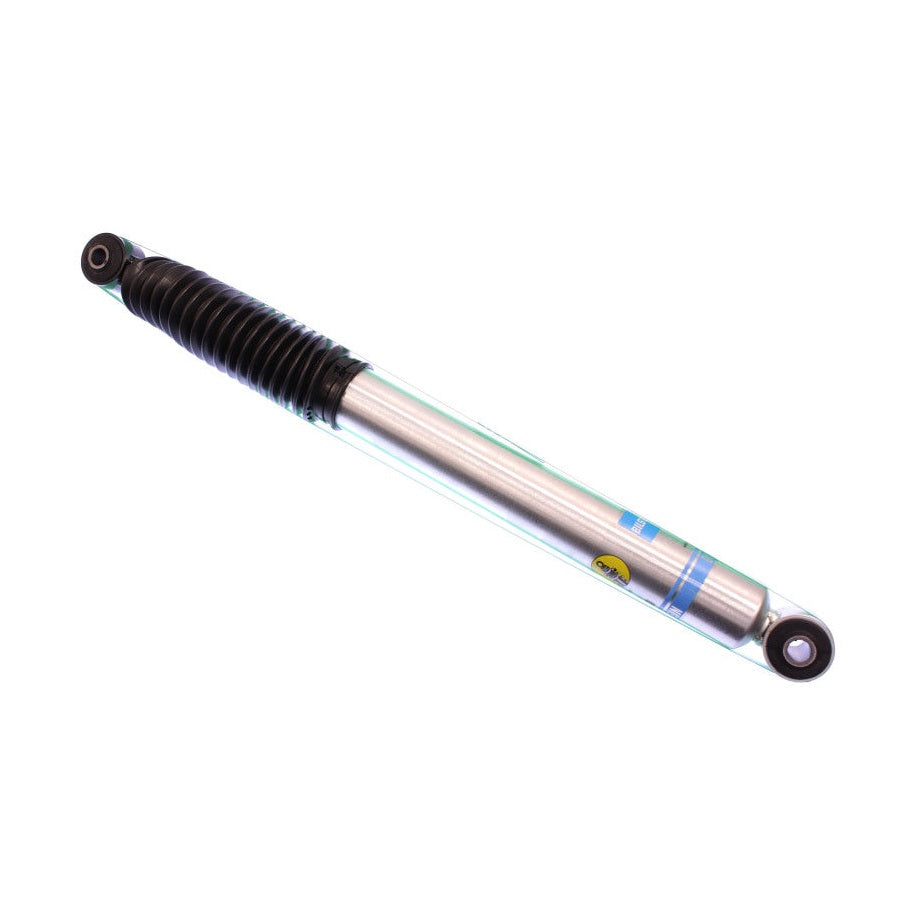

| Rear | Bilstein 5100 24-191203, for 0 to 1 in rear lift |
| Design | Monotube, 46mm piston, zinc plated |
| Valving | Velocity-sensitive digressive, tuned per position |
| Drivetrain | 4WD |
| Warranty | Limited lifetime (Bilstein North America) |
What is in the box
- 2 x Bilstein 5100 front shock, part number 24-185776
- 2 x Bilstein 5100 rear shock, part number 24-191203
- Mounting hardware as required for this application and instructions
Each shock ships in its own Bilstein box. Kit price equals the sum of the four shocks at manufacturer minimum advertised price.
Questions
Does this fit my 2003-2009 Ram 2500 or 3500?
Yes, on 4WD trucks. The same two Bilstein part numbers cover the 1994-2013 Ram 2500 4WD and the 1994-2012 Ram 3500 4WD.
I have a 2013 Ram 3500. Which kit?
The 2013 Ram 3500 moved to the new chassis a year ahead of the 2500. Use the 2013-2026 Ram 3500 kit (24-251747 / 24-302326). The 2013 Ram 2500 stays on this kit.
My truck is stock height. Is this kit fine?
Yes. The 24-185776 front is rated 0 to 2.5 in, so it fits a stock truck and leaves room for a leveling kit later.
How long does installation take?
Rears are 20 to 30 minutes per side. Fronts on the Ram solid axle are a bolt-in shock, about 30 to 45 minutes per side, no spring compressor needed.
What is the warranty?
Limited lifetime warranty on all four shocks through Bilstein North America, processed through the original place of purchase. Keep your Hannah Suspension order confirmation.
About Bilstein
Bilstein has built monotube gas-pressure shocks since 1954 and supplies them as original equipment to Ford, GM, Ram and most European makers. Bilstein of America engineers, tests and builds its truck lines in Hamilton, Ohio and Poway, California. Hannah Suspension ships genuine Bilstein parts with full factory warranty.
