Bilstein 5100 Leveling Kit + 5160 Reservoir Rears (Adjustable Front Struts, Reuses Factory Coils) | 2009-2018 Ram 1500 / 2019-2024 Ram 1500 Classic 4WD | 0-2.8 in Front Lift
Sale price
$950.00
Regular price $1,089.70
Skip to product information
Bilstein 5100 Leveling Kit + 5160 Reservoir Rears (Adjustable Front Struts, Reuses Factory Coils) | 2009-2018 Ram 1500 / 2019-2024 Ram 1500 Classic 4WD | 0-2.8 in Front Lift
Sale price
$950.00
Regular price $1,089.70
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2009-2018 Ram 1500 4WD and 2019-2024 Ram 1500 Classic 4WD with coil rear suspension, stock height through 2.8 in of front lift, stock rear
Does not fit: 2WD trucks, factory air ride, Rebel (front), 2019+ new body Ram 1500 (use the 2019-2026 kit)
How this leveling kit works
The front is the Bilstein 5100 ride height adjustable strut: you transfer your factory coil springs and upper mounts onto the new strut and set the lower spring seat in a snap-ring groove for 0 to 2.8 in of lift; 2.1 in is the setting to run on stock upper control arms. The rear moves to the 5160, a 5100 with an external reservoir that adds oil volume and heat capacity so a coil-sprung Ram rear holds its damping under a trailer or on long dirt roads.
- You reuse: factory coil springs, upper strut mounts, isolators and mounting bolts
- You replace: both front strut and damper assemblies, both rear shocks
- You need: a spring compressor (or a shop) to move the coils, and an alignment after install
Why this kit
This is the step up from the plain 5100 level for a 4th gen Ram that tows, hauls or sees washboard. The front is identical, so you keep the leveled stance at 2.1 in on factory arms. The rear keeps the 5100 digressive valving but adds a reservoir, so it does not fade on heat. Limited lifetime warranty at all four corners.
At a glance
| Kit contents | 2 front ride height adjustable struts + 2 rear remote reservoir shocks (springs not included, factory coils reused) |
|---|---|
| Front | Bilstein 5100 24-317887, snap-ring adjustable, 0 to 2.8 in lift with OE coil |

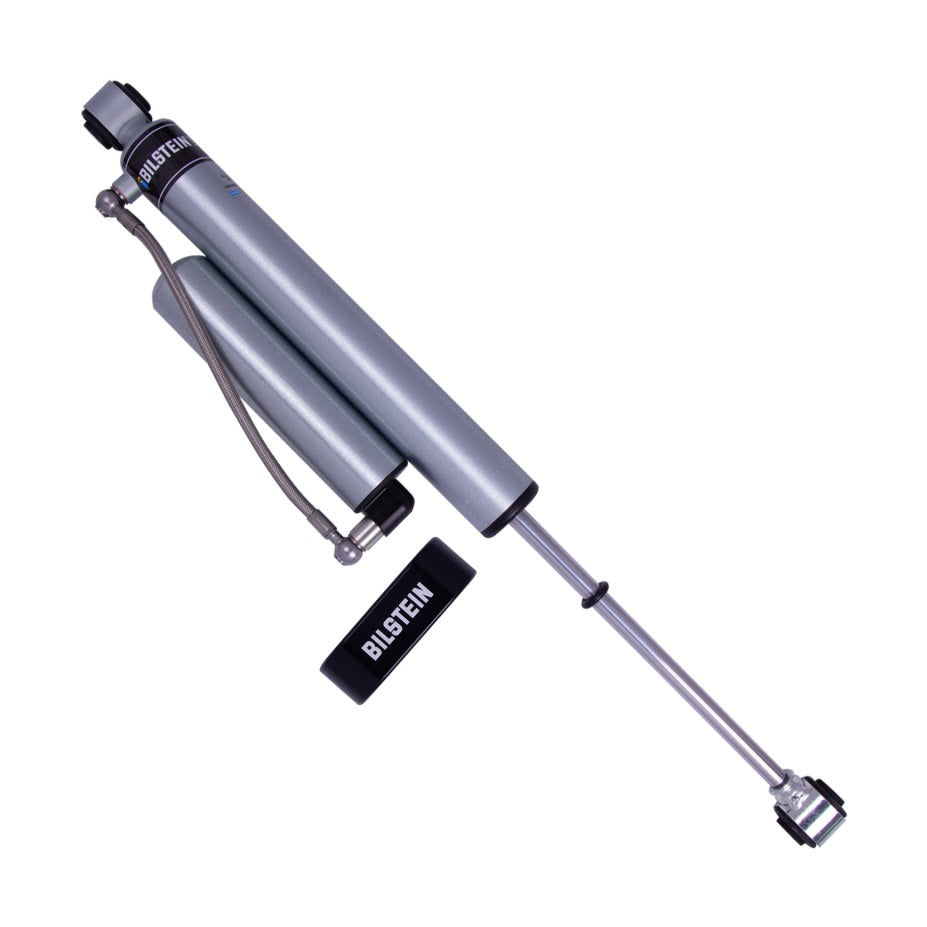

| Rear | Bilstein 5160 25-311389, remote reservoir, stock height rear |
| Design | Monotube, 46mm piston, zinc plated, rear reservoir with stainless braided line |
| Drivetrain | 4WD |
| Warranty | Limited lifetime (Bilstein North America) |
What is in the box
- 2 x Bilstein 5100 front ride height adjustable strut, part number 24-317887
- 2 x Bilstein 5160 rear remote reservoir shock, part number 25-311389, with reservoir mounting brackets
- Snap rings, hardware and instructions. Factory coil springs, strut mounts and isolators are reused
Questions
Which setting should I use?
2.1 in levels most 4th gen crew cabs and is the highest setting recommended on stock upper control arms. 2.8 in needs aftermarket UCAs and usually a differential drop on 4WD.
Do I need a spring compressor?
Yes. The factory coil transfers to the new strut. Plan on 1.5 to 2 hours per side for the fronts, 30 to 45 minutes per side for the rears with the reservoir bracket, and an alignment afterward.
I have a 2019 to 2024 Ram 1500 Classic. Is this my kit?
Yes. The Classic is the 4th gen body and takes this kit.
What is the warranty?
Limited lifetime warranty on all four dampers through Bilstein North America, processed through the original place of purchase. Keep your Hannah Suspension order confirmation.
About Bilstein
Bilstein has built monotube gas-pressure shocks since 1954 and supplies them as original equipment to Ford, GM, Ram and most European makers. Bilstein of America engineers, tests and builds its truck lines in Hamilton, Ohio and Poway, California. Hannah Suspension ships genuine Bilstein parts with full factory warranty.
