Bilstein 5100 Rear Shock | 2014-2026 Ram 2500 2WD/4WD | 24-285698
Sale price
$123.00
Regular price $171.85
Skip to product information
Bilstein 5100 Rear Shock | 2014-2026 Ram 2500 2WD/4WD | 24-285698
Sale price
$123.00
Regular price $171.85
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2014-2026 Ram 2500 2WD/4WD
Does not fit: Power Wagon
Why the Bilstein 5100

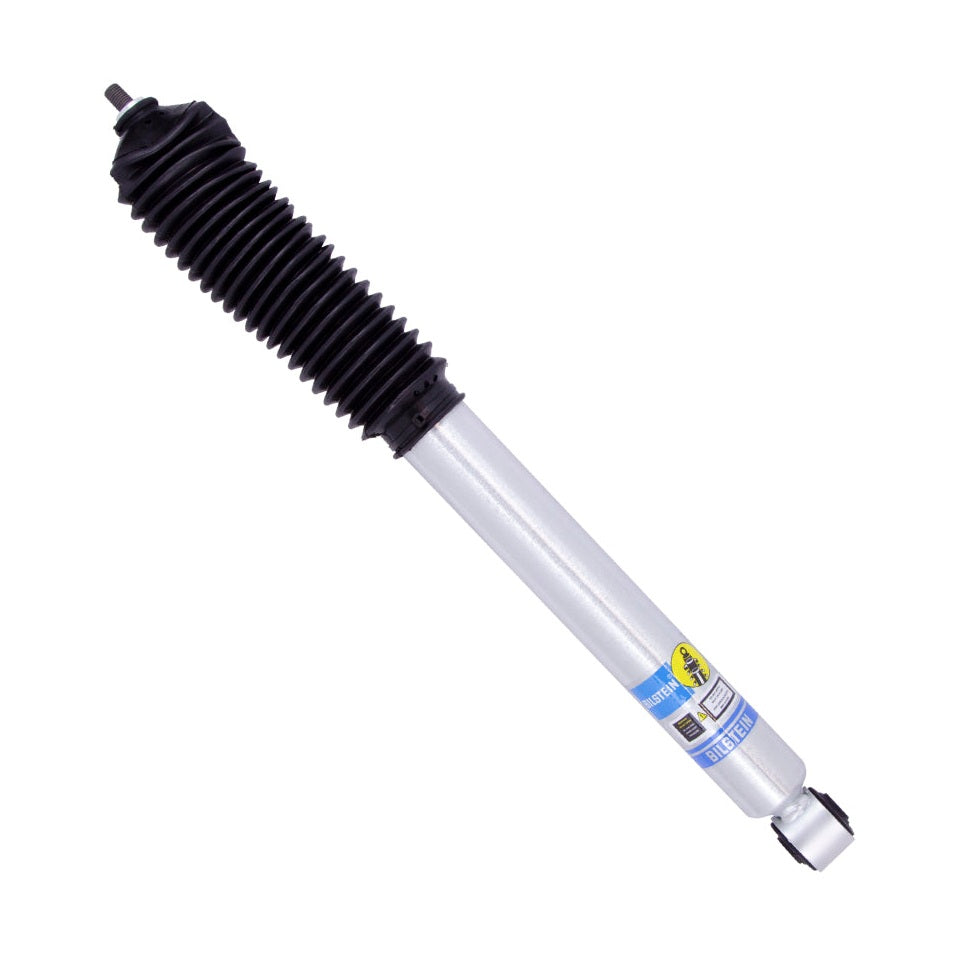

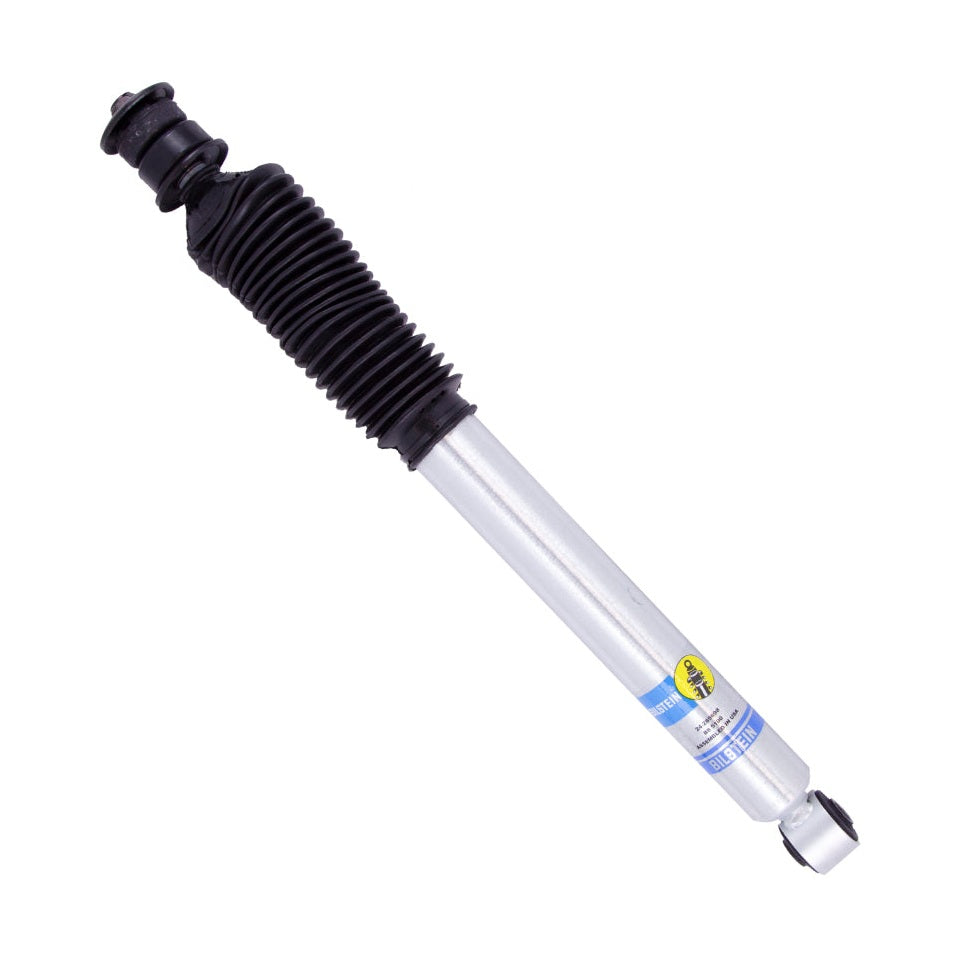

Leveled or lifted trucks that want a direct-fit monotube shock valved for the extra ride height and larger tires. The Bilstein 5100 for your 2014-2026 Ram 2500 2WD/4WD is a 46mm monotube shock with velocity-sensitive digressive valving, tuned per application for lifted ride heights. Bilstein's monotube design keeps oil and gas separated by a floating piston, so damping does not fade as the shock heats, and the digressive piston firms up on sharp inputs while staying compliant over small bumps.
At a glance
| Design | Monotube, 46mm piston |
|---|---|
| Valving | Velocity-sensitive digressive, tuned for this application |
| Position | Rear |
| Quantity | One shock, order two per axle |
| Finish | Zinc plated |
| Warranty | Limited lifetime warranty (Bilstein North America) |

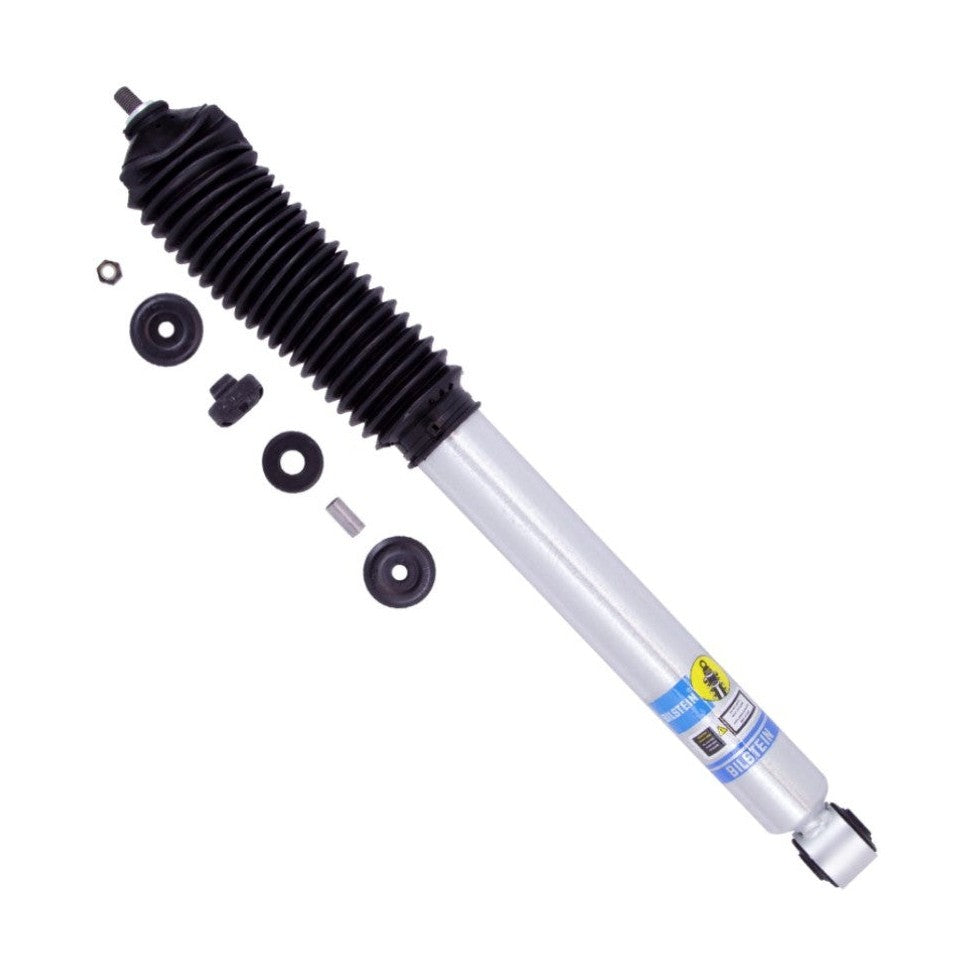

What is in the box
- One Bilstein 5100 shock

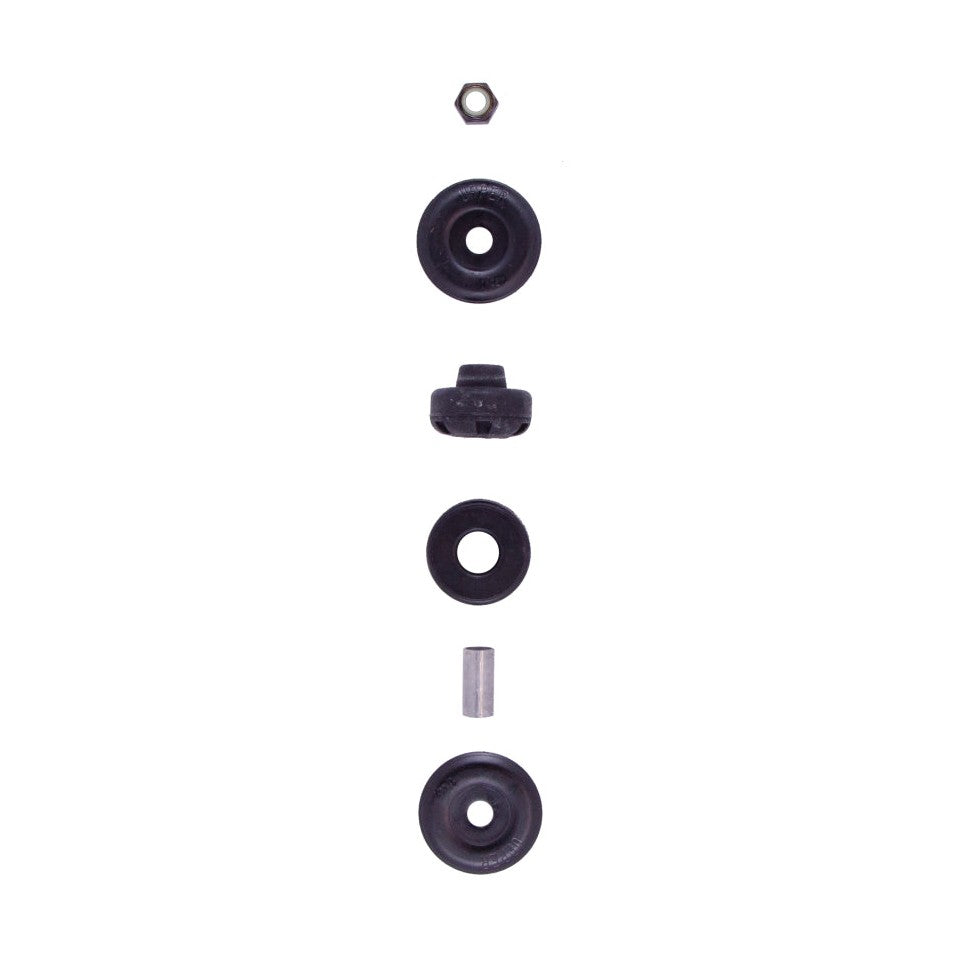

- Mounting hardware as required for this application and instructions
Manufacturer part number 24-285698.
Questions
Is this one shock or a pair?
One shock. Bilstein sells truck shocks individually, so order two for one axle or four for the whole truck.
Is this for a stock or lifted truck?
Bilstein lists this part number as a direct fit for this application; T14 did not state a specific lift height. Check the collapsed and extended length against your current shock if the truck is lifted.
How long does installation take?
Rear shocks are a 20 to 30 minute job per side with hand tools. Front strut-type shocks need a spring compressor and take one to two hours per side.
What is the warranty?
Limited lifetime warranty (Bilstein North America). Bilstein warranties are non-transferable and processed through the original place of purchase, so keep your Hannah Suspension order confirmation.
Bilstein truck lines
| Line | Best for | Piston | Reservoir | Adjustable lift | Warranty |
|---|---|---|---|---|---|
| 4600 | Stock height, daily driving and towing | 46mm | No | No | Lifetime |
| 5100 | Leveled or lifted trucks, direct fit | 46mm | No | No | Lifetime |
| 5100 Ride Height Adjustable | Level the front on the factory coil | 46mm | No | 0 to 2.5 in typical | Lifetime |
| 5160 | Lifted trucks, heat and long off-road miles | 46mm | Yes | No | 2 years |
| 6112 | Front coilover upgrade with matched spring | 60mm | No | 0 to 2.75 in typical | Lifetime |
| 8100 | Serious off-road, external adjusters (DSA) | 60mm | Yes | No | 2 years |
| 8112 | Position-sensitive coilover, top of the line | 60mm | Yes | Yes | 2 years |
About Bilstein
Bilstein has built monotube gas-pressure shocks since 1954 and supplies them as original equipment to Ford, GM, Ram and most European makers. Bilstein of America engineers, tests and builds its truck lines in Hamilton, Ohio and Poway, California, and backs the 5100 with a limited lifetime warranty. Hannah Suspension ships genuine Bilstein parts with full factory warranty.
