Bilstein 5160 Front & Rear Reservoir Shock Kit | 2017-2026 Ford F-250/F-350 Super Duty 2WD/4WD | 2-2.5 in Front Lift
$1,218.00
Skip to product information
Bilstein 5160 Front & Rear Reservoir Shock Kit | 2017-2026 Ford F-250/F-350 Super Duty 2WD/4WD | 2-2.5 in Front Lift
$1,218.00
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2017-2026 Ford F-250/F-350 Super Duty 2WD/4WD with 2 to 2.5 in front leveling lift
Does not fit: Tremor, factory lift packages, stock height trucks
Why this kit
The 5160 is the Bilstein 5100 with a remote reservoir: same 46mm monotube and digressive valving, plus a second canister of oil and nitrogen that keeps the shock cool on long washboard, heavy towing in summer heat, or repeated hard hits where a standard shock starts to fade. This kit puts all four on a leveled Super Duty in one order, the 25-311792 fronts sized for 2 to 2.5 in of front lift and the 25-311808 rears for the 2017-2026 rear. Reservoirs mount to the frame with the included brackets.
At a glance
| Kit contents | 2 front reservoir shocks + 2 rear reservoir shocks |
|---|---|
| Front | Bilstein 5160 25-311792, for 2 to 2.5 in front lift |

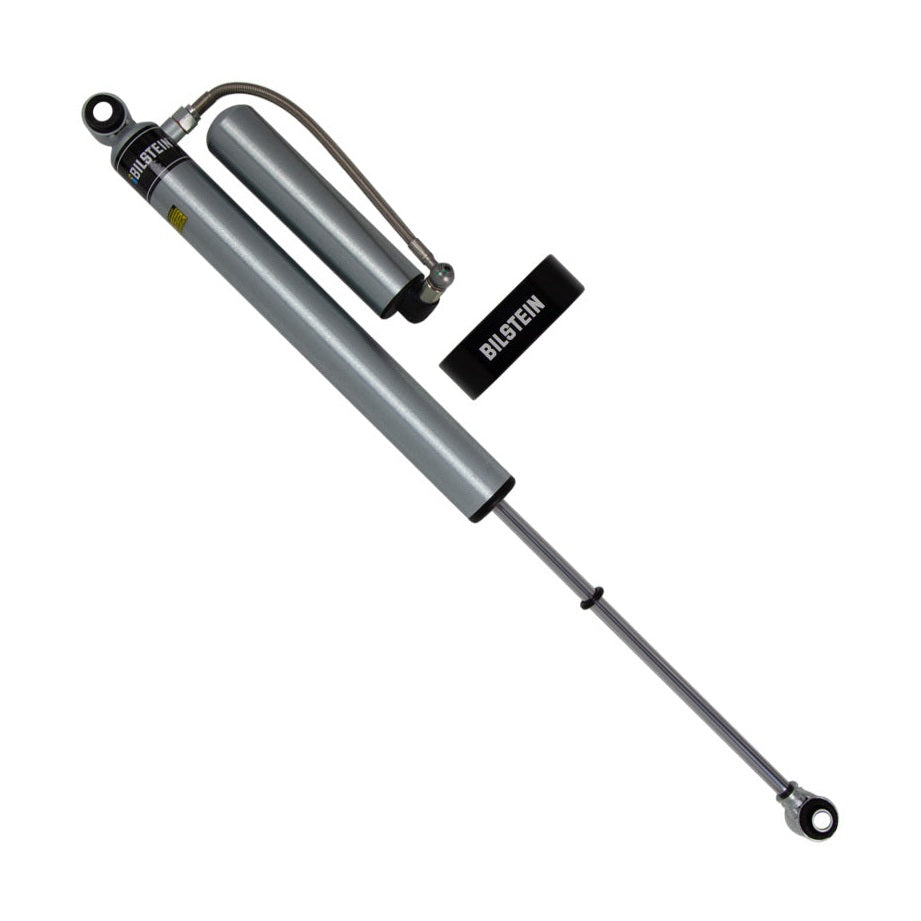

| Rear | Bilstein 5160 25-311808 |
| Design | Monotube, 46mm piston, remote reservoir, zinc plated |
| Valving | Velocity-sensitive digressive, tuned per position |
| Drivetrain | 2WD and 4WD |
| Warranty | 2 years (Bilstein North America) |
What is in the box
- 2 x Bilstein 5160 front reservoir shock, part number 25-311792
- 2 x Bilstein 5160 rear reservoir shock, part number 25-311808
- Reservoir mounting brackets, hardware and instructions
Each shock ships in its own Bilstein box. Kit price equals the sum of the four shocks at manufacturer minimum advertised price.
Questions
5160 or 5100?
Same valving philosophy, same fit. The 5160 adds oil capacity and heat rejection. If the truck sees long dirt roads, heavy trailers in hot climates, or you simply want the shocks to stay consistent on the worst days, 5160. For a daily driven truck the 5100 kit does the job at less than half the price.
Where do the reservoirs mount?
To the frame near each shock using the supplied brackets and hose. Plan on 45 to 60 minutes per corner including bracket placement.
Why is the warranty shorter than the 5100?
Bilstein covers reservoir shocks for 2 years rather than lifetime because the hoses and reservoir seals are serviceable wear items.
Does this fit the Tremor package?
No. Tremor trucks sit higher from the factory and need different lengths.
About Bilstein
Bilstein has built monotube gas-pressure shocks since 1954 and supplies them as original equipment to Ford, GM, Ram and most European makers. Bilstein of America engineers, tests and builds its truck lines in Hamilton, Ohio and Poway, California. Hannah Suspension ships genuine Bilstein parts with full factory warranty.
