Bilstein 6112 Front Coilover + 5160 Rear Reservoir Shock Kit | 2019-2026 Chevy Silverado 1500 Trail Boss / GMC Sierra 1500 AT4 4WD | 0-1.2 in Front Lift
Sale price
$1,521.00
Regular price $1,604.85
Skip to product information
Bilstein 6112 Front Coilover + 5160 Rear Reservoir Shock Kit | 2019-2026 Chevy Silverado 1500 Trail Boss / GMC Sierra 1500 AT4 4WD | 0-1.2 in Front Lift
Sale price
$1,521.00
Regular price $1,604.85
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2019-2026 Chevy Silverado 1500 Custom Trail Boss and LT Trail Boss 4WD, 0 to 1.2 in additional front lift, 0 to 1 in rear lift
- 2019-2026 GMC Sierra 1500 AT4 4WD, same range
Does not fit: Non-Trail Boss Silverado or non-AT4 Sierra (use the standard 6112 + 5160 kit), AT4X, ZR2, trucks with Adaptive Ride Control
Why this kit
Trail Boss and AT4 trucks leave the factory with a 2 in lift and Rancho dampers that most owners are ready to replace by 30,000 miles. The Bilstein 6112 kit for these trucks is built to the taller factory geometry: a 60mm monotube coilover with Bilstein's own cold-wound spring, adjustable from the factory lifted height up to another 1.2 in. The two 5160 rears carry the same digressive valving with a remote reservoir that keeps the oil cool on long dirt roads and heavy loads. Bilstein sells the fronts and rears as separate part numbers; this kit puts the correct Trail Boss / AT4 set in one order.
At a glance
| Kit contents | Front coilover kit (2 struts + 2 springs) + 2 rear reservoir shocks |
|---|---|
| Front | Bilstein 6112 47-309524, 60mm monotube, matched coil, 0 to 1.2 in lift over factory Trail Boss / AT4 height |

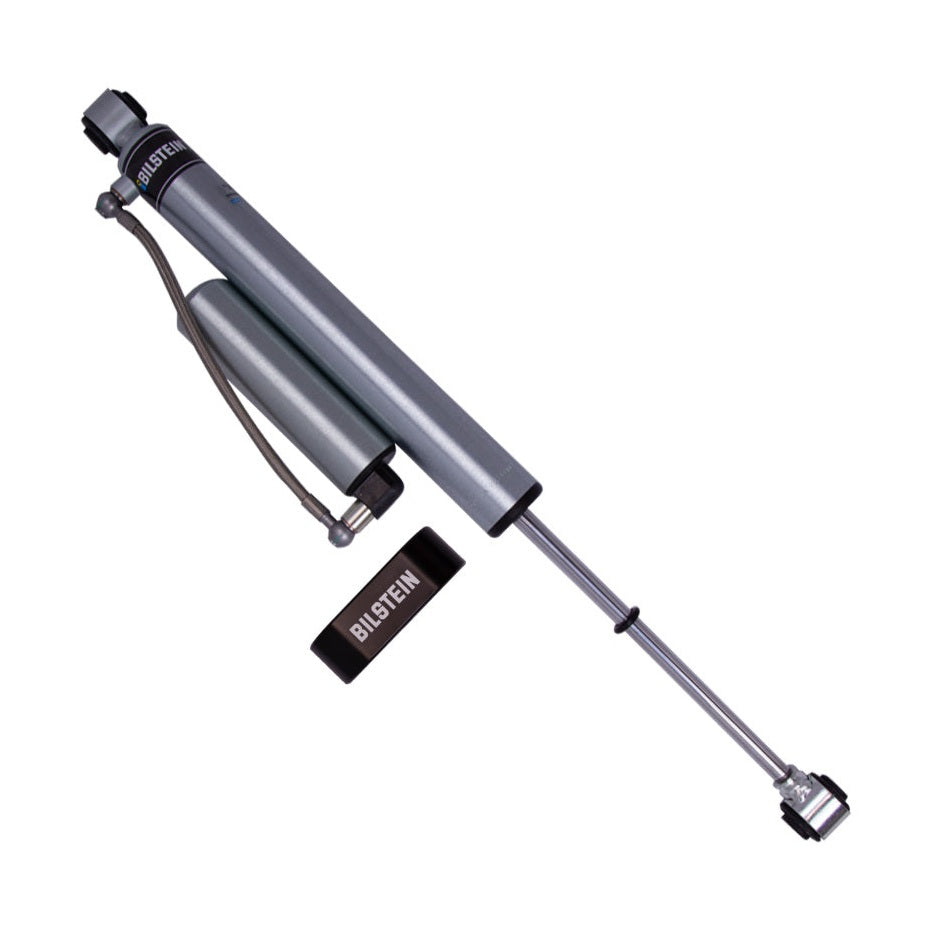

| Rear | Bilstein 5160 25-316964, 46mm monotube, remote reservoir, 0 to 1 in rear lift |
| Drivetrain | 4WD |
| Warranty | 6112: limited lifetime. 5160: 2 years (Bilstein North America) |
What is in the box
- 1 x Bilstein 6112 front kit 47-309524: two 60mm struts, two coil springs, two billet spring seats, snap rings, hardware
- 2 x Bilstein 5160 rear reservoir shock 25-316964 with reservoir clamps and hardware
- Instructions for both. Factory upper strut mounts are reused
Questions
Why is the Trail Boss kit different?
The factory 2 in lift changes strut length and spring rate. The 47-309524 is built for that geometry so the truck keeps its full travel and ride quality. The standard-suspension 6112 will not fit correctly.
Do the fronts come assembled?
No. Bilstein ships the strut and spring separately; assembly needs a spring compressor and the factory top mount. Plan on 2 hours per side for the fronts, 30 to 45 minutes per corner for the rears including reservoir mounting, and an alignment afterward.
Do I need upper control arms?
Not at the 1.2 in this kit adds. Combined with the factory lift the truck stays inside the range the stock arms handle.
Will this fit the AT4X or ZR2?
No. Those use Multimatic DSSV dampers and different geometry; Bilstein does not list this kit for them.
What is the warranty?
Limited lifetime on the 6112 struts and springs, 2 years on the 5160 reservoir shocks, through Bilstein North America and processed through the original place of purchase. Keep your Hannah Suspension order confirmation.
About Bilstein
Bilstein has built monotube gas-pressure shocks since 1954 and supplies them as original equipment to Ford, GM, Ram and most European makers. Bilstein of America engineers, tests and builds its truck lines in Hamilton, Ohio and Poway, California. Hannah Suspension ships genuine Bilstein parts with full factory warranty.
