Bilstein 5112 Front Leveling Kit | 2013-2026 Ram 3500 2WD/4WD | 2 in Lift | 46-241634
Sale price
$584.00
Regular price $815.00
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2013-2026 Ram 3500 2WD/4WD
Does not fit: Power Wagon
Why the Bilstein 5112

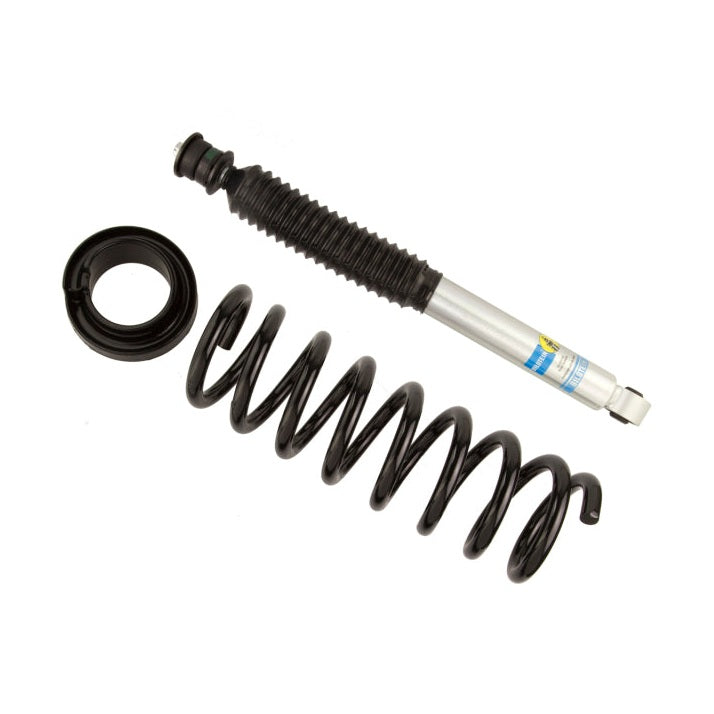

Solid-front-axle HD trucks that want to level the nose and replace tired front shocks in one kit. The Bilstein 5112 kit for your 2013-2026 Ram 3500 2WD/4WD is a front leveling kit: coil spring spacers matched to 5100 monotube shocks valved for the new ride height. You get the level stance and matching shocks in one box, with damping valved for the new ride height rather than a spacer on factory shocks.
At a glance
| Design | Monotube, 46mm piston |
|---|---|
| Valving | Velocity-sensitive digressive, tuned for this application |
| Position | Front |
| Ride height | 2 in |
| Quantity | Two front shocks plus leveling spacers and hardware |
| Finish | Zinc plated |
| Warranty | Limited lifetime warranty (Bilstein North America) |

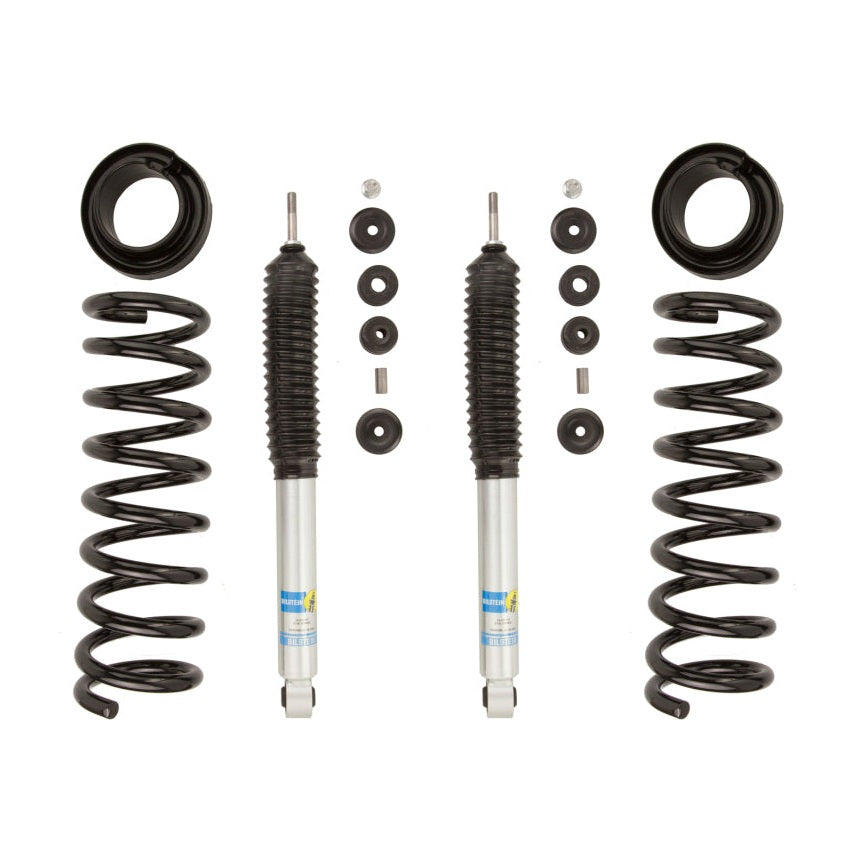

What is in the box
- Two Bilstein 5100 front shocks
- Front coil spring spacers for the stated lift

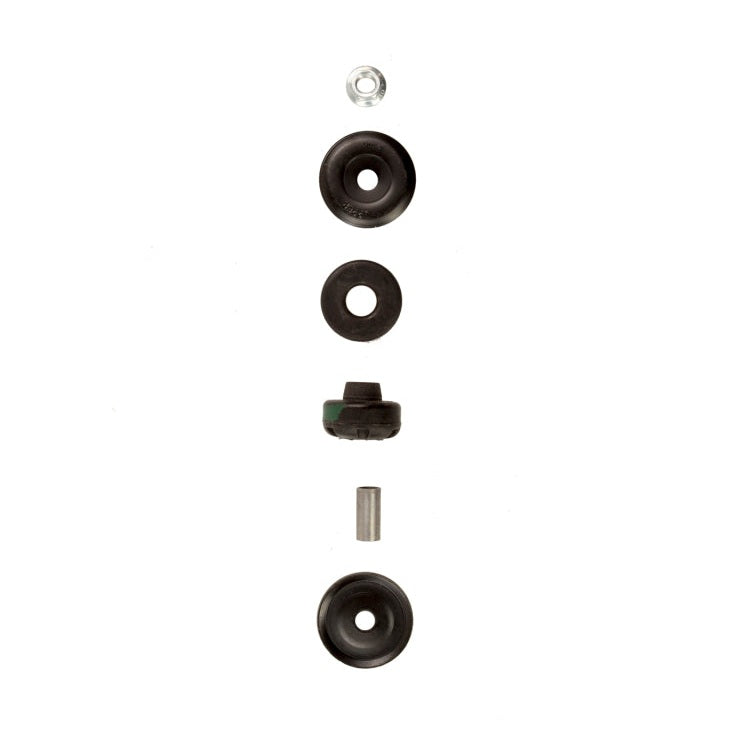

- Hardware and mounting instructions
Manufacturer part number 46-241634.
Questions
How much does it lift the front?
2 in Lift, enough to level the factory rake on most HD trucks. It does not change the rear.
Do I need an alignment?
Yes. Any front ride height change on a solid-axle HD truck needs caster checked and set.
Can I run bigger tires?
A leveling kit clears roughly one tire size up on most Super Duty and Ram HD trucks. Bilstein does not publish a maximum tire size for this kit.
How long does installation take?
Two to three hours for the front axle, plus an alignment.
What is the warranty?
Limited lifetime warranty (Bilstein North America). Bilstein warranties are non-transferable and processed through the original place of purchase, so keep your Hannah Suspension order confirmation.
Bilstein truck lines
| Line | Best for | Piston | Reservoir | Adjustable lift | Warranty |
|---|---|---|---|---|---|
| 4600 | Stock height, daily driving and towing | 46mm | No | No | Lifetime |
| 5100 | Leveled or lifted trucks, direct fit | 46mm | No | No | Lifetime |
| 5100 Ride Height Adjustable | Level the front on the factory coil | 46mm | No | 0 to 2.5 in typical | Lifetime |
| 5160 | Lifted trucks, heat and long off-road miles | 46mm | Yes | No | 2 years |
| 6112 | Front coilover upgrade with matched spring | 60mm | No | 0 to 2.75 in typical | Lifetime |
| 8100 | Serious off-road, external adjusters (DSA) | 60mm | Yes | No | 2 years |
| 8112 | Position-sensitive coilover, top of the line | 60mm | Yes | Yes | 2 years |
About Bilstein
Bilstein has built monotube gas-pressure shocks since 1954 and supplies them as original equipment to Ford, GM, Ram and most European makers. Bilstein of America engineers, tests and builds its truck lines in Hamilton, Ohio and Poway, California, and backs the 5112 with a limited lifetime warranty. Hannah Suspension ships genuine Bilstein parts with full factory warranty.
