Eibach Pro-Truck-Lift Stage 1 Lift Kit | 2019-2026 Ram 1500 4WD | 1-2 in Front / 0.3-1.5 in Rear Lift | E80-27-011-02-22
Sale price
$1,125.00
Regular price $1,250.00
Skip to product information
Eibach Pro-Truck-Lift Stage 1 Lift Kit | 2019-2026 Ram 1500 4WD | 1-2 in Front / 0.3-1.5 in Rear Lift | E80-27-011-02-22
Sale price
$1,125.00
Regular price $1,250.00
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2019-2026 Ram 1500 4WD
Does not fit: factory air ride
Eibach's PRO-TRUCK-LIFT STAGE 1 combines our lift springs and sport shocks with height adjustable clips for increased tire clearance and improved on-and-off road performance.

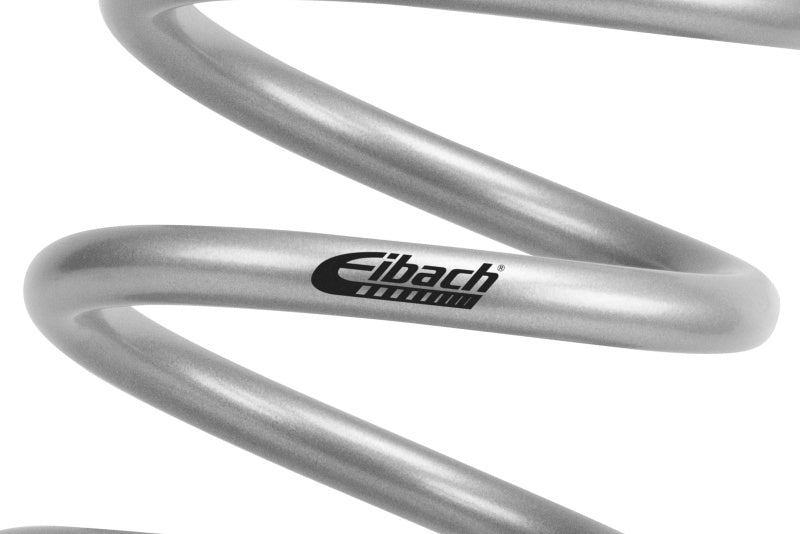

- Matched system of lift springs and shocks designed for increased travel and performance
- Provides balanced ride quality, control and off-road capability
- Manufactured by Eibach using off-road race spring technology and OE quality standards
- Shocks individually tested for matched performance in each corner
- Made in U.S.A.
Why this lift kit
Stage 1 is the bolt-on way to level or lift a half-ton without touching factory bushings or ball joints. Lift springs set the height, the front Sport shocks give you clip positions to fine-tune it, and the whole system is valved together so the truck rides like it was meant to.
At a glance
| Series | Pro-Truck-Lift Stage 1 |
|---|---|
| Part number | E80-27-011-02-22 |
| Position | Front & Rear |

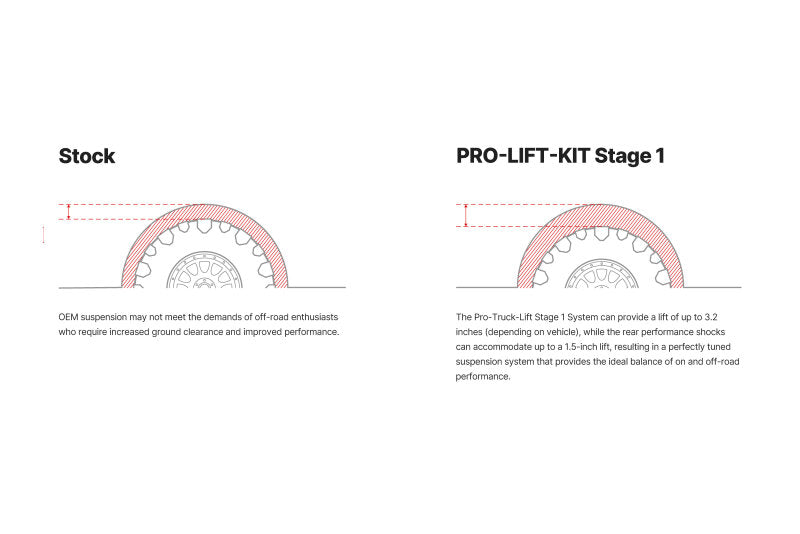

| Lift | 1-2 in Front / 0.3-1.5 in Rear |
| Drivetrain | 4WD |
| In the box | Two front Pro-Lift-Kit springs, two front clip-adjustable Pro-Truck Sport shocks, two rear Pro-Truck Sport shocks (rear lift springs included on applications Eibach lists with a rear height) |
| Shock body | 46mm piston monotube, nitrogen charged, zinc-coated body |
| Warranty | Eibach 2 year limited warranty (wear parts such as bushings 1 year) |
| Made in | Corona, California, USA |
| Availability | Stocked at the distributor, ships in 1-3 business days |
Ride height settings
Front shocks use snap-ring (clip) height positions; Eibach lists the front height with the spring on the bottom clip. Higher clips are for added front-end weight.
Before you order
- Alignment required after installation.
- Lift height varies by trim and engine per Eibach: 1.0 in front | 0.3 in rear; 1.4 in front | 0.3 in rear; 2.0 in front | 1.5 in rear.
- Eibach lists this part for TRX trims as well; fitment kept as published.
- Eibach lists this part for Rebel trims as well; fitment kept as published.
- Includes Pro-Truck Lift Springs and Pro-Truck Sport Shocks.
- Listed front height is with Eibach spring on bottom clip of Eibach Sport shocks.
- Eibach installation instructions: D4067.
Questions
Stage 1, Stage 2 or Stage 2R?
Stage 1 uses lift springs with clip-adjustable Sport shocks: set it and forget it. Stage 2 swaps the front to threaded 2.0 coilovers for infinite height adjustment. Stage 2R adds piggyback-reservoir rear shocks for heat management on long off-road runs. All three share the same rear spring and lift-block compatibility.
Do I need rear lift blocks?
Only if you want the rear higher than Eibach's listed rear height. The rear shocks in every Pro-Truck-Lift system accept the lift Eibach lists; matching Eibach lift blocks are listed under Rear Lift Block Kits for this truck.
Do I need an alignment?
Any change in ride height moves camber, caster and toe. Plan on a four-wheel alignment after installation.
What does the warranty cover?
Eibach 2 year limited warranty (wear parts such as bushings 1 year) against defects in material and workmanship, original purchaser, excluding coatings and wear parts. Claims run through the selling dealer with proof of purchase.
Eibach Pro-Truck systems
| System | Components | Height adjustment | Best for |
|---|---|---|---|
| Pro-Truck-Lift Stage 1 | Lift springs + Sport shocks | Clip positions on front shock | Daily driver, level or lift, best value |
| Pro-Truck-Lift Stage 2 | Coilover 2.0 + rear Sport shocks | Threaded perch, infinite | Heavy bumpers, winches, adjustable stance |
| Pro-Truck-Lift Stage 2R | Coilover 2.0 + rear Reservoir shocks | Threaded perch, infinite | Sustained off-road, towing on rough roads |
About Eibach
Eibach has built springs since 1951 and engineers, tests and manufactures its Pro-Truck shocks, coilovers and Pro-Lift-Kit springs in Corona, California. Springs and lift blocks carry a 5 year warranty, dampers and coilovers 2 years, all to the original purchaser.
