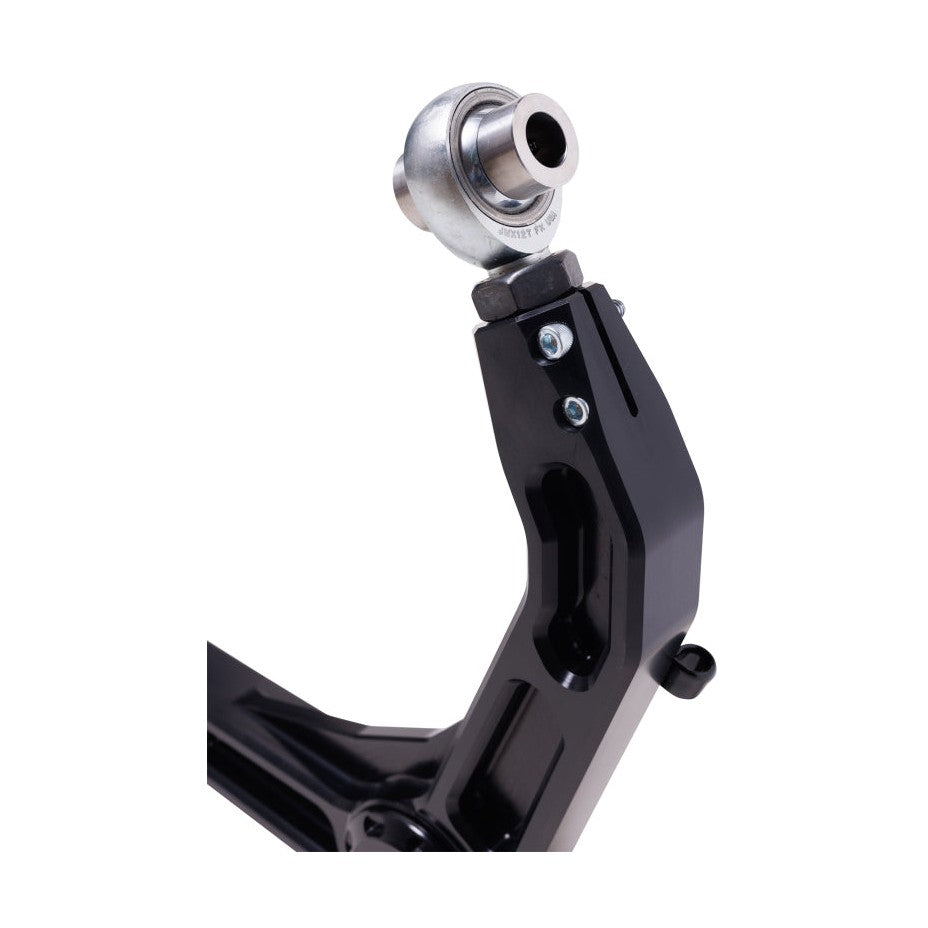

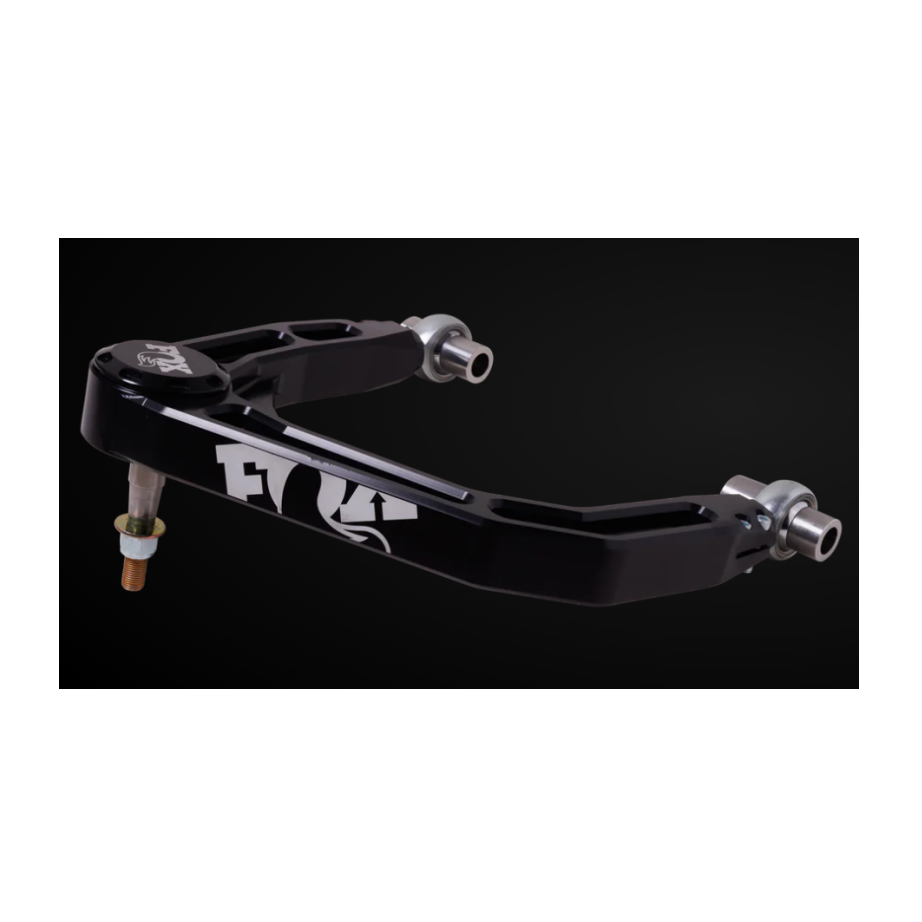

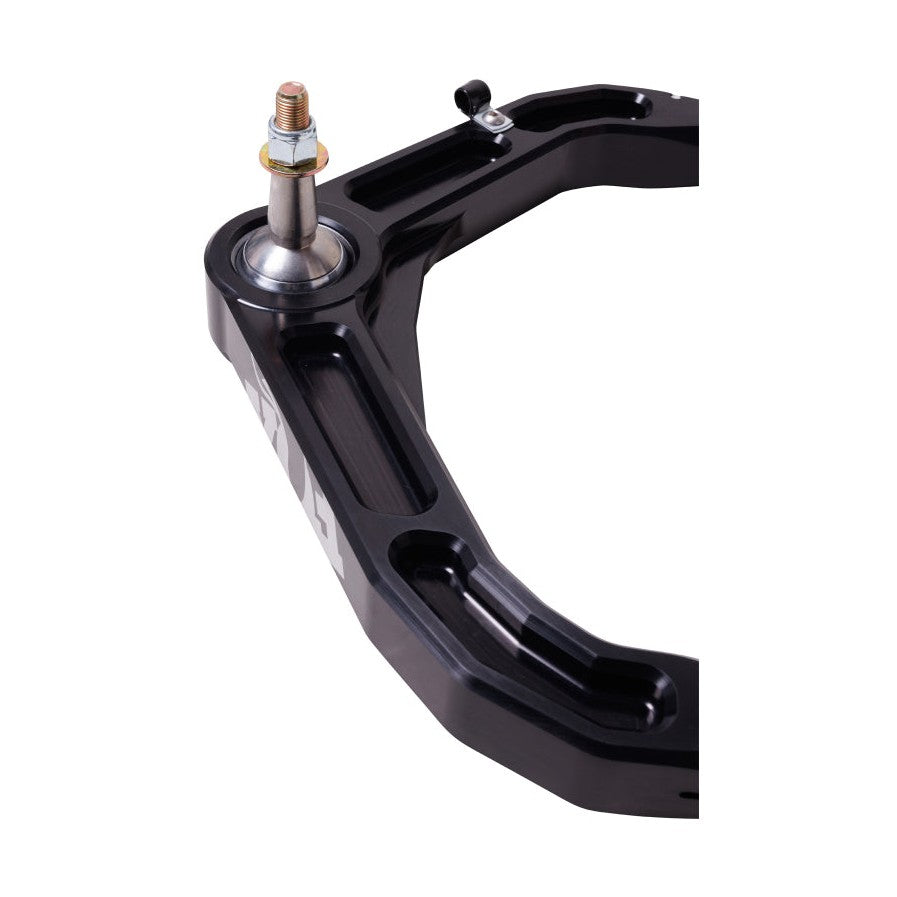

Fox Front Billet Upper Control Arms (Pair) - Black | 2009-2026 Ram 1500 2WD/4WD | 803-35-016
$1,679.95
Skip to product information
Fox Front Billet Upper Control Arms (Pair) - Black | 2009-2026 Ram 1500 2WD/4WD | 803-35-016
$1,679.95
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2009-2026 Ram 1500 2WD/4WD
Does not fit: Factory air ride
T14 fitment includes TRX trim
Why FOX upper control arms
Lifting or leveling the front of a 2009-2026 Ram 1500 tips the factory upper arms past their designed angle: camber goes positive, the ball joint runs near its limit and droop travel is cut. FOX billet upper arms restore the geometry, return alignment range, add droop and clear larger coilovers. They are built to match FOX coilovers on the same truck.
At a glance
| Position | Front, upper |
|---|---|
| Quantity | Pair (left and right) |
| Construction | CNC-machined billet aluminum |
| Finish | Black |
| For lift range | Leveled and lifted trucks running FOX coilovers or leveling struts |
| Warranty | Lifetime warranty on the arms; 12 months on serviceable components (bearings, rod ends) and finish |
What is in the box
- Two FOX billet aluminum upper control arms (left and right)
- Ball joints and bushings or bearings installed
- FOX installation instructions
Manufacturer part number 803-35-016. Designed and built by FOX Factory.
Questions
When do I need upper control arms?
Any time the front is leveled or lifted more than about 2 in, or whenever an alignment shop cannot bring camber back into spec after a leveling kit.
Do I need an alignment?
Yes, always after replacing control arms.
Are they serviceable?
Yes. Ball joints, bearings and bushings are replaceable; FOX covers the arms for life and the serviceable components and finish for 12 months.
About FOX
FOX Factory has built race-winning dampers since 1974 and supplies factory suspension to Ford, Ram, GM and Toyota off-road trims. Every FOX truck shock is aluminum-bodied, fully serviceable and tuned for the specific vehicle. Lifetime warranty on the arms; 12 months on serviceable components (bearings, rod ends) and finish. Hannah Suspension ships genuine FOX parts with full factory warranty; keep your order confirmation, FOX warranties run to the original purchaser.
