Fox 2.0 Performance Series Front Coilover | 2019-2026 Chevy Silverado 1500 / GMC Sierra 1500 2WD/4WD | 0-2 in Lift | 985-24-209
$239.95
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2019-2026 Chevy Silverado 1500 2WD/4WD
- 2019-2026 GMC Sierra 1500 2WD/4WD
T14 fitment includes Trail Boss trim
T14 fitment includes ZR2 trim
T14 fitment includes AT4 trim
T14 fitment includes AT4X trim
Why the FOX 2.0 Performance Series coilover

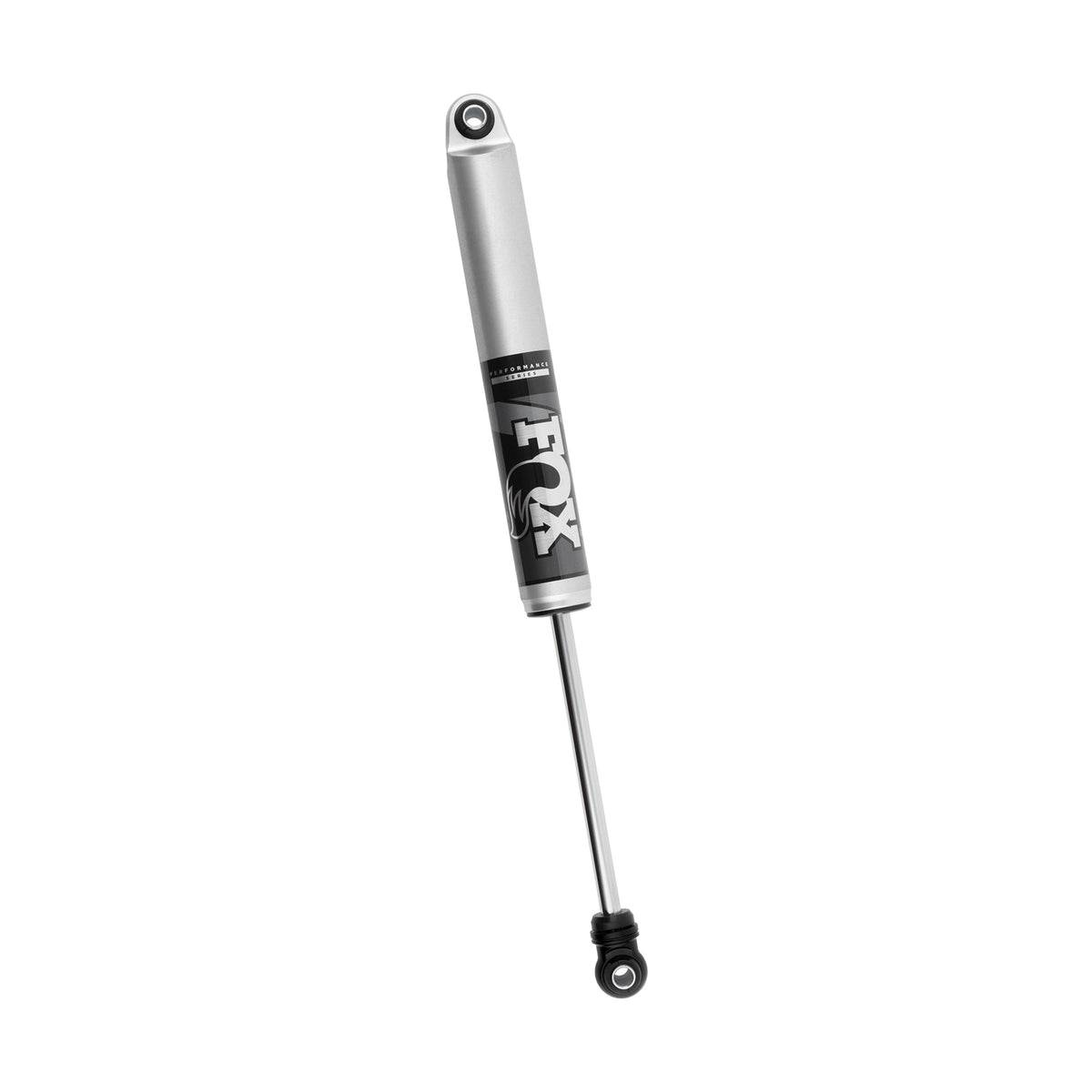

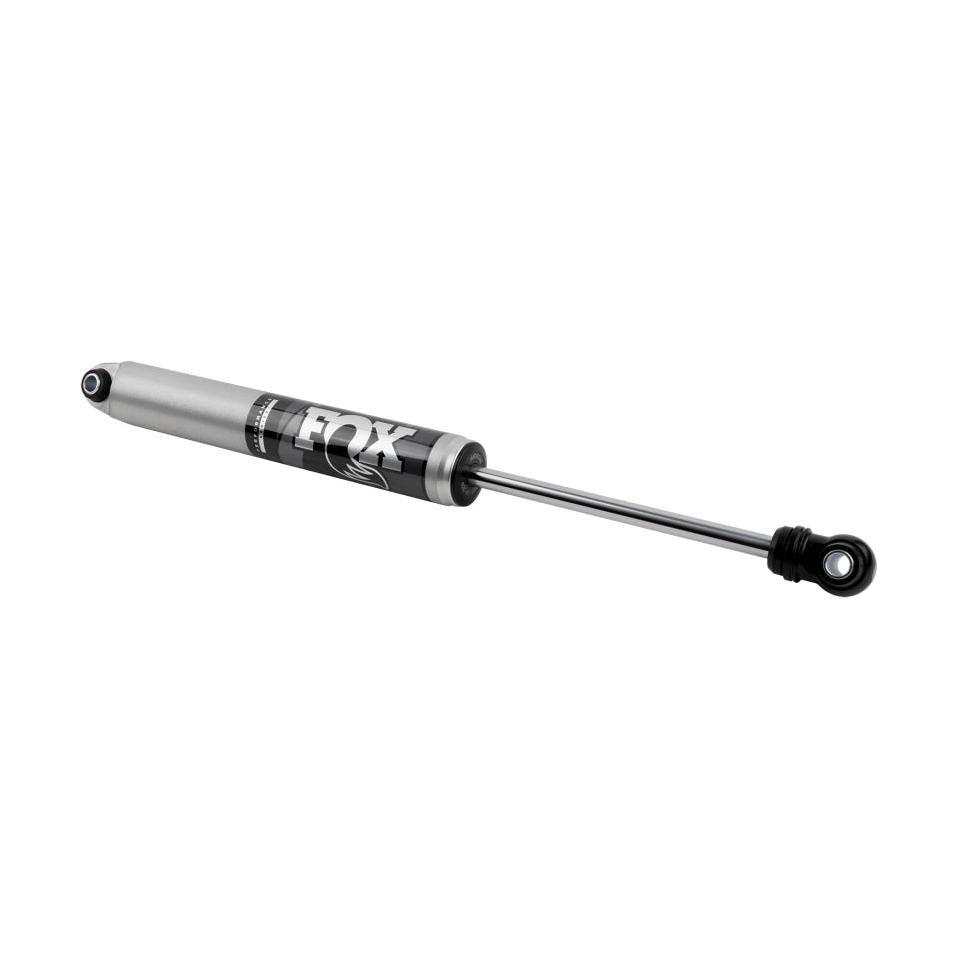

Daily-driven and leveled or lifted trucks that want a real monotube with vehicle-specific valving at the entry point of the FOX line. This is a complete front coilover assembly for the 2019-2026 Chevy Silverado 1500 / GMC Sierra 1500 2WD/4WD: FOX shock, FOX-selected coil spring and preload collar, ready to bolt in place of the factory strut. Set the collar anywhere from stock height to 0 to 2 in of front lift to level the truck, with damping that actually matches the new ride height instead of a spacer stacked on a worn factory strut. Fully rebuildable and re-valvable.
At a glance
| Position | Front |
|---|---|
| Quantity | One coilover |
| Body diameter | 2.0 in |
| Shaft | 5/8 in hard chrome plated |
| Architecture | Monotube IFP coilover |
| Adjustment | Damping factory tuned; ride height set by spring preload collar |
| Ride height | 0 to 2 in adjustable |
| Coil spring | Included, rate selected by FOX for this vehicle |
| Warranty | Limited lifetime warranty (FOX 2.0 and 2.5 Performance Series purchased after 3/30/2025) |
What is in the box
- One coilover with coil spring, preload collar and spring hardware installed
- FOX installation instructions (also at tech.ridefox.com)
Manufacturer part number 985-24-209. Designed and built by FOX Factory.
Questions
Does this level my truck?
Yes. Setting the preload collar higher raises the front end within the range shown; most owners set 1.5 to 2 in to level the factory rake. Above about 2 in FOX and most alignment shops recommend aftermarket upper control arms to keep camber and ball joint angle in range.
Do I need an alignment?
Yes. Any change in front ride height changes camber and toe; align the truck after install and again after the springs settle.
Do I need two?
This part number is one coilover. Order two for the front axle.
Will it fit with my rear shocks?
Pair it with the matching FOX rear shock for the same lift range so front and rear damping are tuned together.
Is it rebuildable?
Yes. FOX Factory and authorized service centers rebuild, re-charge and re-valve every FOX truck coilover.
What is the warranty?
Limited lifetime warranty (FOX 2.0 and 2.5 Performance Series purchased after 3/30/2025). Warranty is to the original retail purchaser through the place of purchase; keep your Hannah Suspension order confirmation.
FOX truck shock lines
| Line | Body | Architecture | Adjuster | Warranty |
|---|---|---|---|---|
| 2.0 Performance Series | 2.0 in | IFP or remote reservoir | None (CD on select R/R) | Lifetime (IFP) / 1 yr (R/R) |
| 2.5 Performance Series | 2.5 in | IFP, HTO on select | None | Lifetime |
| 2.5 Performance Elite | 2.5 in | Reservoir | DSC dual speed | 1 year |
| 2.5 Factory Series | 2.5 in | Reservoir | DSC where fitted | 1 year |
| 3.0 Factory Race / Series | 3.0 in | Reservoir, internal bypass | None | 1 year |
| 3.2 Factory Race Live Valve | 3.2 in | Reservoir, Live Valve | Electronic | 1 year |
About FOX
FOX Factory has built race-winning dampers since 1974 and supplies factory suspension to Ford, Ram, GM and Toyota off-road trims. Every FOX truck shock is aluminum-bodied, fully serviceable and tuned for the specific vehicle. Limited lifetime warranty (FOX 2.0 and 2.5 Performance Series purchased after 3/30/2025). Hannah Suspension ships genuine FOX parts with full factory warranty; keep your order confirmation, FOX warranties run to the original purchaser.
