Fox 2.0 Performance Front Coilover & Rear Shock Kit | 2021-2026 Ford F-150 4WD | 0-2 in Lift
Factory arms
$1,719.80
Skip to product information
Fox 2.0 Performance Front Coilover & Rear Shock Kit | 2021-2026 Ford F-150 4WD | 0-2 in Lift
$1,719.80
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2021-2026 Ford F-150 4WD, stock height, leveled 0 to 2 in by the coilovers themselves
Does not fit: 2WD trucks, Lightning. See the Raptor and Tremor note below.
Why this kit
The complete Fox 2.0 leveling set for the current F-150 4WD in one order. The 985-02-015 is a full coilover assembly: 2.0 Performance Series IFP strut, FOX-selected coil spring, top mount and locking preload rings, so it drops in place of the factory strut with no spring compressor and the ride height is set on the rings from stock to 2 in of front lift. Two of those up front and two 985-24-265 IFP rears sized for the 2021+ rear. Same aluminum body and race-derived piston across all four, so the truck levels, stops nose-diving over dips, and keeps a trailer planted. Running the coilovers at the top of their range or on a truck that sees real dirt? Add the FOX billet upper control arms with the selector above.
At a glance
| Kit contents | 2 front coilover assemblies + 2 rear shocks (one complete truck) |
|---|---|
| Front | Fox 2.0 Performance Series coilover 985-02-015, adjustable 0 to 2 in front lift |

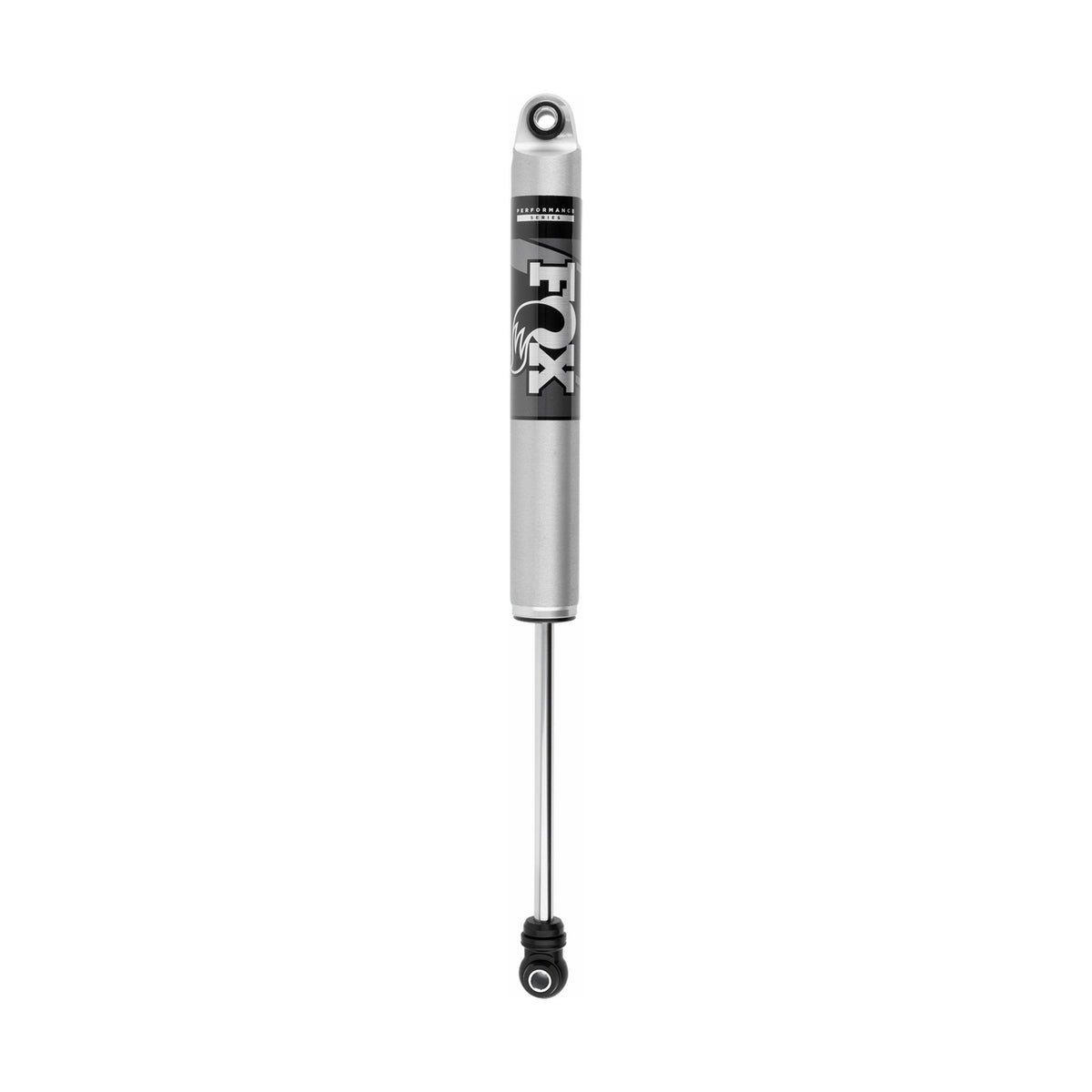

| Rear | Fox 2.0 Performance IFP 985-24-265, for 0 to 1 in rear lift |
| Upper control arm option | Add a pair of Fox billet aluminum UCAs 803-35-015 in FOX orange anodize with the selector above |
| Design | 2.0 in impact-extruded 6061-T6 aluminum body, internal floating piston, 5/8 in hard chrome shaft, spring and top mount included on the fronts |
| Drivetrain | 4WD |
| Requires | Alignment after install. Aftermarket upper control arms recommended above 2 in. |
| Warranty | FOX limited lifetime warranty (Performance Series purchased after 3/30/2025) |
What is in the box
- 2 x Fox 2.0 Performance Series front coilover assembly, part number 985-02-015, spring and top mount fitted
- 2 x Fox 2.0 Performance Series IFP rear shock, part number 985-24-265
- Optional: 1 x Fox billet upper control arm pair, orange, part number 803-35-015, with uniballs, heims and hardware, when selected
- Bushings, washers and hardware. Factory mounting bolts are reused
Questions
Is this a leveling kit?
Yes, in effect. The coilover replaces the factory strut and spring and the preload rings set the front anywhere from stock to 2 in higher, which removes the factory rake. No spacer, no spring compressor. FOX ships them set toward the top of the range; back the rings off for less lift.
Do I need upper control arms?
Not at 2 in or below on pavement. If you run the rings all the way up, add a spacer on top, or use the truck off road where the front cycles through full droop, FOX recommends aftermarket UCAs to keep the ball-joint angle and alignment in range. The FOX billet arms (803-35-015) bolt in with 1.25 in uniballs and chromoly heims; pick "Add FOX billet UCAs" above. The same arm in black anodize is 803-35-014, available on request.
Raptor or Tremor?
Turn 14 lists these part numbers for the Raptor and Tremor, but both trucks come with FOX or Tremor-specific suspension from the factory and most FOX dealers do not fit this coilover to them. Call before ordering for either.
How long does installation take?
Fronts are a strut swap, about 45 to 60 minutes per side with the coilover already assembled. Rears are 20 to 30 minutes per side. Add about an hour per side for the UCAs. Get an alignment afterward.
What is the warranty?
FOX covers 2.0 and 2.5 Performance Series IFP shocks and coilovers purchased after 3/30/2025 with a limited lifetime warranty against defects, to the original retail owner through the original place of purchase. The billet UCAs carry FOX's limited warranty. Keep your Hannah Suspension order confirmation.
About FOX
FOX Factory has built racing and off-road dampers since 1974 and supplies factory shocks for the Ford Raptor, Ram TRX and Chevy ZR2. The 2.0 Performance Series brings that race-developed piston and valving to a bolt-on truck shock. Hannah Suspension ships genuine FOX parts with full factory warranty.
