Fox 2.0 Performance Reservoir Front & Rear Shock Kit | 2003-2013 Ram 2500/3500 2WD/4WD | 2-4 in Lift
$1,427.80
Skip to product information
Fox 2.0 Performance Reservoir Front & Rear Shock Kit | 2003-2013 Ram 2500/3500 2WD/4WD | 2-4 in Lift
Fox 2.0 Performance Reservoir Front & Rear Shock Kit | 2003-2013 Ram 2500/3500 2WD/4WD | 2-4 in Lift
$1,427.80
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2003-2013 Ram 2500/3500 2WD/4WD, leaf-spring rear, with 2 to 4 in of front lift and 2 to 4 in of rear lift
Does not fit: stock height trucks (use the 0-2 in reservoir kit), trucks lifted 4.5 in or more (use the 4-6 in reservoir kit), factory air ride
Why this kit
The remote reservoir Fox 2.0 for a Ram HD on a 2 to 4 in lift, taller coils or a spacer with rear blocks. Two 985-24-021 fronts and two 985-24-022 rears, both sized for 2 to 4 in of lift, each with a separate reservoir that roughly doubles the oil volume and keeps the nitrogen out of the shock body. On a lifted Cummins that tows or runs long dirt roads, that extra capacity is the difference between a shock that stays consistent all day and one that goes soft by noon. Reservoir clamps included.
At a glance
| Kit contents | 2 front reservoir shocks + 2 rear reservoir shocks |
|---|---|
| Front | Fox 2.0 Performance Reservoir 985-24-021, for 2 to 4 in front lift |
| Rear | Fox 2.0 Performance Reservoir 985-24-022, for 2 to 4 in rear lift, leaf rear |
| Design | 2.0 in aluminum body, remote reservoir with braided hose, 5/8 in hard chrome shaft |
| Drivetrain | 2WD and 4WD |
| Warranty | FOX limited warranty, 1 year (2.0 remote reservoir is excluded from the lifetime program) |
What is in the box
- 2 x Fox 2.0 Performance Series remote reservoir front shock, part number 985-24-021

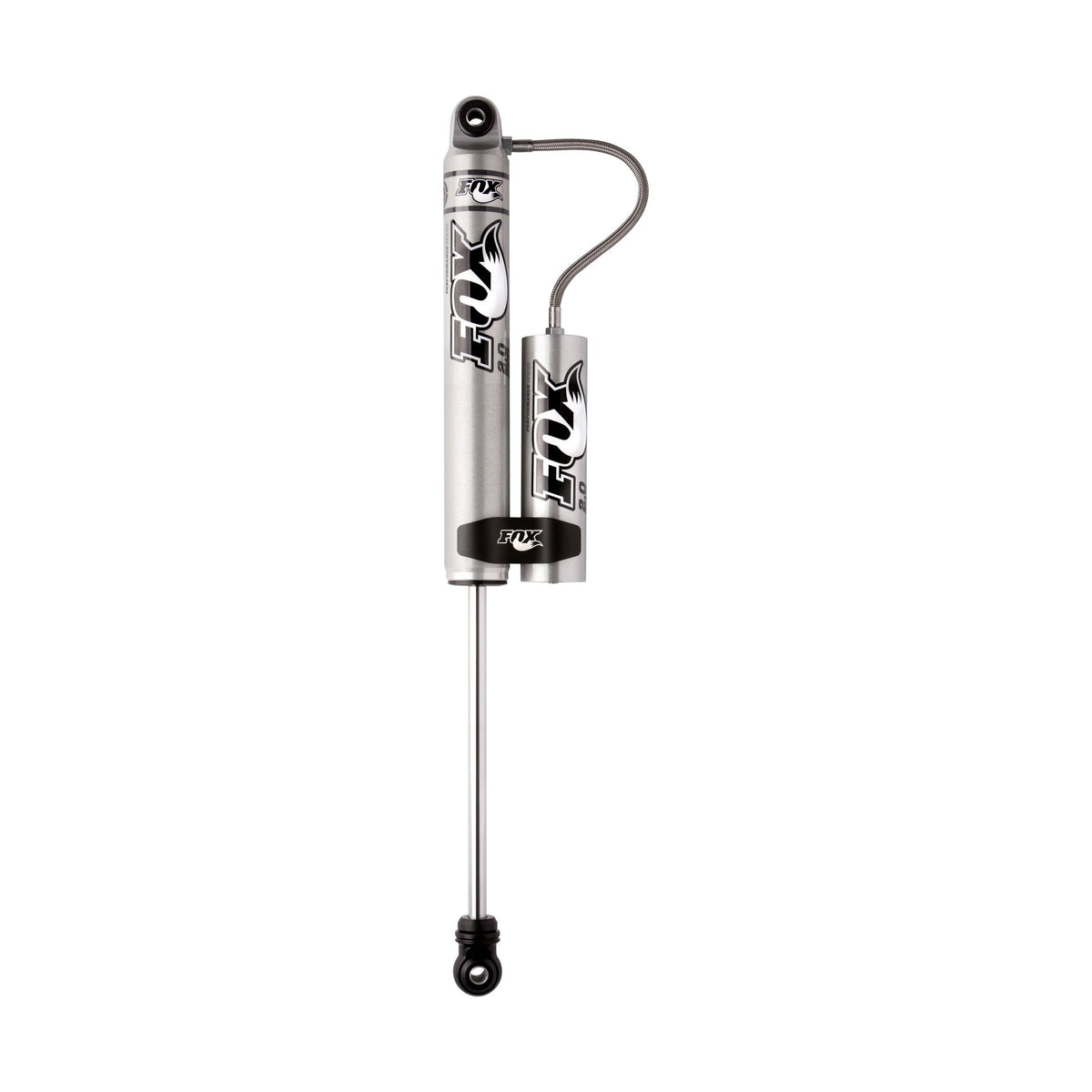

- 2 x Fox 2.0 Performance Series remote reservoir rear shock, part number 985-24-022
- Reservoir clamps, bushings, washers and hardware. Factory mounting bolts are reused
Questions
Reservoir or IFP?
The IFP kit does the job for a daily driven truck and carries FOX's lifetime warranty. The reservoir adds oil capacity and heat rejection, which matters if you tow heavy in hot weather or run long dirt roads, and carries a one-year warranty. Same valving philosophy, more headroom.
I have a 2 in leveling spacer only. Which kit?
Either works at exactly 2 in. Below 2 in of front lift, use the 0-2 in reservoir kit. If the rear is stock with a 2.5 to 4 in front, pair this 985-24-021 front with the 980-24-945 rear, both sold individually.
Where do the reservoirs mount?
To the frame near each shock with the supplied clamps and hose. Plan on 45 to 60 minutes per corner including bracket placement, no spring compressor needed.
What is the warranty?
FOX warrants 2.0 Performance Series remote reservoir shocks against defects for one year to the original retail owner through the original place of purchase. Keep your Hannah Suspension order confirmation.
About FOX
FOX Factory has built racing and off-road dampers since 1974 and supplies factory shocks for the Ford Raptor, Ram TRX and Chevy ZR2. The 2.0 Performance Series brings that race-developed piston and valving to a bolt-on truck shock. Hannah Suspension ships genuine FOX parts with full factory warranty.
