Fox 2.0 Performance Reservoir Front & Rear Shock Kit | 2005-2016 Ford F-250/F-350 Super Duty 2WD/4WD | 4-5 in Lift
Shocks only
$1,427.80
Skip to product information
Fox 2.0 Performance Reservoir Front & Rear Shock Kit | 2005-2016 Ford F-250/F-350 Super Duty 2WD/4WD | 4-5 in Lift
$1,427.80
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2005-2016 Ford F-250/F-350 Super Duty 2WD/4WD with 4 to 5 in of front lift and 4 to 6 in of rear lift
Does not fit: stock or leveled trucks, lifts under 4 in, front lifts over 5 in (use the 985-24-101 front, sold individually), 2017 and newer trucks
Why this kit
The remote reservoir Fox 2.0 for a 2005-2016 Super Duty on a 4 to 4.5 in lift kit. Two 985-24-133 fronts for 4 to 5 in of front lift and two 985-24-106 rears for 4 to 6 in of rear lift, each with a separate reservoir that roughly doubles the oil volume and keeps the nitrogen out of the shock body. A tall Super Duty on 35s or 37s works its shocks harder than anything else on the road; the reservoir is what keeps the damping consistent through a hot day of it. Aluminum body, race-derived high-flow piston, application-specific valving, reservoir clamps included.
At a glance
| Kit contents | 2 front reservoir shocks + 2 rear reservoir shocks |
|---|---|
| Front | Fox 2.0 Performance Reservoir 985-24-133, for 4 to 5 in front lift |
| Rear | Fox 2.0 Performance Reservoir 985-24-106, for 4 to 6 in rear lift |
| Design | 2.0 in aluminum body, remote reservoir with braided hose, 5/8 in hard chrome shaft |
| Drivetrain | 2WD and 4WD |
| Steering stabilizer option | Add one Fox 2.0 Performance IFP steering stabilizer 985-24-001 (2008-2016 trucks) with the selector above |
| Warranty | FOX limited warranty, 1 year (2.0 remote reservoir is excluded from the lifetime program) |
What is in the box
- 2 x Fox 2.0 Performance Series remote reservoir front shock, part number 985-24-133

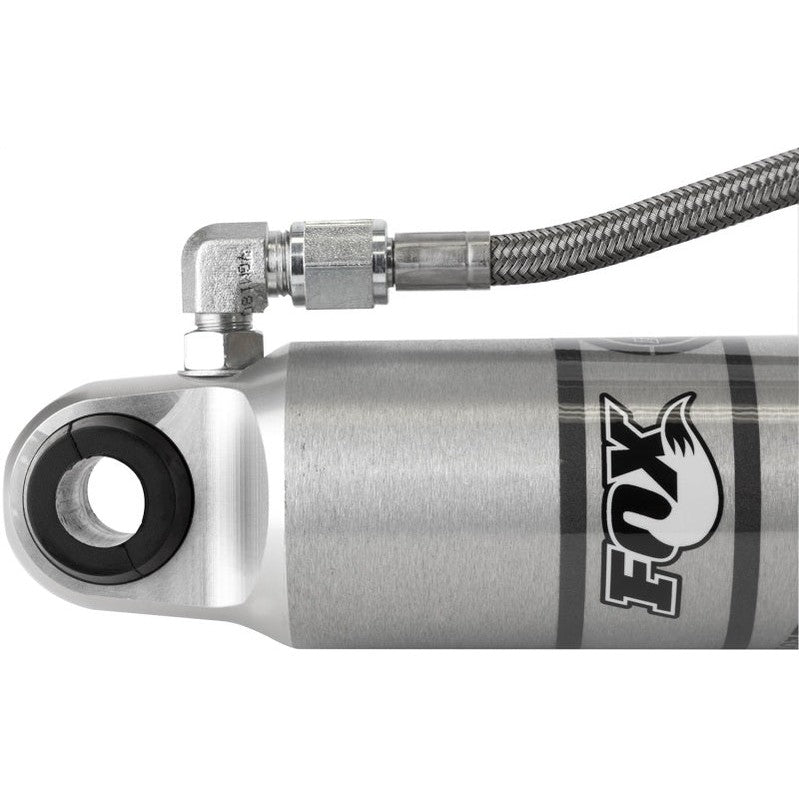

- 2 x Fox 2.0 Performance Series remote reservoir rear shock, part number 985-24-106
- Optional: 1 x Fox 2.0 Performance Series IFP steering stabilizer, part number 985-24-001, when selected
- Reservoir clamps, bushings, washers and hardware. Factory or lift kit mounting bolts are reused
Questions
Reservoir or IFP?
The IFP kit does the job for a daily driven truck and carries FOX's lifetime warranty. The reservoir adds oil capacity and heat rejection, which matters if you tow heavy in hot weather or run long dirt roads, and carries a one-year warranty. Same valving philosophy, more headroom.
My lift is 6 in. Will this work?
The rear covers 4 to 6 in, but the front only covers 4 to 5 in. For a 5.5 to 7 in front, FOX lists the 985-24-101 reservoir front, sold individually. Match the front to your actual front lift.
Should I add the steering stabilizer?
On a lifted truck with 35s or 37s, almost always yes. The 985-24-001 is a 2.0 IFP damper on the drag link that bolts to the factory stabilizer mounts in about 20 minutes and fits 2008-2016 Super Duty at any lift height. Pick "Shocks + steering stabilizer" above to add one. 2005-2007 trucks use a different damper; choose "Shocks only."
Where do the reservoirs mount?
To the frame near each shock with the supplied clamps and hose. Plan on 45 to 60 minutes per corner including bracket placement.
What is the warranty?
FOX warrants 2.0 Performance Series remote reservoir shocks against defects for one year to the original retail owner through the original place of purchase. Keep your Hannah Suspension order confirmation.
About FOX
FOX Factory has built racing and off-road dampers since 1974 and supplies factory shocks for the Ford Raptor, Ram TRX and Chevy ZR2. The 2.0 Performance Series brings that race-developed piston and valving to a bolt-on truck shock. Hannah Suspension ships genuine FOX parts with full factory warranty.
