Fox 2.0 Performance Reservoir Front & Rear Shock Kit | 2005-2016 Ford F-250/F-350 Super Duty 2WD/4WD | Stock Height
Shocks only
$1,427.80
Skip to product information
Fox 2.0 Performance Reservoir Front & Rear Shock Kit | 2005-2016 Ford F-250/F-350 Super Duty 2WD/4WD | Stock Height
$1,427.80
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2005-2016 Ford F-250/F-350 Super Duty 2WD/4WD at stock height or with up to 1.5 in front and 1 in rear lift
Does not fit: Factory lift packages, trucks leveled 2 in or more, 2017 and newer trucks
Why this kit
The remote reservoir Fox 2.0 for a stock-height 6.0, 6.4 or 6.7 Super Duty that still earns its keep. Same 2 in aluminum body and race-derived piston as the IFP shock, plus a separate reservoir that roughly doubles the oil volume and moves the nitrogen charge out of the shock body, so damping does not fade on long washboard or in summer heat with a fifth wheel on. Two 985-24-120 fronts for 0 to 1.5 in of front lift and two 985-24-104 rears for 0 to 1 in of rear lift, with reservoir clamps included. A big step past the worn factory shocks most of these trucks are still wearing.
At a glance
| Kit contents | 2 front reservoir shocks + 2 rear reservoir shocks |
|---|---|
| Front | Fox 2.0 Performance Reservoir 985-24-120, for 0 to 1.5 in front lift |
| Rear | Fox 2.0 Performance Reservoir 985-24-104, for 0 to 1 in rear lift |
| Design | 2.0 in aluminum body, remote reservoir with braided hose, 5/8 in hard chrome shaft |
| Drivetrain | 2WD and 4WD |
| Steering stabilizer option | Add one Fox 2.0 Performance IFP steering stabilizer 985-24-001 (2008-2016 trucks) with the selector above |
| Warranty | FOX limited warranty, 1 year (2.0 remote reservoir is excluded from the lifetime program) |
What is in the box
- 2 x Fox 2.0 Performance Series remote reservoir front shock, part number 985-24-120

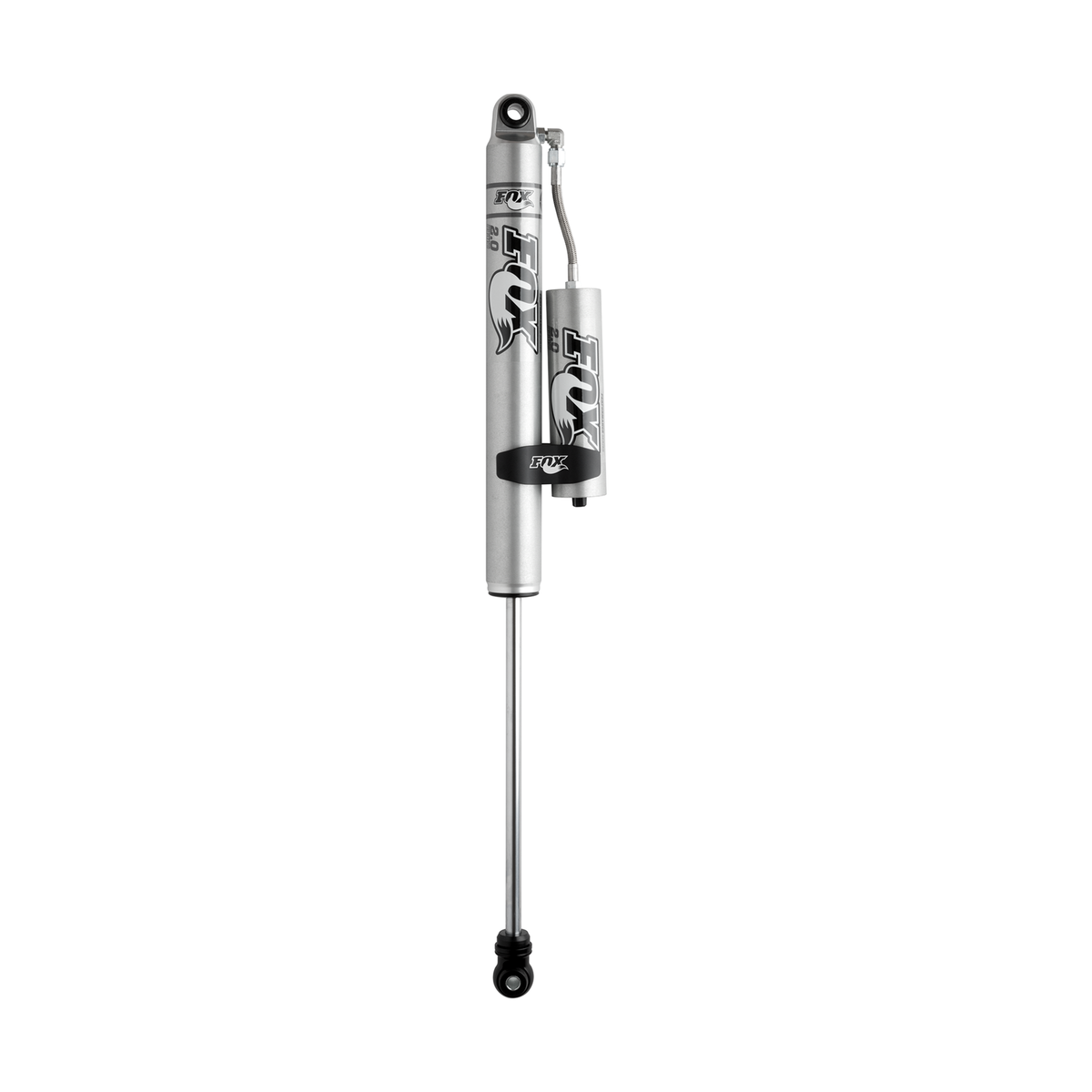

- 2 x Fox 2.0 Performance Series remote reservoir rear shock, part number 985-24-104
- Optional: 1 x Fox 2.0 Performance Series IFP steering stabilizer, part number 985-24-001, when selected
- Reservoir clamps, bushings, washers and hardware. Factory mounting bolts are reused
Questions
Reservoir or IFP?
The IFP kit does the job for a daily driven truck and carries FOX's lifetime warranty. The reservoir adds oil capacity and heat rejection, which matters if you tow heavy in hot weather or run long dirt roads, and carries a one-year warranty. Same valving philosophy, more headroom.
My truck has a 2 in leveling kit. Is this the right set?
No. Pair the 985-24-121 front (2 to 3.5 in) with this 985-24-104 rear, both sold individually, or ask us and we will pair them for you.
Should I add the steering stabilizer?
If the truck wanders on the highway, follows ruts, or twitches on bigger tires, yes. The 985-24-001 is a 2.0 IFP damper on the drag link that bolts to the factory stabilizer mounts in about 20 minutes and fits 2008-2016 Super Duty. Pick "Shocks + steering stabilizer" above to add one. 2005-2007 trucks use a different damper; choose "Shocks only."
Where do the reservoirs mount?
To the frame near each shock with the supplied clamps and hose. Plan on 45 to 60 minutes per corner including bracket placement, no spring compressor needed.
What is the warranty?
FOX warrants 2.0 Performance Series remote reservoir shocks against defects for one year to the original retail owner through the original place of purchase. Keep your Hannah Suspension order confirmation.
About FOX
FOX Factory has built racing and off-road dampers since 1974 and supplies factory shocks for the Ford Raptor, Ram TRX and Chevy ZR2. The 2.0 Performance Series brings that race-developed piston and valving to a bolt-on truck shock. Hannah Suspension ships genuine FOX parts with full factory warranty.
