Fox 2.0 Performance Reservoir Front & Rear Shock Kit | 2011-2019 Chevy/GMC 2500HD/3500HD 2WD/4WD | 7-9 in Lift
$1,427.80
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2011-2019 Chevy Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD, 2WD and 4WD, with a 7 to 9 in lift kit (front 7 to 9 in, rear 7 to 10 in)
Does not fit: trucks lifted 6 in or less (use the 4-6 in reservoir kit), stock or leveled trucks
Why this kit
The remote reservoir Fox 2.0 for a GM HD on a 7 to 9 in big-bracket lift. Two 980-24-968 fronts rated for 7 to 9 in of front lift and two 980-24-957 rears rated for 7 to 10 in of rear lift, the longest 2.0 Performance Series lengths FOX lists for the truck, each with a separate reservoir that roughly doubles the oil volume and keeps the nitrogen out of the shock body. A tall truck on big tires works its shocks harder than anything else on the road; the reservoir is what keeps the damping consistent through a hot day of it. Aluminum body, race-derived high-flow piston, application-specific valving, reservoir clamps included.
At a glance
| Kit contents | 2 front reservoir shocks + 2 rear reservoir shocks |
|---|---|
| Front | Fox 2.0 Performance Reservoir 980-24-968, for 7 to 9 in front lift |
| Rear | Fox 2.0 Performance Reservoir 980-24-957, for 7 to 10 in rear lift |
| Design | 2.0 in aluminum body, remote reservoir with braided hose, 5/8 in hard chrome shaft |
| Drivetrain | 2WD and 4WD |
| Warranty | FOX limited warranty, 1 year (2.0 remote reservoir is excluded from the lifetime program) |
What is in the box
- 2 x Fox 2.0 Performance Series remote reservoir front shock, part number 980-24-968

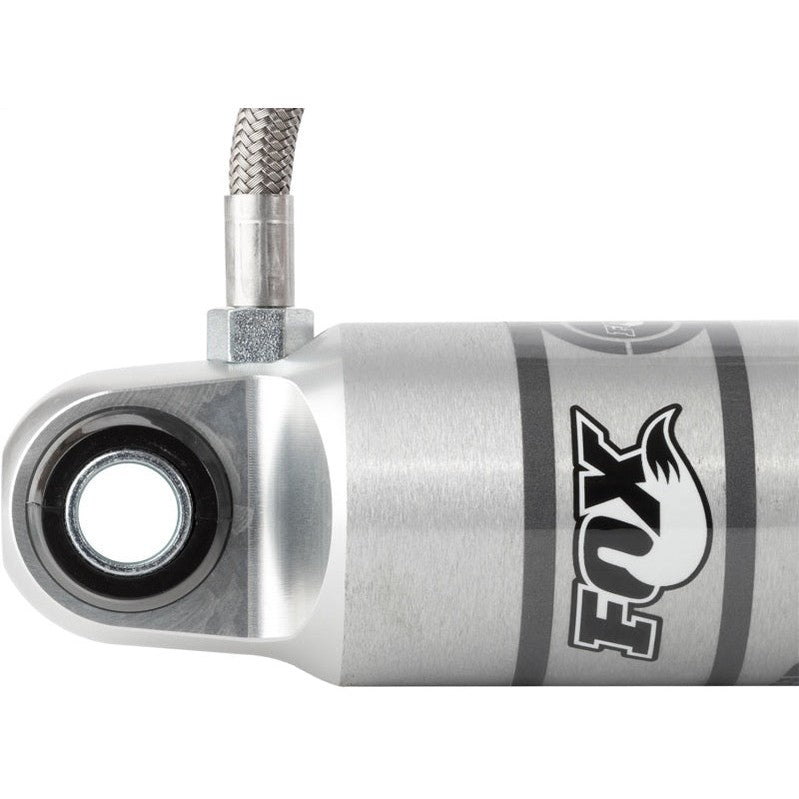

- 2 x Fox 2.0 Performance Series remote reservoir rear shock, part number 980-24-957
- Reservoir clamps, bushings, washers and hardware. Lift kit mounting bolts are reused
Questions
My kit is 7.5 in. Front and rear both covered?
Yes. The front covers 7 to 9 in and the rear 7 to 10 in, so any 7, 7.5, 8 or 9 in kit is inside both bands.
Reservoir or IFP?
The IFP kit does the job for a daily driven truck and carries FOX's lifetime warranty. The reservoir adds oil capacity and heat rejection, which matters if you tow heavy in hot weather or run long dirt roads, and carries a one-year warranty. Same valving philosophy, more headroom.
Where do the reservoirs mount?
To the frame near each shock with the supplied clamps and hose. Plan on 45 to 60 minutes per corner including bracket placement.
What is the warranty?
FOX warrants 2.0 Performance Series remote reservoir shocks against defects for one year to the original retail owner through the original place of purchase. Keep your Hannah Suspension order confirmation.
About FOX
FOX Factory has built racing and off-road dampers since 1974 and supplies factory shocks for the Ford Raptor, Ram TRX and Chevy ZR2. The 2.0 Performance Series brings that race-developed piston and valving to a bolt-on truck shock. Hannah Suspension ships genuine FOX parts with full factory warranty.
