Fox 2.0 Performance Reservoir Front & Rear Shock Kit | 2011-2019 Chevy/GMC 2500HD/3500HD 2WD/4WD | Stock Height
$1,427.80
Skip to product information
Fox 2.0 Performance Reservoir Front & Rear Shock Kit | 2011-2019 Chevy/GMC 2500HD/3500HD 2WD/4WD | Stock Height
$1,427.80
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2011-2019 Chevy Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD, 2WD and 4WD, at stock height or with up to 1 in of lift
Does not fit: trucks leveled 1.5 in or more with torsion keys or spacers (use the 1.5-3.5 in Front Leveling reservoir kit), trucks with a 4 in or taller lift kit
Why this kit
The remote reservoir version of the Fox 2.0 for a stock-height GM HD that works for a living. Same 2 in aluminum body and race-derived piston as the IFP shock, plus a separate reservoir that roughly doubles the oil volume and moves the nitrogen charge out of the shock body, so damping does not fade on long washboard, in summer heat with a heavy trailer, or on repeated big hits. Two 980-24-964 fronts and two 980-24-955 rears, both for 0 to 1 in of lift, with reservoir clamps included. The tow and haul shock for a truck that stays at factory height.
At a glance
| Kit contents | 2 front reservoir shocks + 2 rear reservoir shocks |
|---|---|
| Front | Fox 2.0 Performance Reservoir 980-24-964, for 0 to 1 in front lift |
| Rear | Fox 2.0 Performance Reservoir 980-24-955, for 0 to 1 in rear lift |
| Design | 2.0 in aluminum body, remote reservoir with braided hose, 5/8 in hard chrome shaft |
| Drivetrain | 2WD and 4WD |
| Warranty | FOX limited warranty, 1 year (2.0 remote reservoir is excluded from the lifetime program) |
What is in the box
- 2 x Fox 2.0 Performance Series remote reservoir front shock, part number 980-24-964

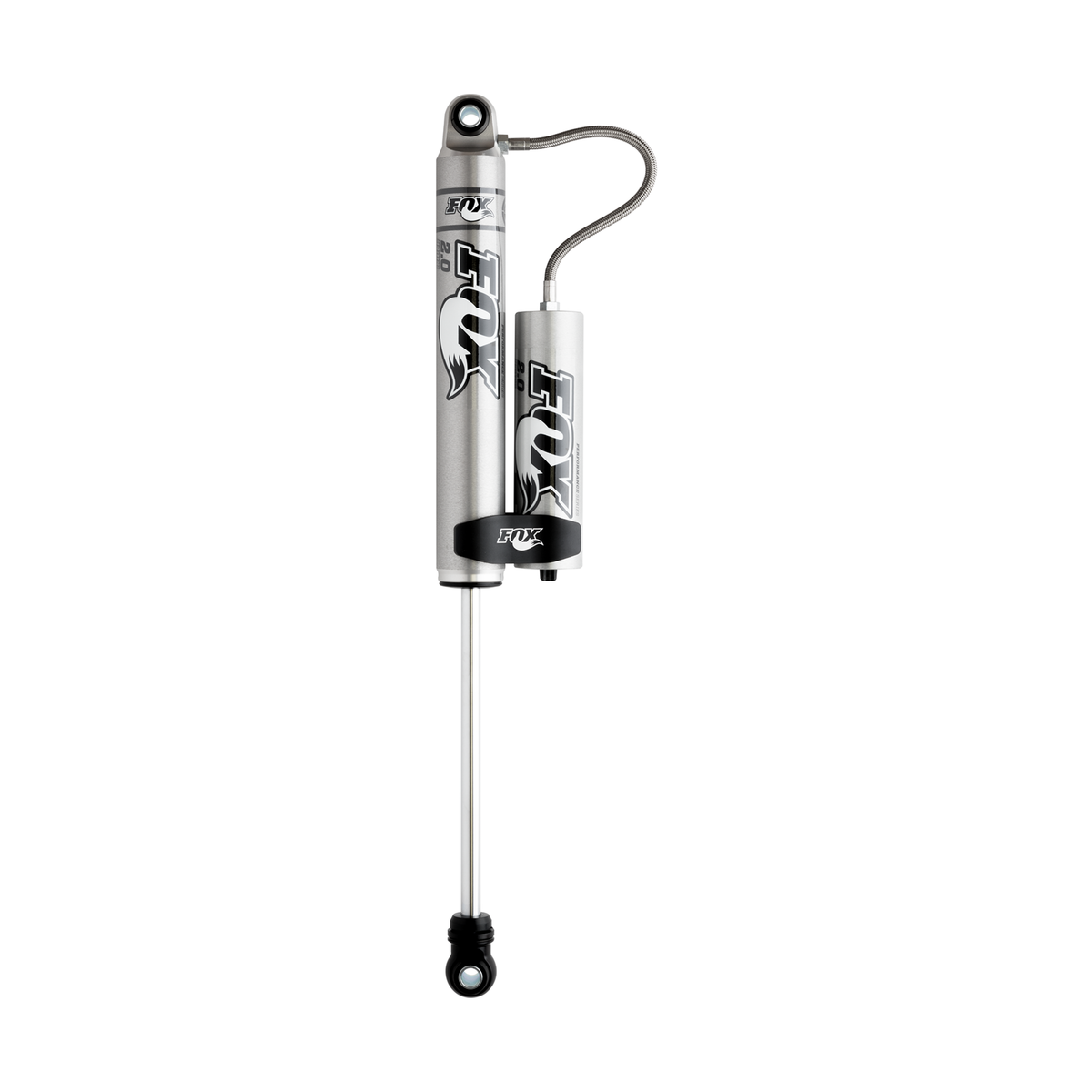

- 2 x Fox 2.0 Performance Series remote reservoir rear shock, part number 980-24-955
- Reservoir clamps, bushings, washers and hardware. Factory mounting bolts are reused
Questions
Reservoir or IFP?
The IFP kit does the job for a daily driven truck and carries FOX's lifetime warranty. The reservoir adds oil capacity and heat rejection, which matters if you tow heavy in hot weather or run long dirt roads, and carries a one-year warranty. Same valving philosophy, more headroom.
Where do the reservoirs mount?
To the frame near each shock with the supplied clamps and hose. On the GM HD the fronts tuck behind the lower control arm mount and the rears go on the frame rail above the axle. Plan on 45 to 60 minutes per corner including bracket placement, no spring compressor needed.
I turned the torsion keys up. Still this kit?
Up to 1 in of key adjustment stays on this set. At 1.5 in or more above stock, use the Front Leveling reservoir kit with the longer 985-24-191 front and the same 980-24-955 rear.
What is the warranty?
FOX warrants 2.0 Performance Series remote reservoir shocks against defects for one year to the original retail owner through the original place of purchase. Keep your Hannah Suspension order confirmation.
About FOX
FOX Factory has built racing and off-road dampers since 1974 and supplies factory shocks for the Ford Raptor, Ram TRX and Chevy ZR2. The 2.0 Performance Series brings that race-developed piston and valving to a bolt-on truck shock. Hannah Suspension ships genuine FOX parts with full factory warranty.
