Fox 3.0 Factory Series Front (Raptor) Reservoir Coilover Set | 2017-2018 Ford F-150 2WD/4WD | Adjustable Lift | 883-06-140
$3,899.95
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2017-2018 Ford F-150 2WD/4WD
Does not fit: Tremor, Lightning
Raptor only: T14 fitment lists only Raptor trims
Why the FOX 3.0 Factory Series coilover
Raptor owners replacing or upgrading the factory FOX 3.0 dampers with the direct-fit Factory Series unit. This is a complete front coilover assembly for the 2017-2018 Ford F-150 2WD/4WD: FOX shock, FOX-selected coil spring and preload collar, ready to bolt in place of the factory strut. The reservoir adds oil and nitrogen capacity for long high-speed sections. Fully rebuildable and re-valvable.
At a glance
| Position | Front |
|---|---|
| Quantity | Two coilovers (pair) |
| Body diameter | 3.0 in |
| Shaft | 7/8 in hard chrome plated |
| Architecture | Remote reservoir coilover |
| Adjustment | Damping factory tuned; ride height set by spring preload collar |
| Ride height | Adjustable (see FOX instructions) |
| Coil spring | Included, rate selected by FOX for this vehicle |
| Warranty | Limited one-year warranty (FOX Factory Series, Performance Elite, 3.0 and Live Valve products) |

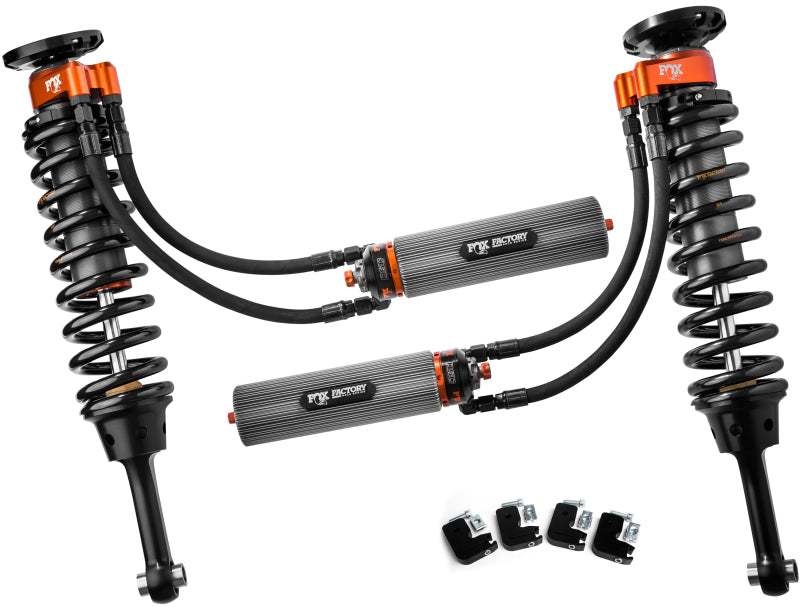

What is in the box
- Two coilovers (pair) with coil spring, preload collar and spring hardware installed
- FOX installation instructions (also at tech.ridefox.com)
- Reservoirs and hose, assembled and charged
Manufacturer part number 883-06-140. Designed and built by FOX Factory.
Questions
Does this level my truck?
Yes. Setting the preload collar higher raises the front end within the range shown; most owners set 1.5 to 2 in to level the factory rake. Above about 2 in FOX and most alignment shops recommend aftermarket upper control arms to keep camber and ball joint angle in range.
Do I need an alignment?
Yes. Any change in front ride height changes camber and toe; align the truck after install and again after the springs settle.
Do I need two?
FOX prices this as a pair; one order covers both sides.
Will it fit with my rear shocks?
Pair it with the matching FOX rear shock for the same lift range so front and rear damping are tuned together.
Is it rebuildable?
Yes. FOX Factory and authorized service centers rebuild, re-charge and re-valve every FOX truck coilover.
What is the warranty?
Limited one-year warranty (FOX Factory Series, Performance Elite, 3.0 and Live Valve products). Warranty is to the original retail purchaser through the place of purchase; keep your Hannah Suspension order confirmation.
FOX truck shock lines
| Line | Body | Architecture | Adjuster | Warranty |
|---|---|---|---|---|
| 2.0 Performance Series | 2.0 in | IFP or remote reservoir | None (CD on select R/R) | Lifetime (IFP) / 1 yr (R/R) |
| 2.5 Performance Series | 2.5 in | IFP, HTO on select | None | Lifetime |
| 2.5 Performance Elite | 2.5 in | Reservoir | DSC dual speed | 1 year |
| 2.5 Factory Series | 2.5 in | Reservoir | DSC where fitted | 1 year |
| 3.0 Factory Race / Series | 3.0 in | Reservoir, internal bypass | None | 1 year |
| 3.2 Factory Race Live Valve | 3.2 in | Reservoir, Live Valve | Electronic | 1 year |
About FOX
FOX Factory has built race-winning dampers since 1974 and supplies factory suspension to Ford, Ram, GM and Toyota off-road trims. Every FOX truck shock is aluminum-bodied, fully serviceable and tuned for the specific vehicle. Limited one-year warranty (FOX Factory Series, Performance Elite, 3.0 and Live Valve products). Hannah Suspension ships genuine FOX parts with full factory warranty; keep your order confirmation, FOX warranties run to the original purchaser.
