ICON 3.0 Series VS RR Front Coilover Kit | 2010-2014 Ford F-150 Raptor 4WD | Adjustable Lift | 95000L
$1,765.29
Skip to product information
ICON 3.0 Series VS RR Front Coilover Kit | 2010-2014 Ford F-150 Raptor 4WD | Adjustable Lift | 95000L
$1,765.29
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2010-2014 Ford F-150 Raptor 4WD
Raptor models only
From ICON

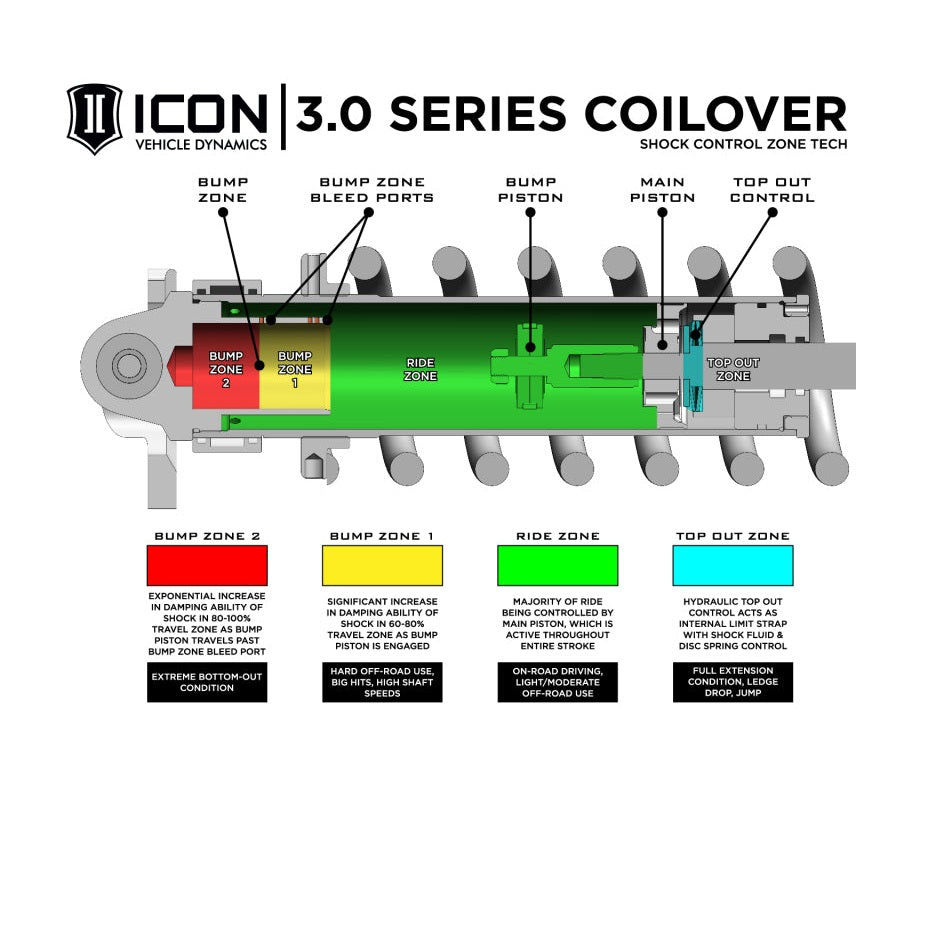

The engineers at ICON Vehicle Dynamics took a different approach to position sensitive performance in our 3.0 front coil over shock. Instead of bypassing a small internal piston at the cost of poor control, road holding, and cornering like a traditional internal position sensitive shock, our shock starts with a true 3" main piston that has robust features such as digressive rebound and flutter stack compression. This combination produces outstanding control, great response, and unparalleled ride performance. To achieve even more control for extreme off-road use, we added an additional internal hydraulic system (much like an external mounted hydraulic bumpstop) that produces the extreme forces required during the last 40% of travel to achieve maximum bottom out control. These multiple stages of compression and rebound have been tuned independently to maximize overall performance of the Ford SVT Raptor front suspension. For owners who wish to optimize the ride specific to his or her liking, the front coil-over shocks are equipped with an external, "Easy to Adjust" Compression Damping Control Valve, that is effective for the entire stroke of the shock. This compression adjustment valve offers you 10 high resolution settings, each bringing a true feel difference from soft to firm.
Why this 3.0 Series VS RR Front Coilover Kit

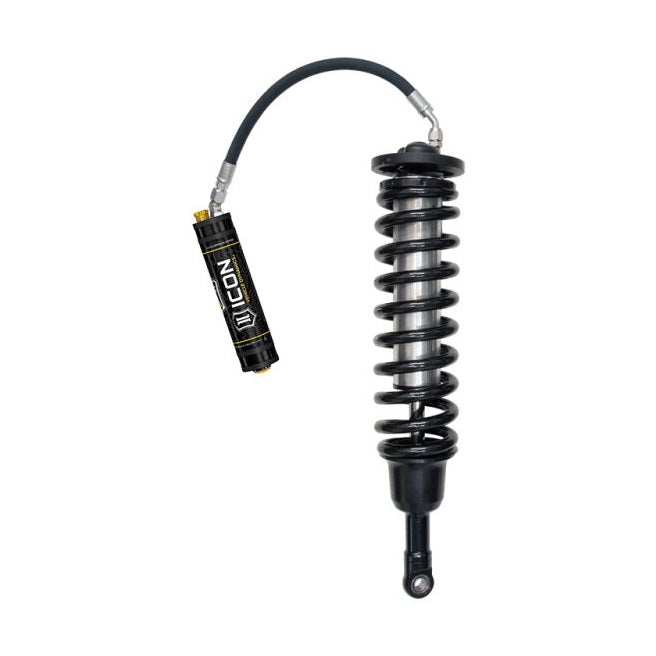

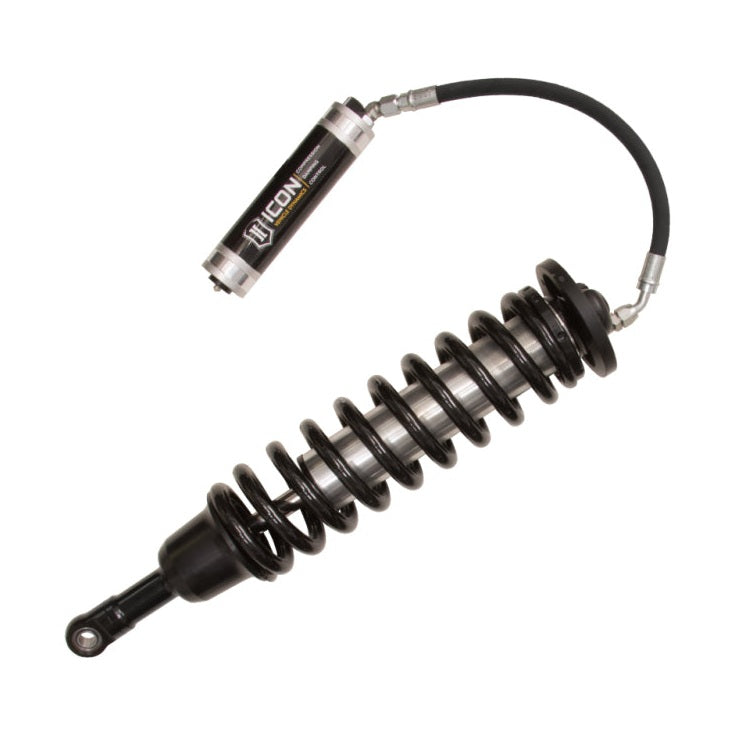

ICON 3.0 Series coilovers replace the factory strut with a threaded-body, vehicle-specific unit for the 2010-2014 Ford F-150 Raptor. Ride height is set on the spring collar within the listed range, and damping is valved for this truck rather than a generic length.
At a glance
| Shock body | 3.0 in 6061 aluminum body |
|---|---|
| Reservoir | Remote reservoir |
| Position | Front |
| Lift | Adjustable Lift |
| Rebuildable | Yes, ICON factory shock service available |
| Warranty | 12 months against manufacturing defects (shocks and coilovers) |
| Installation | Professional installation required by ICON |
| Availability | Stocked at the distributor, ships in 1-3 business days |
Before you order
- Alignment required after installation
- ICON requires installation by a professional shop; failures from improper installation are not covered
- Manufacturer part number 95000L. Designed and built by ICON Vehicle Dynamics in Riverside, California.
Questions
IR, RR, PB: what is the difference?
IR is an internal reservoir, a self-contained monotube body. RR is a remote reservoir connected by hose and PB is a piggyback reservoir bolted to the body; both add oil volume and cooling so damping stays consistent on long rough sections. IR is lighter and simpler; RR and PB resist fade.
CDCV, CDEV, CDXS: which adjuster?
CDCV is a 10-position manual compression knob. CDEV is an electronic compression valve controlled by the ICON Intelligent Control module and phone app, which reads speed and terrain and adjusts on the fly; it requires the IIC install kit. CDXS is a manual dual-circuit adjuster with 10 marked detents each for compression and rebound. Shocks without a code run ICON's fixed vehicle-specific valving.
Can these be serviced?
Yes. Every ICON shock and coilover is rebuildable and revalveable through ICON factory shock service. The shock warranty is 12 months against manufacturing defects.
Do I need an alignment?
Yes. Any change to front ride height requires a four-wheel alignment after installation.
Do I need upper control arms?
ICON recommends aftermarket upper control arms once front lift exceeds roughly 2 in on independent-front-suspension trucks, to restore alignment range and ball joint angle. The Stage 2 and higher systems for this truck include them.
Who installs it?
ICON requires professional installation and does not cover failures caused by improper installation. Plan on a shop with a lift and an alignment rack for anything that changes ride height.
ICON shock lines
| Line | Reservoir | Adjuster | Best for |
|---|---|---|---|
| 2.0 Aluminum Series | IR or RR | Fixed VS valving | Stock to moderate lift, daily driving |
| 2.5 Series VS | IR, RR or PB | None, CDCV, CDEV or CDXS | Lifted trucks driven off-road |
| 3.0 Series VS | RR | CDCV, CDEV or CDXS | Heavy trucks and high-speed off-road |
| 3.0 Zeta RXT | Bypass | External bypass tubes | Raptor rear, desert use |
About ICON Vehicle Dynamics
ICON designs and builds its shocks, coilovers, control arms and suspension systems in Riverside, California, with a lifetime warranty on components, springs and weldments and 12 months on shocks. Hannah Suspension ships genuine ICON parts through an authorized distributor with full factory warranty.
