ICON Radius Arm System | 2023-2024 Ford F-250/F-350 Super Duty 4WD | 64042
$1,700.35
Skip to product information
ICON Radius Arm System | 2023-2024 Ford F-250/F-350 Super Duty 4WD | 64042
$1,700.35
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2023-2024 Ford F-250/F-350 Super Duty 4WD
Does not fit: Tremor, Factory lift packages
From ICON

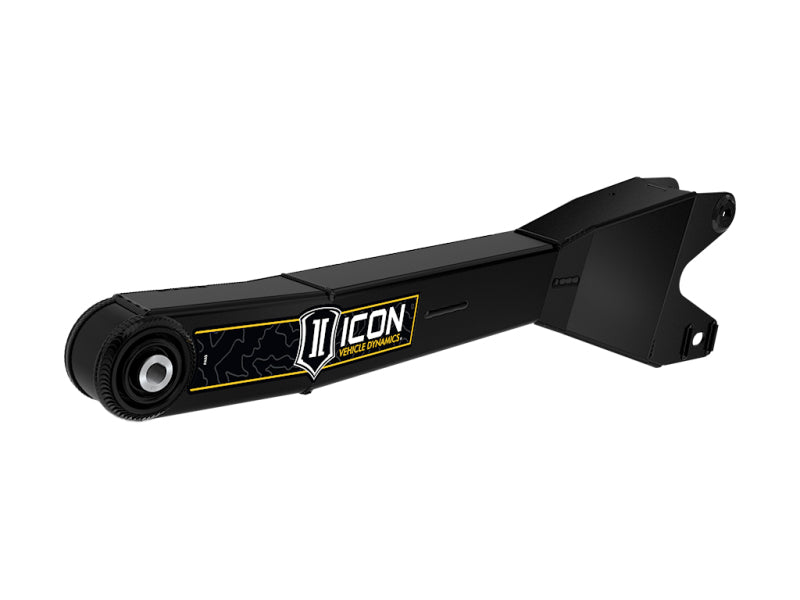

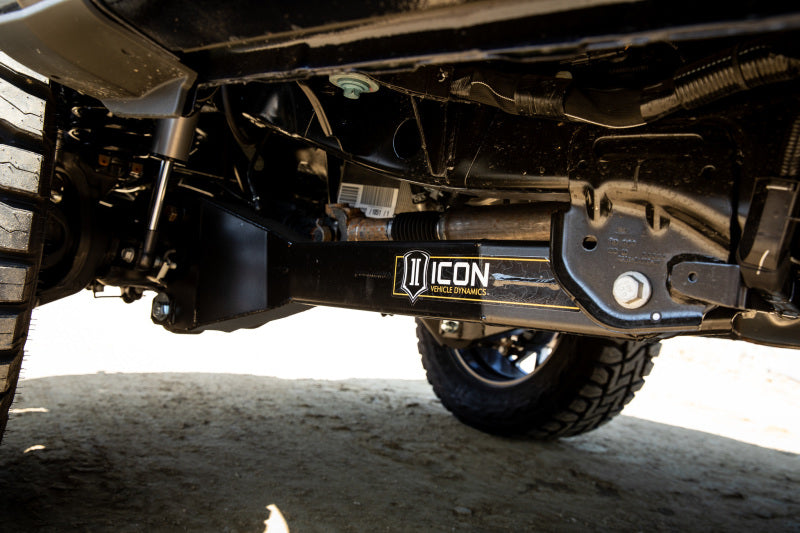

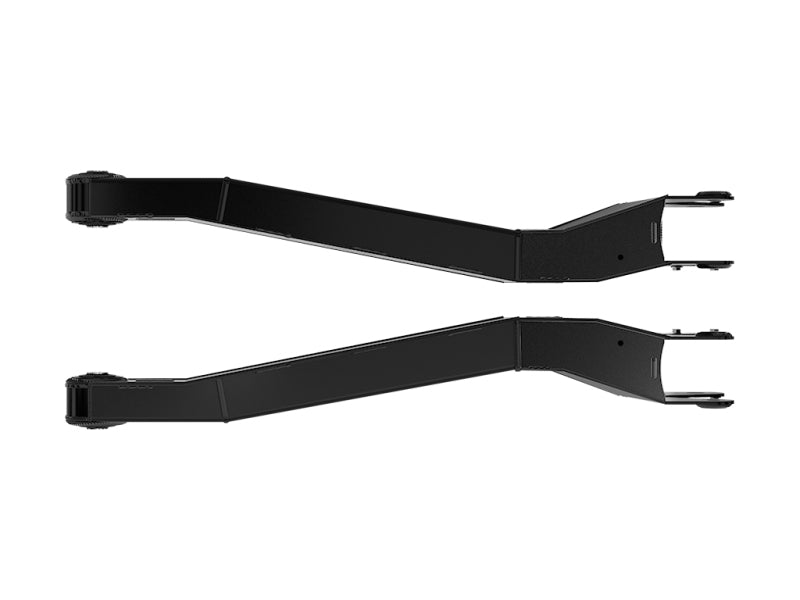

The ICON Vehicle Dynamics Ford 2023-2024 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3" of front lift with the radius arm installed in the factory pivot, eliminating the need for caster bushings. For taller lift heights from 4-5.5" of front lift, these radius arms can be installed in the factory pivots along with caster bushings to elimiate the need for radius arm drop brackets and improve ground clearance.They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37" tall tire clear without coming in contact with the radius arm.
Why this Radius Arm System
When a truck is lifted, its track bar, radius arms and links no longer sit at factory angles. ICON's geometry components recenter the axle and restore caster so the truck tracks straight.
At a glance
| Position | Front |
|---|---|
| Warranty | Lifetime on components, springs and weldments |
| Installation | Professional installation required by ICON |
| Availability | Built to order by ICON; lead time confirmed at order |
Before you order
- Alignment required after installation
- ICON requires installation by a professional shop; failures from improper installation are not covered
- Manufacturer part number 64042. Designed and built by ICON Vehicle Dynamics in Riverside, California.
Questions
Is this part specific to an ICON system?
Most ICON hardware is designed around ICON components. Check the lift height and system reference in the title and ICON's description before ordering for a non-ICON setup.
Who installs it?
ICON requires professional installation and does not cover failures caused by improper installation. Plan on a shop with a lift and an alignment rack for anything that changes ride height.
Why is this special order?
ICON builds most systems and shocks to order in Riverside, California. We confirm ICON's current lead time with you before the order is placed and you can cancel before it ships.
About ICON Vehicle Dynamics
ICON designs and builds its shocks, coilovers, control arms and suspension systems in Riverside, California, with a lifetime warranty on components, springs and weldments and 12 months on shocks. Hannah Suspension ships genuine ICON parts through an authorized distributor with full factory warranty.
