ICON 2.5 Series VS IR Front Coilover Kit | 2021-2026 Ford F-150 4WD | 3 in Lift | 91724
$1,819.95
Skip to product information
ICON 2.5 Series VS IR Front Coilover Kit | 2021-2026 Ford F-150 4WD | 3 in Lift | 91724
$1,819.95
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2021-2026 Ford F-150 4WD
Does not fit: Raptor, Tremor, Lightning
From ICON

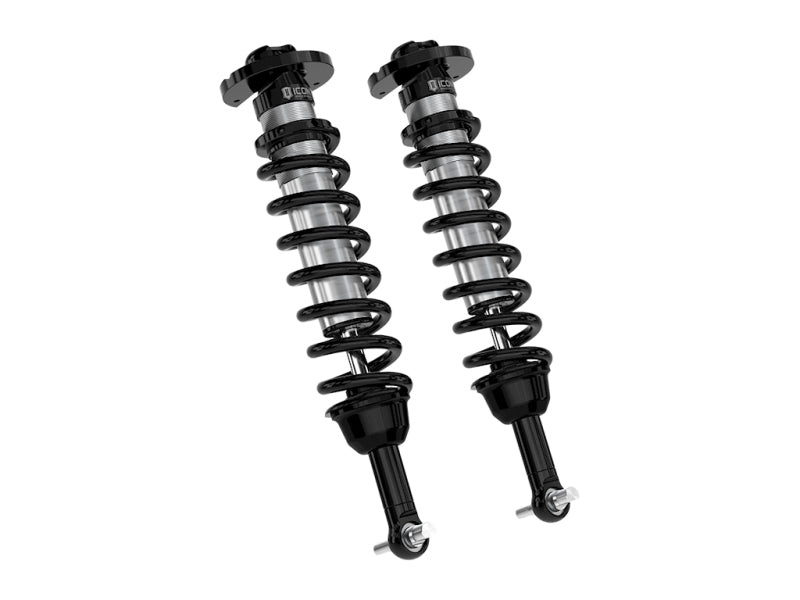

ICON Vehicle Dynamics V.S. Series 2.5" coilover shocks are an incredible upgrade for the front end of 2021-2025 Ford F-150 4WD trucks. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5" of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
Why this 2.5 Series VS IR Front Coilover Kit

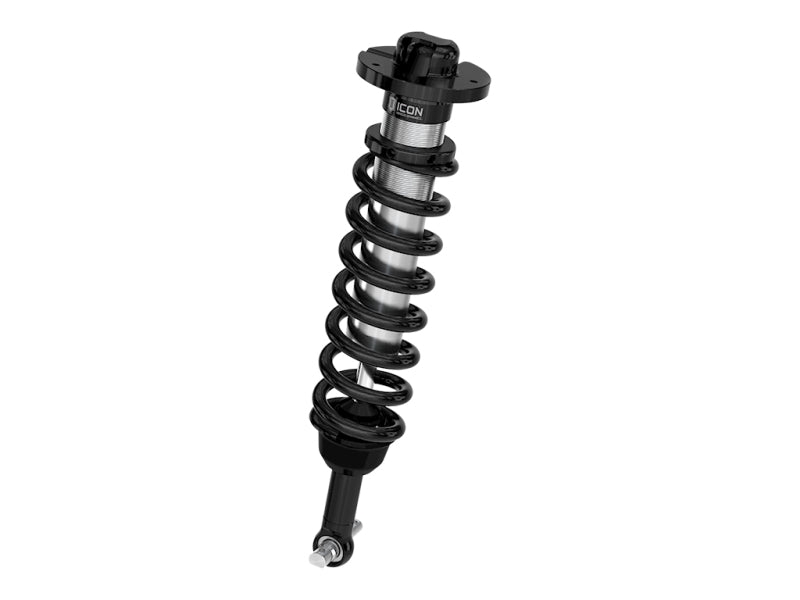

ICON 2.5 Series coilovers replace the factory strut with a threaded-body, vehicle-specific unit for the 2021-2026 Ford F-150. Ride height is set on the spring collar within the listed range, and damping is valved for this truck rather than a generic length.
At a glance
| Shock body | 2.5 in 6061 aluminum body |
|---|---|
| Reservoir | Internal reservoir |
| Position | Front |
| Lift | 3 in Lift |
| Rebuildable | Yes, ICON factory shock service available |
| Warranty | 12 months against manufacturing defects (shocks and coilovers) |
| Installation | Professional installation required by ICON |
| Availability | Stocked at the distributor, ships in 1-3 business days |
Before you order
- Alignment required after installation
- ICON upper control arms recommended above 2 in of front lift
- ICON requires installation by a professional shop; failures from improper installation are not covered
- Manufacturer part number 91724. Designed and built by ICON Vehicle Dynamics in Riverside, California.
Questions
IR, RR, PB: what is the difference?
IR is an internal reservoir, a self-contained monotube body. RR is a remote reservoir connected by hose and PB is a piggyback reservoir bolted to the body; both add oil volume and cooling so damping stays consistent on long rough sections. IR is lighter and simpler; RR and PB resist fade.
CDCV, CDEV, CDXS: which adjuster?
CDCV is a 10-position manual compression knob. CDEV is an electronic compression valve controlled by the ICON Intelligent Control module and phone app, which reads speed and terrain and adjusts on the fly; it requires the IIC install kit. CDXS is a manual dual-circuit adjuster with 10 marked detents each for compression and rebound. Shocks without a code run ICON's fixed vehicle-specific valving.
Can these be serviced?
Yes. Every ICON shock and coilover is rebuildable and revalveable through ICON factory shock service. The shock warranty is 12 months against manufacturing defects.
Do I need an alignment?
Yes. Any change to front ride height requires a four-wheel alignment after installation.
Do I need upper control arms?

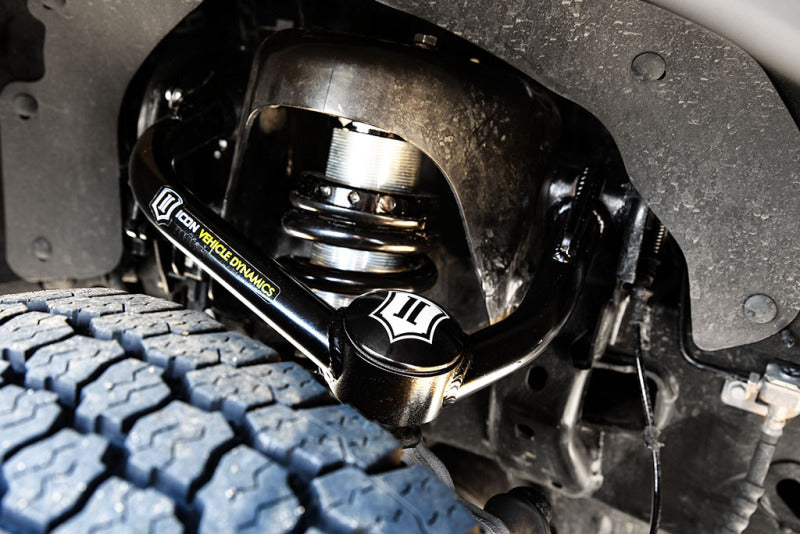

ICON recommends aftermarket upper control arms once front lift exceeds roughly 2 in on independent-front-suspension trucks, to restore alignment range and ball joint angle. The Stage 2 and higher systems for this truck include them.
Who installs it?
ICON requires professional installation and does not cover failures caused by improper installation. Plan on a shop with a lift and an alignment rack for anything that changes ride height.
ICON shock lines
| Line | Reservoir | Adjuster | Best for |
|---|---|---|---|
| 2.0 Aluminum Series | IR or RR | Fixed VS valving | Stock to moderate lift, daily driving |
| 2.5 Series VS | IR, RR or PB | None, CDCV, CDEV or CDXS | Lifted trucks driven off-road |
| 3.0 Series VS | RR | CDCV, CDEV or CDXS | Heavy trucks and high-speed off-road |
| 3.0 Zeta RXT | Bypass | External bypass tubes | Raptor rear, desert use |
About ICON Vehicle Dynamics
ICON designs and builds its shocks, coilovers, control arms and suspension systems in Riverside, California, with a lifetime warranty on components, springs and weldments and 12 months on shocks. Hannah Suspension ships genuine ICON parts through an authorized distributor with full factory warranty.
