ICON Rear Bump Stop Kit | 2021-2026 Ram 1500 2WD/4WD | 2.5 in Spacer | 211020
$1,449.65
Skip to product information
ICON Rear Bump Stop Kit | 2021-2026 Ram 1500 2WD/4WD | 2.5 in Spacer | 211020
$1,449.65
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2021-2026 Ram 1500 2WD/4WD
Does not fit: Rebel (front parts), Factory air ride
T14 fitment includes TRX trim
From ICON

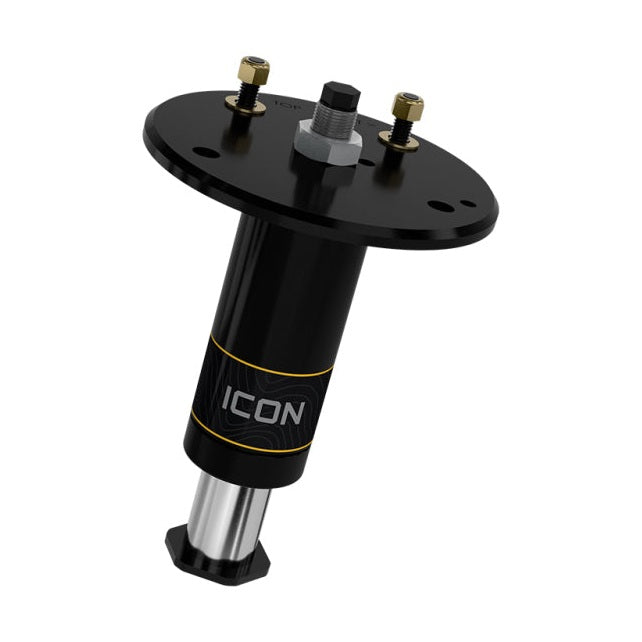

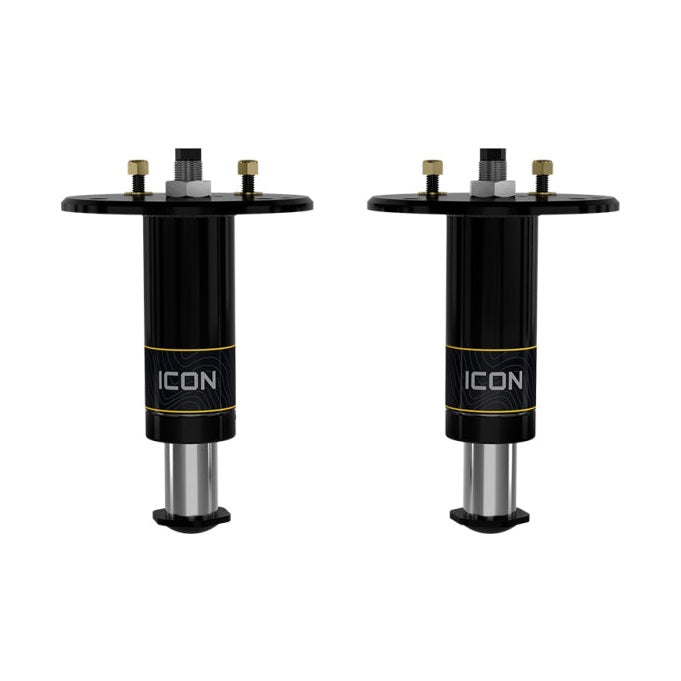

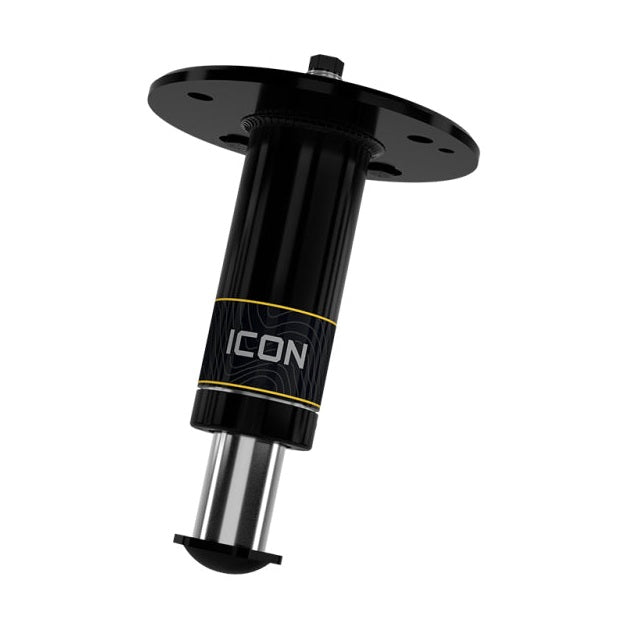

While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2021-2024 Ram 1500 TRX and 2025-2026 Ram 1500 RHO Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the damping force increases exponentially to provide excellent bottoming resistance that won't negatively affect articulation. This system features 2.5" diameter, one-piece impact extruded and hard anodized aluminum bump stop bodies with an internal reservoir design for improved damping and more consistent, predicable performance than 2.0" diameter, emulsion style bump stops. To compliment the larger body diameter, these bump stops also incorporate heavy duty 1.625" diameter hardened chrome plated shafts.
Why this Rear Bump Stop Kit
Bump stops define where the suspension stops. ICON spacer and hydraulic bump stop kits reset that point after a lift or add progressive damping in the last inches of travel.
At a glance
| Shock body | 2.5 in 6061 aluminum body |
|---|---|
| Position | Rear |
| Lift | 2.5 in Spacer |
| Warranty | Lifetime on components, springs and weldments |
| Installation | Professional installation required by ICON |
| Availability | Built to order by ICON; lead time confirmed at order |
Before you order
- ICON requires installation by a professional shop; failures from improper installation are not covered
- Manufacturer part number 211020. Designed and built by ICON Vehicle Dynamics in Riverside, California.
Questions
Is this part specific to an ICON system?
Most ICON hardware is designed around ICON components. Check the lift height and system reference in the title and ICON's description before ordering for a non-ICON setup.
Who installs it?
ICON requires professional installation and does not cover failures caused by improper installation. Plan on a shop with a lift and an alignment rack for anything that changes ride height.
Why is this special order?
ICON builds most systems and shocks to order in Riverside, California. We confirm ICON's current lead time with you before the order is placed and you can cancel before it ships.
About ICON Vehicle Dynamics
ICON designs and builds its shocks, coilovers, control arms and suspension systems in Riverside, California, with a lifetime warranty on components, springs and weldments and 12 months on shocks. Hannah Suspension ships genuine ICON parts through an authorized distributor with full factory warranty.
