Bilstein 5100 Front & Rear Shock Kit + Steering Damper | 2008-2016 Ford F-250/F-350 Super Duty 4WD | 0-2 in Front Lift
Sale price
$613.00
Regular price $856.25
Skip to product information
Bilstein 5100 Front & Rear Shock Kit + Steering Damper | 2008-2016 Ford F-250/F-350 Super Duty 4WD | 0-2 in Front Lift
Sale price
$613.00
Regular price $856.25
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2008-2016 Ford F-250/F-350 Super Duty 4WD, stock height through 2 in of front leveling lift, 0 to 1 in rear lift
Does not fit: 2WD trucks, 2005-2007 trucks (different steering damper, see the four-shock kit), factory lift packages, trucks lifted more than 2 in front
Why this kit
The complete Bilstein 5100 refresh for a 2008-2016 Super Duty: all four shocks plus the steering damper, part numbers already matched. The 24-186018 fronts cover 0 to 2 in of front lift, the 24-186025 rears cover 0 to 1 in of rear lift, and the 24-196284 damper replaces the factory steering stabilizer that is usually worn out by the time the shocks are. Every piece is a 46mm Bilstein monotube with digressive valving and a limited lifetime warranty.
At a glance
| Kit contents | 2 front shocks + 2 rear shocks + 1 steering damper |
|---|---|
| Front | Bilstein 5100 24-186018, for 0 to 2 in front lift |
| Rear | Bilstein 5100 24-186025, for 0 to 1 in rear lift |
| Steering | Bilstein 5100 damper 24-196284, one per truck |
| Design | Monotube, 46mm piston, zinc plated |
| Drivetrain | 4WD |
| Warranty | Limited lifetime (Bilstein North America) |
What is in the box
- 2 x Bilstein 5100 front shock, part number 24-186018

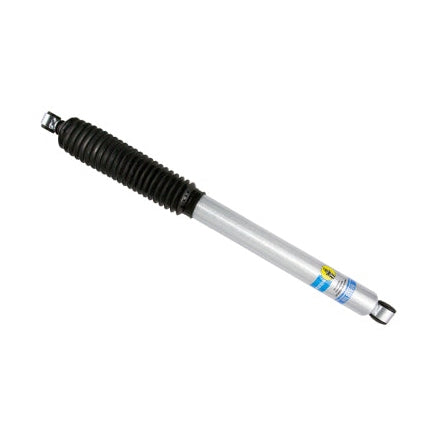

- 2 x Bilstein 5100 rear shock, part number 24-186025

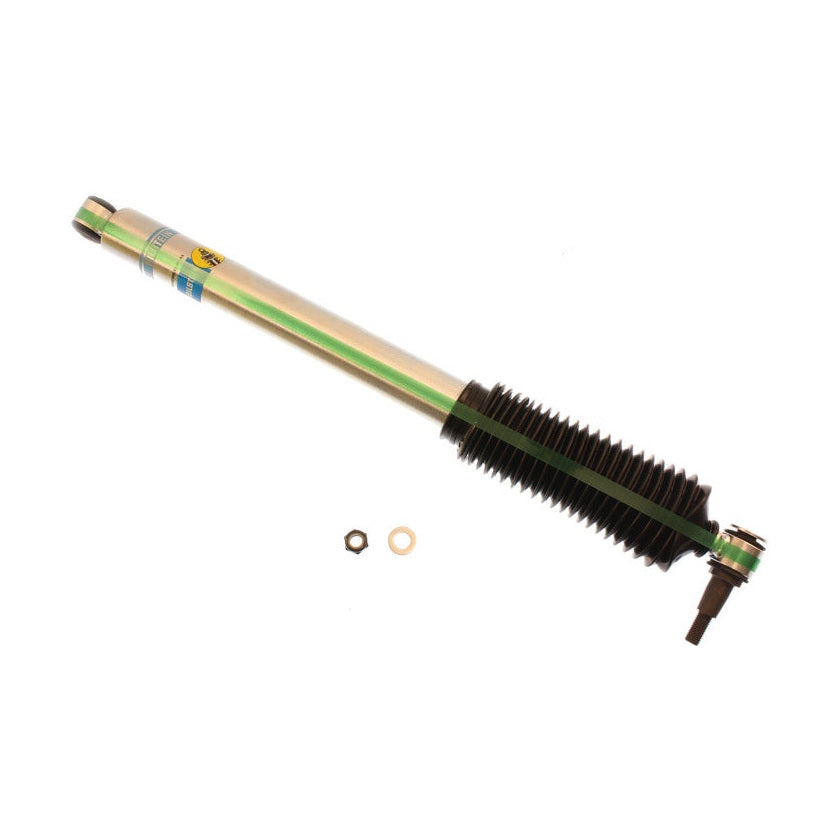

- 1 x Bilstein 5100 steering damper, part number 24-196284
- Mounting hardware as required for this application and instructions
Each part ships in its own Bilstein box. Kit price equals the sum of the five parts at manufacturer minimum advertised price.
Questions
Why add the steering damper?
On a solid front axle the steering damper controls wheel shimmy and steering kickback. Larger tires load it harder and the factory unit is a wear item, so replacing it with the shocks saves a second job later.
I have a 2005-2007 truck. Can I use this kit?
The shocks fit, but the 24-196284 damper is for 2008-2016. For 2005-2007 use the four-shock kit and add the 33-170862 damper separately.
Is this one damper or two?
One. The Super Duty uses a single factory damper and this 5100 is a direct replacement. Dual stabilizer setups require a separate bracket kit.
How long does installation take?
Rears are 20 to 30 minutes per side, fronts 30 to 45 minutes per side, damper 20 minutes. All bolt-in on the solid axle, no spring compressor needed.
What is the warranty?
Limited lifetime warranty on all five parts through Bilstein North America, processed through the original place of purchase. Keep your Hannah Suspension order confirmation.
About Bilstein
Bilstein has built monotube gas-pressure shocks since 1954 and supplies them as original equipment to Ford, GM, Ram and most European makers. Bilstein of America engineers, tests and builds its truck lines in Hamilton, Ohio and Poway, California. Hannah Suspension ships genuine Bilstein parts with full factory warranty.
