Fox 2.0 Performance Series Rear Reservoir Shock | 2001-2019 Chevy Silverado / GMC Sierra 2500HD/3500HD 2WD/4WD | 1.5-3.5 in Lift | 985-24-192
$375.95
Skip to product information
Fox 2.0 Performance Series Rear Reservoir Shock | 2001-2019 Chevy Silverado / GMC Sierra 2500HD/3500HD 2WD/4WD | 1.5-3.5 in Lift | 985-24-192
$375.95
Free shipping over $200. Lower 48, no code needed. 30-day returns.
Good to know before you buy
Fits
- 2001-2019 Chevy Silverado 2500HD/3500HD 2WD/4WD
- 2001-2019 GMC Sierra 2500HD/3500HD 2WD/4WD
Does not fit: ZR2, AT4X
Why the FOX 2.0 Performance Series
Daily-driven and leveled or lifted trucks that want a real monotube with vehicle-specific valving at the entry point of the FOX line. This rear remote reservoir shock is valved and sized by FOX for the 2001-2019 Chevy Silverado / GMC Sierra 2500HD/3500HD 2WD/4WD running 1.5 to 3.5 in of lift. The external reservoir roughly doubles the oil volume and moves the nitrogen charge out of the shock body, so the ride stays consistent on long washboard and towing grades. FOX shocks are fully rebuildable and re-valvable, so this is the last rear shock the truck needs.
At a glance
| Position | Rear |
|---|---|
| Quantity | One shock |
| Body diameter | 2.0 in |
| Shaft | 5/8 in hard chrome plated |

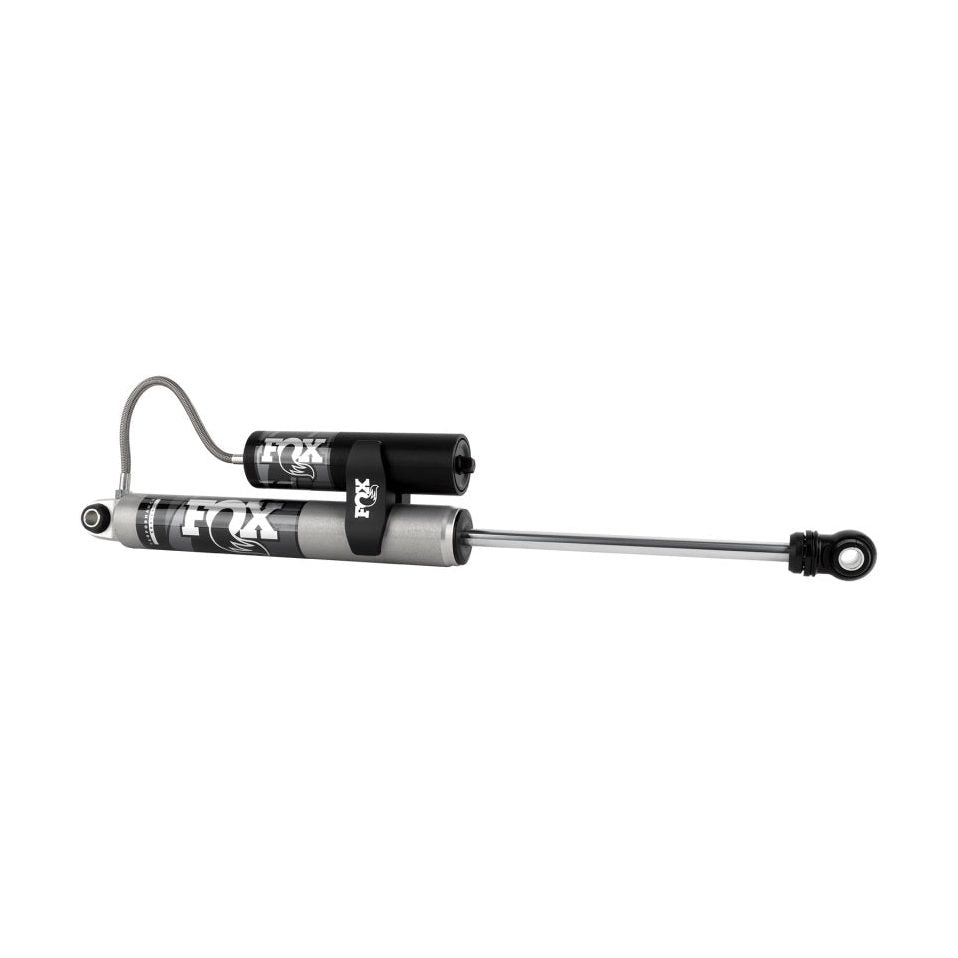

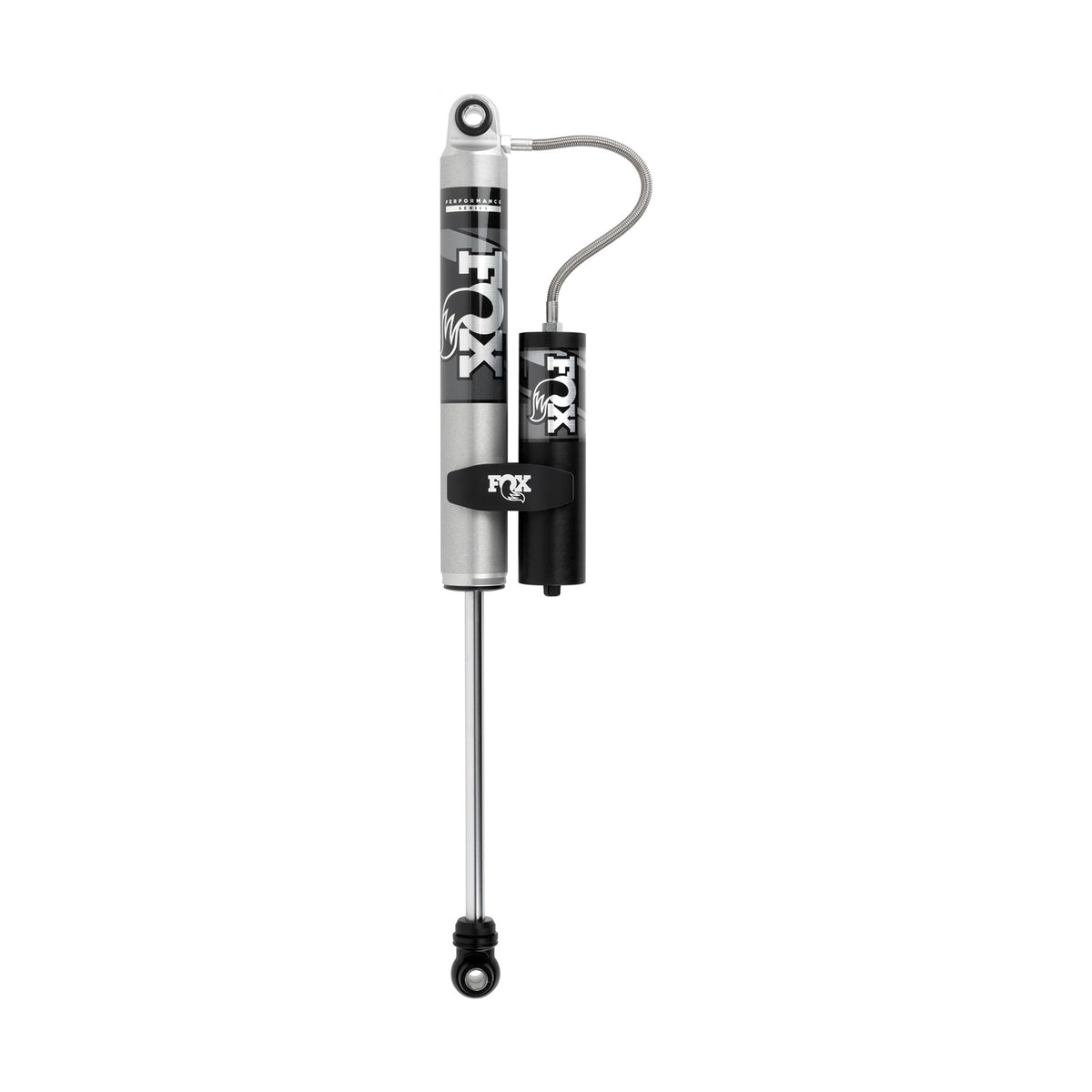

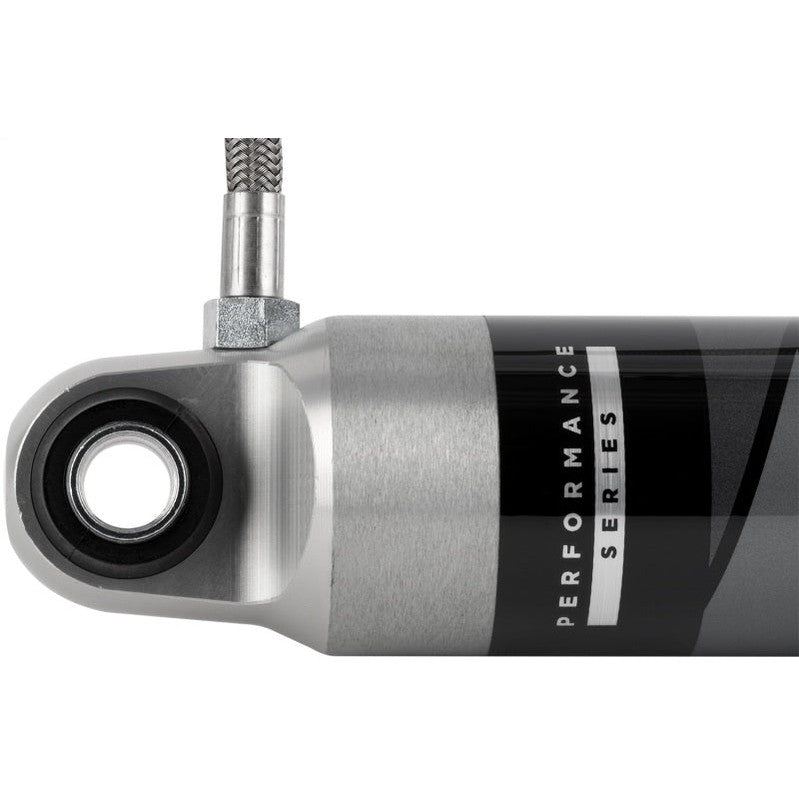

| Architecture | Monotube, remote reservoir with braided hose and billet clamp |
| Adjustment | None (factory tuned for this vehicle) |
| Lift range | For 1.5 to 3.5 in lift |
| FOX size designation | 11.1 in |
| Warranty | Limited one-year warranty (FOX excludes 2.0 Performance Series remote reservoir shocks from the lifetime program) |
What is in the box
- One shock with FOX mounting hardware where the application requires it

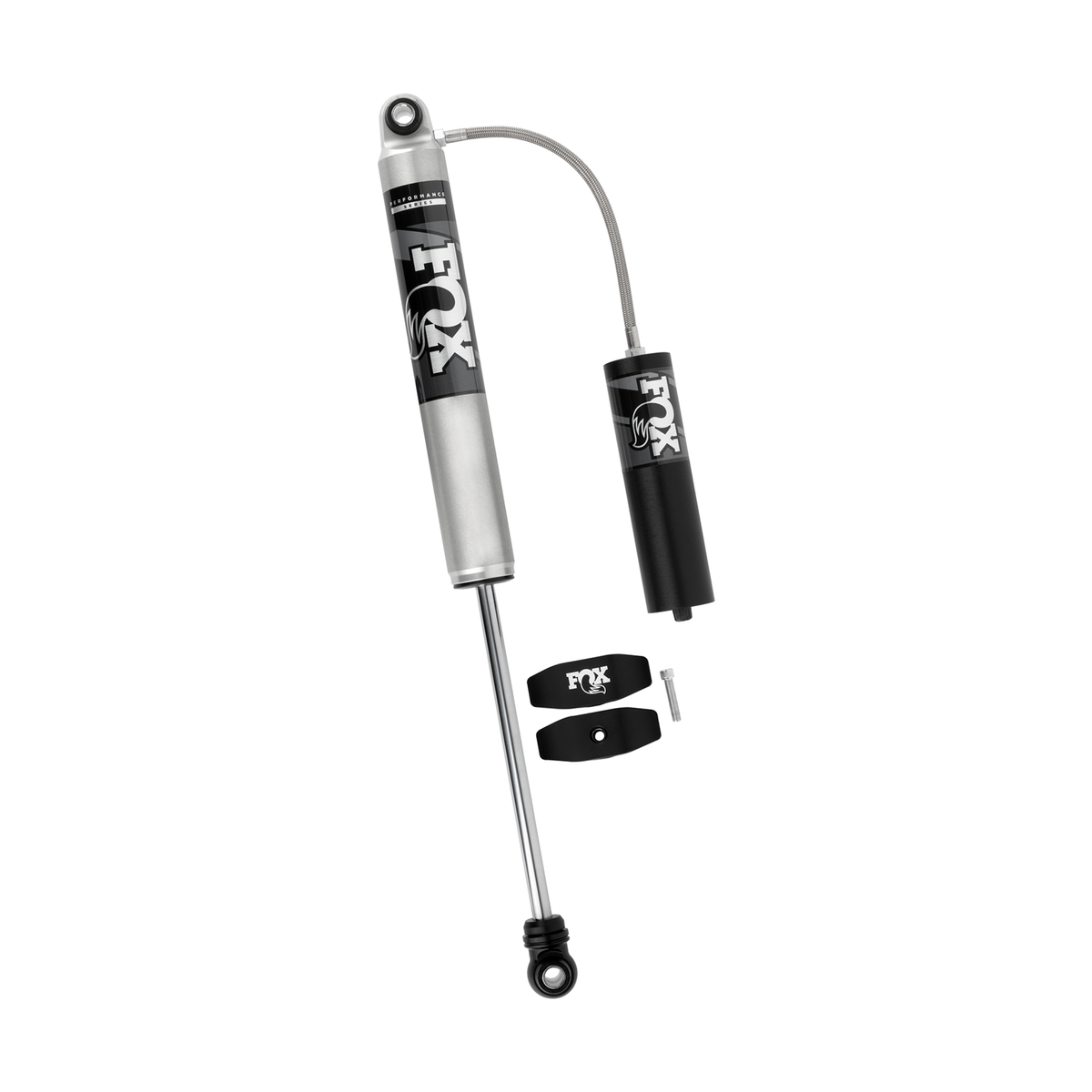

- Reservoir clamp, reservoir assembled and charged from the factory
- FOX installation instructions (also at tech.ridefox.com)
Manufacturer part number 985-24-192. Designed and built by FOX Factory.
Questions
Is this a lift?
No. It is a shock built for the lift range shown. Match the lift range to your leveling or lift kit; a shock that is too short limits droop and a shock that is too long can bottom internally.
Do I need to buy two?
This part number is one shock. Order two for a complete axle, or check our matching front or rear shock for the same lift range.
Is it rebuildable?
Yes. Every FOX truck shock can be rebuilt, re-charged and re-valved by FOX Factory or an authorized service center, so it does not become a throwaway part when the seals wear.
IFP or remote reservoir?
The IFP version (985-24-190) is the lighter, simpler and lower-cost shock and carries the FOX lifetime warranty. This remote reservoir version holds more oil and nitrogen for repeated high-speed hits and heavy towing and carries a one-year warranty.
What is the warranty?
Limited one-year warranty (FOX excludes 2.0 Performance Series remote reservoir shocks from the lifetime program). Warranty is to the original retail purchaser through the place of purchase; keep your Hannah Suspension order confirmation.
FOX truck shock lines
| Line | Body | Architecture | Adjuster | Warranty |
|---|---|---|---|---|
| 2.0 Performance Series | 2.0 in | IFP or remote reservoir | None (CD on select R/R) | Lifetime (IFP) / 1 yr (R/R) |
| 2.5 Performance Series | 2.5 in | IFP, HTO on select | None | Lifetime |
| 2.5 Performance Elite | 2.5 in | Reservoir | DSC dual speed | 1 year |
| 2.5 Factory Series | 2.5 in | Reservoir | DSC where fitted | 1 year |
| 3.0 Factory Race / Series | 3.0 in | Reservoir, internal bypass | None | 1 year |
| 3.2 Factory Race Live Valve | 3.2 in | Reservoir, Live Valve | Electronic | 1 year |
About FOX
FOX Factory has built race-winning dampers since 1974 and supplies factory suspension to Ford, Ram, GM and Toyota off-road trims. Every FOX truck shock is aluminum-bodied, fully serviceable and tuned for the specific vehicle. Limited one-year warranty (FOX excludes 2.0 Performance Series remote reservoir shocks from the lifetime program). Hannah Suspension ships genuine FOX parts with full factory warranty; keep your order confirmation, FOX warranties run to the original purchaser.
